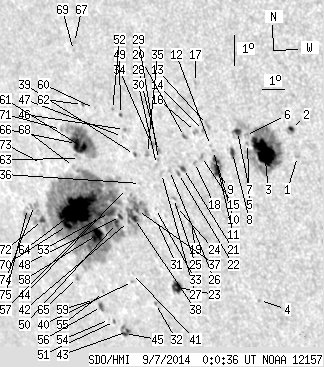

SDO HMI 2014-09-07 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 179.66 | 869.47 | 140.00 | 685.84 | -13.79 | 94.58 | -46.96 | 114.31 | 0.7797 | -127.7 | -194.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.15 | -11.70 | 102.77 | -38.77 | 115.89 | 0.6840 | 720.0 | 647.5 | |
| 1.87 | 5.09 | 1.26 | 3.43 | -10.82 | 102.68 | -38.87 | 114.65 | 0.6805 | -591.0 | -353.1 | |
| 37.12 | 113.07 | 25.63 | 78.01 | -11.65 | 101.46 | -40.09 | 115.06 | 0.6986 | 1076.4 | 362.5 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -16.56 | 100.17 | -41.37 | 120.53 | 0.7378 | -643.0 | -624.0 | |
| 0.00 | 1.16 | 0.00 | 0.81 | -11.45 | 100.80 | -40.74 | 114.44 | 0.7050 | 433.0 | 367.8 | |
| 0.00 | 1.70 | 0.00 | 1.18 | -11.20 | 100.76 | -40.78 | 114.09 | 0.7042 | 651.0 | 626.1 | |
| 2.94 | 16.78 | 2.06 | 11.69 | -11.10 | 100.45 | -41.09 | 113.80 | 0.7072 | 778.8 | 363.2 | |
| 2.32 | 4.55 | 1.64 | 3.21 | -11.79 | 100.12 | -41.42 | 114.52 | 0.7142 | 624.7 | 422.7 | |
| 5.18 | 16.06 | 3.71 | 11.51 | -12.43 | 99.33 | -42.21 | 114.93 | 0.7259 | 686.1 | 508.2 | |
| 3.12 | -9.00 | 2.23 | -9.00 | -12.11 | 99.40 | -42.15 | 114.55 | 0.7236 | 860.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.83 | -11.80 | 99.33 | -42.21 | 114.12 | 0.7229 | 610.0 | 499.2 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -11.65 | 99.24 | -42.31 | 113.87 | 0.7233 | 522.0 | 418.4 | |
| 0.00 | 3.57 | 0.00 | 2.54 | -10.98 | 99.23 | -42.31 | 113.01 | 0.7203 | 505.0 | 400.4 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -11.19 | 99.03 | -42.52 | 113.18 | 0.7235 | 626.0 | 529.4 | |
| 0.00 | 1.78 | 0.00 | 1.29 | -12.04 | 98.78 | -42.76 | 114.14 | 0.7300 | 648.0 | 491.6 | |
| 0.00 | 2.86 | 0.00 | 2.06 | -11.25 | 98.68 | -42.86 | 113.09 | 0.7276 | 556.0 | 490.1 | |
| 0.00 | 1.34 | 0.00 | 0.95 | -9.68 | 98.95 | -42.59 | 111.18 | 0.7178 | 588.0 | 523.0 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -12.26 | 98.44 | -43.11 | 114.25 | 0.7347 | 553.0 | 413.0 | |
| 0.00 | 3.03 | 0.00 | 2.26 | -14.27 | 97.86 | -43.69 | 116.45 | 0.7500 | 346.0 | 465.9 | |
| 0.00 | 2.14 | 0.00 | 1.56 | -11.46 | 98.18 | -43.37 | 113.10 | 0.7340 | 633.0 | 509.4 | |
| 1.61 | 3.66 | 1.18 | 2.69 | -12.50 | 97.92 | -43.63 | 114.29 | 0.7413 | 594.4 | 321.1 | |
| 0.45 | 1.87 | 0.33 | 1.39 | -12.68 | 97.66 | -43.88 | 114.39 | 0.7448 | 476.4 | 365.6 | |
| 7.23 | 9.82 | 5.61 | 7.62 | -16.45 | 96.65 | -44.90 | 118.45 | 0.7722 | 695.6 | 407.9 | |
| 0.00 | 1.07 | 0.00 | 0.80 | -13.77 | 97.33 | -44.22 | 115.56 | 0.7532 | 711.0 | 618.5 | |
| 0.00 | 1.70 | 0.00 | 1.27 | -13.52 | 97.26 | -44.29 | 115.22 | 0.7528 | 757.0 | 550.4 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -12.62 | 97.29 | -44.26 | 114.13 | 0.7485 | 296.0 | 250.8 | |
| 0.00 | 2.14 | 0.00 | 1.61 | -12.75 | 96.91 | -44.63 | 114.10 | 0.7530 | -183.0 | -174.8 | |
| 0.00 | 2.23 | 0.00 | 1.66 | -12.04 | 96.94 | -44.61 | 113.24 | 0.7498 | 640.0 | 523.3 | |
| 0.00 | 1.25 | 0.00 | 0.93 | -12.30 | 96.88 | -44.67 | 113.54 | 0.7515 | 158.0 | 132.6 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -12.47 | 96.75 | -44.79 | 113.69 | 0.7535 | -224.0 | -182.3 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -14.31 | 96.31 | -45.24 | 115.72 | 0.7659 | 330.0 | 251.3 | |
| 0.00 | 1.07 | 0.00 | 0.85 | -17.09 | 95.45 | -46.09 | 118.59 | 0.7865 | 559.0 | 523.3 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -13.92 | 96.37 | -45.18 | 115.27 | 0.7637 | 390.0 | 419.0 | |
| 0.00 | 1.87 | 0.00 | 1.40 | -11.81 | 96.68 | -44.87 | 112.83 | 0.7515 | 705.0 | 580.8 | |
| 0.00 | 2.86 | 0.00 | 2.15 | -12.15 | 96.43 | -45.11 | 113.14 | 0.7555 | 435.0 | 247.5 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -13.16 | 95.89 | -45.66 | 114.12 | 0.7653 | -502.0 | -538.3 | |
| 0.98 | 533.29 | 0.76 | 434.82 | -14.06 | 95.52 | -46.02 | 115.04 | 0.7727 | 601.7 | -318.3 | |
| 2.41 | -37.00 | 1.88 | -37.00 | -14.34 | 95.32 | -46.23 | 115.28 | 0.7760 | 721.7 | 999999 | |
| 0.54 | 1.52 | 0.41 | 1.16 | -12.24 | 95.84 | -45.71 | 112.97 | 0.7621 | 321.5 | 240.0 | |
| 0.00 | 1.25 | 0.00 | 1.01 | -16.45 | 94.60 | -46.94 | 117.43 | 0.7918 | -8.0 | 78.9 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -16.18 | 94.69 | -46.86 | 117.15 | 0.7898 | 321.0 | 243.3 | |
| 0.54 | -37.00 | 0.42 | -37.00 | -14.46 | 95.01 | -46.54 | 115.28 | 0.7795 | 394.3 | 999999 | |
| 1.52 | 7.85 | 1.26 | 6.56 | -18.17 | 93.77 | -47.77 | 119.01 | 0.8066 | -731.5 | -565.3 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -13.39 | 95.20 | -46.34 | 114.08 | 0.7732 | -631.0 | -575.1 | |
| 1.52 | -43.00 | 1.27 | -43.00 | -18.26 | 93.60 | -47.94 | 119.02 | 0.8085 | -510.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.95 | -11.47 | 95.56 | -45.99 | 111.90 | 0.7619 | 573.0 | 439.9 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -11.71 | 95.42 | -46.13 | 112.13 | 0.7643 | 284.0 | 231.8 | |
| 1.70 | -37.00 | 1.34 | -37.00 | -14.34 | 94.68 | -46.87 | 114.97 | 0.7822 | 282.9 | 999999 | |
| 0.62 | 1.43 | 0.48 | 1.09 | -11.01 | 95.48 | -46.07 | 111.29 | 0.7609 | 354.4 | 264.1 | |
| 2.77 | -37.00 | 2.20 | -37.00 | -14.59 | 94.42 | -47.12 | 115.15 | 0.7857 | 516.2 | 999999 | |
| 0.45 | 1.43 | 0.38 | 1.20 | -17.89 | 93.26 | -48.29 | 118.44 | 0.8101 | -469.8 | -424.1 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -10.88 | 95.15 | -46.40 | 110.99 | 0.7639 | 381.0 | 281.8 | |
| 5.62 | -37.00 | 4.49 | -37.00 | -14.25 | 94.20 | -47.35 | 114.65 | 0.7866 | -440.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -17.85 | 93.03 | -48.51 | 118.29 | 0.8119 | -306.0 | -355.0 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -16.96 | 93.06 | -48.48 | 117.29 | 0.8081 | -706.0 | -631.8 | |
| 2.05 | 3.84 | 1.74 | 3.24 | -17.45 | 92.79 | -48.75 | 117.72 | 0.8124 | -735.2 | -535.3 | |
| 1.96 | -37.00 | 1.59 | -37.00 | -14.36 | 93.70 | -47.85 | 114.56 | 0.7919 | -887.0 | 999999 | |
| 11.15 | -37.00 | 9.12 | -37.00 | -15.04 | 93.41 | -48.14 | 115.22 | 0.7973 | 331.0 | 999999 | |
| 0.00 | 2.68 | 0.00 | 2.27 | -17.24 | 92.53 | -49.02 | 117.37 | 0.8140 | -695.0 | -537.6 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -10.92 | 94.33 | -47.22 | 110.70 | 0.7726 | -529.0 | -443.6 | |
| 6.43 | 59.52 | 5.13 | 47.43 | -12.24 | 93.47 | -48.07 | 111.94 | 0.7861 | -1017.8 | -579.7 | |
| 0.45 | 1.16 | 0.35 | 0.91 | -10.85 | 93.79 | -47.75 | 110.38 | 0.7778 | -571.2 | -493.7 | |
| 0.00 | 1.16 | 0.00 | 0.93 | -12.62 | 93.24 | -48.31 | 112.29 | 0.7898 | -740.0 | -596.0 | |
| 61.49 | -37.00 | 50.67 | -37.00 | -14.30 | 92.68 | -48.87 | 114.04 | 0.8014 | -1099.6 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.75 | -16.58 | 91.94 | -49.61 | 116.35 | 0.8168 | -226.0 | -250.9 | |
| 8.39 | -61.00 | 6.73 | -61.00 | -12.14 | 93.22 | -48.33 | 111.71 | 0.7882 | -705.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.18 | -8.90 | 93.81 | -47.74 | 107.99 | 0.7710 | -274.0 | -342.1 | |
| 0.00 | 1.25 | 0.00 | 1.01 | -12.91 | 92.88 | -48.66 | 112.48 | 0.7943 | -553.0 | -455.1 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -9.16 | 93.72 | -47.83 | 108.27 | 0.7728 | -546.0 | -382.5 | |
| 4.55 | -37.00 | 3.82 | -37.00 | -14.88 | 92.02 | -49.52 | 114.44 | 0.8097 | -738.8 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.16 | -11.76 | 92.61 | -48.94 | 111.00 | 0.7929 | -553.0 | -427.4 | |
| 2.68 | 22.04 | 2.31 | 19.12 | -14.84 | 90.81 | -50.74 | 113.89 | 0.8207 | -493.4 | -52.3 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -12.96 | 91.33 | -50.21 | 111.92 | 0.8094 | -252.0 | -193.0 | |
| 0.00 | 4.82 | 0.00 | 4.16 | -14.39 | 90.56 | -50.99 | 113.26 | 0.8214 | -460.0 | -395.0 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -14.52 | 90.16 | -51.38 | 113.26 | 0.8254 | -165.0 | -113.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
