SDO HMI 2014-09-07 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.18 | 674.53 | 106.64 | 563.83 | 15.06 | 86.62 | -54.38 | 76.60 | 0.8090 | 219.4 | -67.0 | |
|
previous
or next observation for the same group /

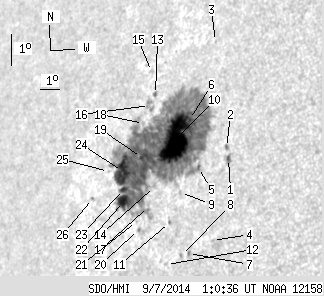

back to the solar disc SDO HMI 2014-09-07 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 3.66 | 1.04 | 2.84 | 15.29 | 90.23 | -50.76 | 76.13 | 0.7718 | -583.3 | -456.0 | |
| 0.45 | 1.96 | 0.35 | 1.53 | 15.61 | 90.02 | -50.97 | 75.73 | 0.7743 | 480.8 | 401.4 | |
| 0.00 | 0.54 | 0.00 | 0.44 | 18.74 | 88.22 | -52.77 | 71.91 | 0.7954 | 565.0 | 499.3 | |
| 0.00 | 0.80 | 0.00 | 0.62 | 12.76 | 90.21 | -50.78 | 79.42 | 0.7710 | -508.0 | -390.8 | |
| 0.89 | 640.90 | 0.71 | 535.93 | 14.88 | 88.86 | -52.14 | 76.74 | 0.7862 | 515.2 | -63.8 | |
| 0.80 | -5.00 | 0.65 | -5.00 | 16.27 | 87.88 | -53.11 | 75.04 | 0.7970 | 1097.8 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.55 | 12.26 | 89.16 | -51.84 | 80.08 | 0.7823 | -672.0 | -509.0 | |
| 0.00 | 1.52 | 0.00 | 1.21 | 12.17 | 88.83 | -52.17 | 80.20 | 0.7857 | -309.0 | -390.0 | |
| 0.00 | 1.52 | 0.00 | 1.23 | 14.04 | 88.21 | -52.79 | 77.83 | 0.7926 | 208.0 | 136.5 | |
| 79.79 | -5.00 | 65.75 | -5.00 | 15.60 | 87.40 | -53.60 | 75.91 | 0.8015 | 950.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.87 | 13.09 | 87.94 | -53.05 | 79.04 | 0.7951 | -378.0 | -448.4 | |
| 0.00 | 1.16 | 0.00 | 0.94 | 11.83 | 88.16 | -52.84 | 80.64 | 0.7928 | -520.0 | -398.3 | |
| 0.62 | 1.96 | 0.54 | 1.68 | 16.84 | 85.80 | -55.19 | 74.47 | 0.8178 | 483.1 | 355.7 | |
| 0.00 | 1.96 | 0.00 | 1.64 | 14.09 | 86.82 | -54.17 | 77.82 | 0.8067 | -286.0 | -247.7 | |
| 0.00 | 1.70 | 0.00 | 1.47 | 17.51 | 85.28 | -55.71 | 73.69 | 0.8232 | 426.0 | 226.5 | |
| 0.00 | 7.94 | 0.00 | 6.82 | 16.48 | 85.63 | -55.37 | 74.92 | 0.8193 | -17.0 | 76.5 | |
| 0.00 | 0.80 | 0.00 | 0.67 | 13.46 | 86.72 | -54.28 | 78.60 | 0.8077 | -10.0 | -94.9 | |
| 0.00 | 1.43 | 0.00 | 1.23 | 15.91 | 85.53 | -55.46 | 75.62 | 0.8200 | -285.0 | -166.0 | |
| 1.43 | -5.00 | 1.22 | -5.00 | 14.89 | 85.83 | -55.17 | 76.86 | 0.8168 | -1019.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.05 | 12.73 | 86.42 | -54.58 | 79.52 | 0.8106 | -601.0 | -523.5 | |
| 0.00 | 0.71 | 0.00 | 0.60 | 12.95 | 86.24 | -54.76 | 79.24 | 0.8124 | -654.0 | -587.5 | |
| 10.98 | -5.00 | 9.48 | -5.00 | 13.48 | 85.35 | -55.65 | 78.60 | 0.8212 | -832.9 | 999999 | |
| 2.77 | -5.00 | 2.40 | -5.00 | 13.84 | 85.22 | -55.77 | 78.16 | 0.8224 | -922.9 | 999999 | |
| 28.11 | -5.00 | 24.50 | -5.00 | 14.37 | 84.97 | -56.03 | 77.52 | 0.8249 | -879.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.63 | 14.29 | 84.20 | -56.79 | 77.63 | 0.8322 | -176.0 | -122.4 | |
| 0.00 | 0.98 | 0.00 | 0.88 | 13.39 | 83.62 | -57.37 | 78.71 | 0.8376 | -612.0 | -538.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
