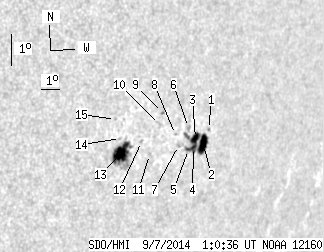

SDO HMI 2014-09-07 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.30 | 86.30 | 38.07 | 75.73 | -9.35 | 194.28 | 53.29 | 253.39 | 0.8271 | 14.1 | 171.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 1.16 | -9.09 | 196.57 | 55.57 | 254.41 | 0.8477 | 155.0 | 105.0 | |
| 12.41 | 36.50 | 11.49 | 33.50 | -9.54 | 196.40 | 55.41 | 253.85 | 0.8473 | 326.2 | 433.8 | |
| 6.16 | -2.00 | 5.62 | -2.00 | -9.30 | 195.91 | 54.92 | 253.97 | 0.8423 | 653.0 | 999999 | |
| 4.02 | -2.00 | 3.67 | -2.00 | -9.58 | 195.87 | 54.88 | 253.64 | 0.8426 | 597.8 | 999999 | |
| 0.27 | -2.00 | 0.24 | -2.00 | -9.61 | 195.61 | 54.62 | 253.52 | 0.8404 | 643.0 | 999999 | |
| 0.00 | 2.77 | 0.00 | 2.49 | -8.91 | 195.45 | 54.46 | 254.29 | 0.8372 | 435.0 | 442.7 | |
| 0.00 | 1.78 | 0.00 | 1.60 | -9.43 | 195.04 | 54.04 | 253.56 | 0.8347 | 459.0 | 461.6 | |
| 0.00 | 0.89 | 0.00 | 0.79 | -9.06 | 194.80 | 53.80 | 253.91 | 0.8316 | 521.0 | 459.8 | |
| 0.00 | 1.25 | 0.00 | 1.08 | -8.28 | 193.97 | 52.97 | 254.56 | 0.8218 | -335.0 | -260.7 | |
| 0.00 | 2.68 | 0.00 | 2.32 | -8.65 | 193.89 | 52.89 | 254.11 | 0.8220 | 244.0 | 205.1 | |
| 0.00 | 1.16 | 0.00 | 1.00 | -9.55 | 193.57 | 52.58 | 252.94 | 0.8214 | 281.0 | 233.9 | |
| 0.00 | 1.25 | 0.00 | 1.06 | -9.09 | 193.07 | 52.08 | 253.31 | 0.8153 | -349.0 | -230.6 | |
| 20.44 | 35.08 | 17.05 | 29.33 | -9.37 | 192.14 | 51.14 | 252.67 | 0.8070 | -582.9 | -61.1 | |
| 0.00 | 0.98 | 0.00 | 0.81 | -8.89 | 191.99 | 51.00 | 253.20 | 0.8042 | -605.0 | -512.8 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -8.26 | 191.63 | 50.64 | 253.83 | 0.7988 | -585.0 | -524.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
