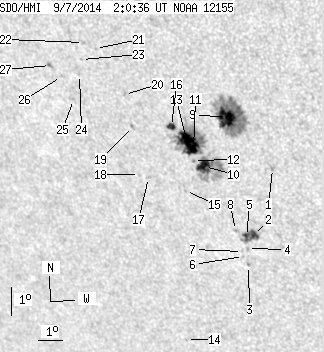

SDO HMI 2014-09-07 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.39 | 261.15 | 48.58 | 175.05 | -19.75 | 107.24 | -33.21 | 130.15 | 0.6767 | 688.1 | 425.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.35 | -20.40 | 109.72 | -30.73 | 133.07 | 0.6578 | 827.0 | 684.5 | |
| 5.00 | 14.55 | 3.41 | 9.94 | -22.79 | 108.41 | -32.03 | 134.65 | 0.6896 | 832.0 | 633.9 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -23.87 | 107.92 | -32.53 | 135.41 | 0.7028 | 548.0 | 461.0 | |
| 0.00 | 1.70 | 0.00 | 1.17 | -23.27 | 108.05 | -32.40 | 134.86 | 0.6967 | 530.0 | 489.1 | |
| 3.75 | -2.00 | 2.57 | -2.00 | -22.84 | 108.12 | -32.32 | 134.46 | 0.6927 | 818.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -23.56 | 107.81 | -32.64 | 134.99 | 0.7012 | 572.0 | 441.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -23.39 | 107.82 | -32.63 | 134.80 | 0.6997 | 573.0 | 537.0 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -22.66 | 107.74 | -32.70 | 133.94 | 0.6946 | 712.0 | 653.2 | |
| 21.60 | 89.35 | 14.18 | 58.50 | -18.78 | 108.34 | -32.10 | 129.90 | 0.6581 | 1034.1 | 539.2 | |
| 12.59 | 49.18 | 8.52 | 33.23 | -20.52 | 107.10 | -33.35 | 130.94 | 0.6838 | 805.4 | 382.3 | |
| 9.28 | 83.99 | 6.27 | 56.67 | -19.93 | 106.82 | -33.63 | 130.01 | 0.6820 | 968.5 | 460.9 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -20.34 | 106.72 | -33.73 | 130.42 | 0.6861 | 424.0 | 395.3 | |
| 16.33 | -11.00 | 11.03 | -11.00 | -19.64 | 106.62 | -33.83 | 129.51 | 0.6818 | 1049.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -26.76 | 104.46 | -35.98 | 135.72 | 0.7537 | -428.0 | -396.0 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -21.41 | 106.13 | -34.32 | 131.18 | 0.6997 | 518.0 | 419.5 | |
| 3.84 | -11.00 | 2.60 | -11.00 | -19.24 | 106.13 | -34.31 | 128.64 | 0.6836 | 678.4 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.50 | -21.07 | 104.75 | -35.69 | 129.72 | 0.7102 | 689.0 | 501.8 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -20.99 | 104.41 | -36.03 | 129.38 | 0.7128 | 131.0 | 277.0 | |
| 0.00 | 1.79 | 0.00 | 1.23 | -19.36 | 104.57 | -35.87 | 127.58 | 0.6999 | -429.0 | -402.0 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -18.29 | 104.52 | -35.92 | 126.26 | 0.6931 | 716.0 | 616.9 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -16.83 | 103.72 | -36.72 | 123.88 | 0.6916 | -401.0 | -342.0 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -16.67 | 103.29 | -37.16 | 123.37 | 0.6951 | -673.0 | -492.6 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -17.25 | 103.07 | -37.37 | 123.93 | 0.7010 | -448.0 | -378.7 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -17.76 | 102.87 | -37.58 | 124.42 | 0.7064 | -502.0 | -430.6 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -18.63 | 102.40 | -38.05 | 125.15 | 0.7165 | -695.0 | -518.6 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -17.89 | 102.11 | -38.34 | 124.06 | 0.7148 | -713.0 | -619.5 | |
| 0.00 | 2.14 | 0.00 | 1.52 | -17.55 | 101.75 | -38.70 | 123.41 | 0.7164 | -639.0 | -566.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
