SDO HMI 2014-09-07 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.18 | 266.29 | 46.06 | 177.34 | -19.76 | 107.24 | -32.65 | 130.63 | 0.6714 | 650.4 | 429.2 | |
|
previous
or next observation for the same group /

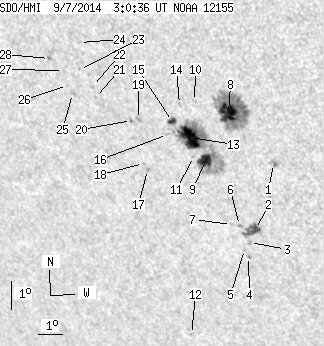

back to the solar disc SDO HMI 2014-09-07 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.39 | 0.00 | 2.21 | -20.43 | 109.68 | -30.21 | 133.58 | 0.6532 | 734.0 | 624.3 | |
| 5.36 | 15.27 | 3.63 | 10.37 | -22.79 | 108.44 | -31.46 | 135.14 | 0.6844 | 845.2 | 683.2 | |
| 0.00 | 2.41 | 0.00 | 1.65 | -23.26 | 108.08 | -31.82 | 135.36 | 0.6916 | 532.0 | 467.6 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -23.76 | 107.90 | -31.99 | 135.75 | 0.6972 | 477.0 | 398.6 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -23.53 | 107.81 | -32.08 | 135.42 | 0.6961 | 566.0 | 461.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -22.69 | 107.85 | -32.05 | 134.52 | 0.6889 | 780.0 | 645.6 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -22.68 | 107.54 | -32.36 | 134.24 | 0.6916 | 473.0 | 365.6 | |
| 22.67 | 90.52 | 14.79 | 58.92 | -18.81 | 108.35 | -31.55 | 130.42 | 0.6528 | 1014.0 | 521.3 | |
| 12.41 | 129.17 | 8.35 | 86.61 | -20.51 | 107.09 | -32.81 | 131.38 | 0.6786 | 816.1 | 458.9 | |
| 0.00 | 1.52 | 0.00 | 1.00 | -18.52 | 107.13 | -32.77 | 129.02 | 0.6629 | 518.0 | 313.9 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -20.41 | 106.65 | -33.24 | 130.89 | 0.6820 | 520.0 | 426.2 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -26.78 | 104.65 | -35.24 | 136.30 | 0.7479 | -539.0 | -461.1 | |
| 25.35 | -9.00 | 17.01 | -9.00 | -19.76 | 106.69 | -33.20 | 130.16 | 0.6767 | 1002.8 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.07 | -18.67 | 106.52 | -33.37 | 128.70 | 0.6700 | 691.0 | 540.5 | |
| 3.39 | -9.00 | 2.28 | -9.00 | -19.27 | 106.12 | -33.78 | 129.10 | 0.6786 | 712.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -19.73 | 105.81 | -34.08 | 129.40 | 0.6850 | 287.0 | 202.5 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -21.00 | 104.70 | -35.20 | 130.02 | 0.7050 | 683.0 | 491.0 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -20.80 | 104.59 | -35.30 | 129.71 | 0.7046 | 605.0 | 491.6 | |
| 0.00 | 2.59 | 0.00 | 1.77 | -19.30 | 104.79 | -35.11 | 128.09 | 0.6920 | -93.0 | -125.8 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -19.36 | 104.50 | -35.40 | 127.93 | 0.6952 | -259.0 | -323.4 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -18.68 | 103.24 | -36.66 | 126.19 | 0.7031 | -408.0 | -331.1 | |
| 0.00 | 1.79 | 0.00 | 1.24 | -18.32 | 103.21 | -36.68 | 125.73 | 0.7009 | -547.0 | -436.7 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -17.79 | 102.83 | -37.07 | 124.81 | 0.7013 | -590.0 | -566.4 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -16.88 | 103.04 | -36.85 | 123.84 | 0.6933 | -465.0 | -388.0 | |
| 0.00 | 1.43 | 0.00 | 1.00 | -18.62 | 102.33 | -37.56 | 125.48 | 0.7117 | -661.0 | -518.2 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -18.37 | 102.20 | -37.70 | 125.07 | 0.7114 | -609.0 | -558.0 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -17.87 | 102.16 | -37.73 | 124.45 | 0.7086 | -692.0 | -572.2 | |
| 0.00 | 1.79 | 0.00 | 1.25 | -17.51 | 101.69 | -38.21 | 123.69 | 0.7112 | -647.0 | -518.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
