SDO HMI 2014-09-07 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.95 | 0.00 | 4.71 | 10.98 | 181.15 | 41.80 | 279.94 | 0.6570 | -111.7 | -190.2 | |
|
previous
or next observation for the same group /

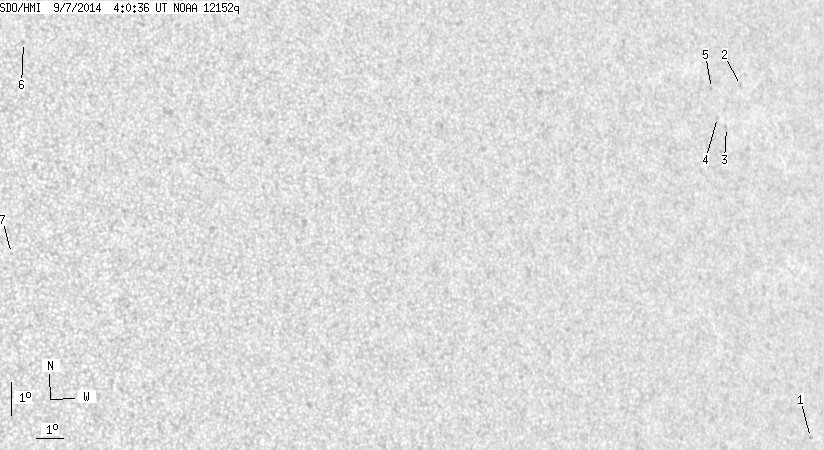

back to the solar disc SDO HMI 2014-09-07 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.75 | 1.85 | 189.08 | 49.74 | 266.28 | 0.7666 | -588.0 | -501.1 | |
| 0.00 | 1.43 | 0.00 | 1.05 | 12.73 | 187.43 | 48.09 | 280.64 | 0.7408 | -172.0 | -211.6 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 11.53 | 186.50 | 47.15 | 279.03 | 0.7297 | -582.0 | -515.6 | |
| 0.00 | 1.34 | 0.00 | 0.96 | 11.87 | 186.17 | 46.82 | 279.50 | 0.7259 | -378.0 | -425.4 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 12.76 | 186.11 | 46.76 | 280.74 | 0.7255 | -579.0 | -517.6 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 15.95 | 160.50 | 21.15 | 294.66 | 0.3834 | 759.0 | 525.2 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 9.57 | 159.54 | 20.20 | 278.03 | 0.3453 | 758.0 | 608.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
