SDO HMI 2014-09-07 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 34.80 | 0.20 | 20.12 | -17.50 | 157.45 | 18.65 | 216.39 | 0.5156 | 34.4 | 41.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

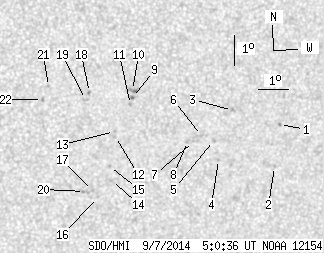

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.69 | -17.44 | 162.11 | 23.31 | 222.79 | 0.5579 | 752.0 | 634.0 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -18.84 | 162.14 | 23.34 | 221.08 | 0.5727 | 663.0 | 548.9 | |
| 0.00 | 2.32 | 0.00 | 1.36 | -16.88 | 160.43 | 21.63 | 221.38 | 0.5357 | 683.0 | 601.7 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -18.50 | 160.15 | 21.36 | 219.01 | 0.5507 | 505.0 | 427.7 | |
| 0.00 | 1.96 | 0.00 | 1.16 | -17.85 | 159.90 | 21.10 | 219.46 | 0.5413 | 772.0 | 575.5 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -17.67 | 159.47 | 20.67 | 219.12 | 0.5352 | 791.0 | 496.5 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -17.85 | 159.22 | 20.42 | 218.55 | 0.5350 | 562.0 | 452.6 | |
| 0.00 | 1.96 | 0.00 | 1.15 | -17.84 | 159.02 | 20.22 | 218.29 | 0.5330 | 602.0 | 516.9 | |
| 0.36 | 1.43 | 0.20 | 0.81 | -16.30 | 157.01 | 18.21 | 217.32 | 0.4968 | 872.2 | 762.6 | |
| 0.00 | 4.02 | 0.00 | 2.29 | -16.06 | 156.99 | 18.19 | 217.58 | 0.4938 | 947.0 | 749.0 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.52 | 156.97 | 18.17 | 216.97 | 0.4991 | 836.0 | 605.1 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -17.57 | 156.57 | 17.77 | 215.10 | 0.5081 | -559.0 | -496.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -17.40 | 156.52 | 17.72 | 215.22 | 0.5056 | -613.0 | -544.0 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -19.04 | 156.59 | 17.79 | 213.45 | 0.5261 | -723.0 | -551.6 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -18.56 | 156.47 | 17.67 | 213.80 | 0.5194 | -622.0 | -510.7 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -19.60 | 156.18 | 17.38 | 212.24 | 0.5297 | -601.0 | -540.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.35 | 155.99 | 17.19 | 212.21 | 0.5251 | -778.0 | -585.5 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -16.07 | 155.57 | 16.77 | 215.36 | 0.4811 | -862.0 | -713.2 | |
| 0.00 | 2.05 | 0.00 | 1.16 | -16.30 | 155.46 | 16.66 | 214.90 | 0.4829 | -447.0 | -480.5 | |
| 0.00 | 3.75 | 0.00 | 2.18 | -19.37 | 155.72 | 16.92 | 211.79 | 0.5233 | -615.0 | -628.8 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -15.82 | 154.21 | 15.41 | 213.41 | 0.4662 | -760.0 | -562.5 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -16.24 | 154.05 | 15.25 | 212.62 | 0.4702 | -817.0 | -670.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
