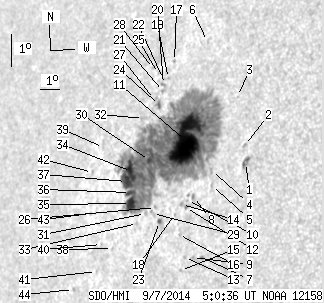

SDO HMI 2014-09-07 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.37 | 719.25 | 99.33 | 573.22 | 15.10 | 86.69 | -52.11 | 76.45 | 0.7859 | 244.2 | -70.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.62 | 0.00 | 4.16 | 15.27 | 90.46 | -48.34 | 75.96 | 0.7452 | -665.0 | -563.1 | |
| 0.00 | 1.70 | 0.00 | 1.26 | 15.78 | 90.25 | -48.54 | 75.30 | 0.7480 | 522.0 | 472.8 | |
| 0.00 | 0.62 | 0.00 | 0.47 | 17.22 | 89.43 | -49.37 | 73.47 | 0.7585 | -279.0 | -176.3 | |
| 0.00 | 2.23 | 0.00 | 1.70 | 14.88 | 88.95 | -49.85 | 76.59 | 0.7617 | 539.0 | 473.6 | |
| 0.00 | 1.16 | 0.00 | 0.88 | 14.43 | 89.09 | -49.71 | 77.17 | 0.7599 | 515.0 | 417.6 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 18.74 | 87.32 | -51.47 | 71.75 | 0.7823 | 578.0 | 542.4 | |
| 0.00 | 1.16 | 0.00 | 0.88 | 12.23 | 89.22 | -49.58 | 80.08 | 0.7576 | -757.0 | -600.3 | |
| 0.00 | 1.96 | 0.00 | 1.51 | 14.02 | 88.33 | -50.47 | 77.76 | 0.7680 | 259.0 | 281.2 | |
| 0.00 | 1.25 | 0.00 | 0.95 | 12.19 | 88.79 | -50.01 | 80.14 | 0.7623 | -570.0 | -426.9 | |
| 0.00 | 0.89 | 0.00 | 0.69 | 13.88 | 88.08 | -50.72 | 77.96 | 0.7706 | 241.0 | 187.4 | |
| 82.77 | 664.10 | 65.03 | 529.36 | 15.64 | 87.46 | -51.34 | 75.72 | 0.7782 | 1028.1 | -66.1 | |
| 0.00 | 1.25 | 0.00 | 0.97 | 13.66 | 88.05 | -50.75 | 78.25 | 0.7709 | 247.0 | 188.5 | |
| 0.00 | 1.16 | 0.00 | 0.89 | 12.16 | 88.41 | -50.38 | 80.19 | 0.7665 | -586.0 | -447.5 | |
| 0.00 | 1.61 | 0.00 | 1.25 | 13.73 | 87.83 | -50.97 | 78.16 | 0.7733 | -357.0 | -307.3 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 11.75 | 88.32 | -50.48 | 80.73 | 0.7675 | -621.0 | -489.5 | |
| 0.00 | 0.54 | 0.00 | 0.42 | 12.82 | 87.94 | -50.86 | 79.34 | 0.7718 | -741.0 | -674.8 | |
| 0.00 | 1.16 | 0.00 | 0.95 | 17.98 | 85.93 | -52.87 | 72.87 | 0.7958 | 455.0 | 364.6 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 13.40 | 87.58 | -51.22 | 78.60 | 0.7759 | -495.0 | -437.4 | |
| 0.00 | 0.98 | 0.00 | 0.80 | 17.44 | 85.84 | -52.96 | 73.56 | 0.7962 | 421.0 | 337.7 | |
| 0.00 | 2.14 | 0.00 | 1.75 | 17.24 | 85.66 | -53.14 | 73.83 | 0.7979 | 636.0 | 485.2 | |
| 0.00 | 1.52 | 0.00 | 1.24 | 17.03 | 85.74 | -53.05 | 74.09 | 0.7969 | 271.0 | 348.5 | |
| 0.00 | 2.14 | 0.00 | 1.75 | 17.39 | 85.60 | -53.20 | 73.65 | 0.7986 | 365.0 | 315.5 | |
| 1.07 | 2.32 | 0.85 | 1.84 | 13.12 | 86.91 | -51.89 | 78.98 | 0.7830 | -766.5 | -651.6 | |
| 1.16 | 4.20 | 0.95 | 3.43 | 16.59 | 85.71 | -53.09 | 74.64 | 0.7969 | 443.0 | 230.8 | |
| 0.00 | 1.07 | 0.00 | 0.88 | 17.54 | 85.26 | -53.54 | 73.48 | 0.8021 | 338.0 | 285.0 | |
| 0.00 | 1.16 | 0.00 | 0.93 | 13.52 | 86.58 | -52.22 | 78.48 | 0.7865 | -870.0 | -763.5 | |
| 0.00 | 0.62 | 0.00 | 0.51 | 16.74 | 85.38 | -53.42 | 74.47 | 0.8003 | -147.0 | -134.4 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 17.66 | 84.94 | -53.86 | 73.35 | 0.8054 | 197.0 | 154.0 | |
| 0.00 | 2.50 | 0.00 | 2.00 | 13.32 | 86.49 | -52.31 | 78.73 | 0.7874 | -719.0 | -582.6 | |
| 2.32 | -11.00 | 1.89 | -11.00 | 14.89 | 85.82 | -52.98 | 76.77 | 0.7949 | -874.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.08 | 13.29 | 86.14 | -52.66 | 78.78 | 0.7911 | -717.0 | -607.9 | |
| 0.00 | 2.41 | 0.00 | 2.00 | 16.12 | 85.04 | -53.75 | 75.27 | 0.8033 | -267.0 | -269.7 | |
| 0.00 | 1.16 | 0.00 | 0.94 | 12.95 | 85.83 | -52.97 | 79.22 | 0.7942 | -538.0 | -515.2 | |
| 11.87 | -11.00 | 9.83 | -11.00 | 14.47 | 85.02 | -53.78 | 77.33 | 0.8029 | -989.5 | 999999 | |
| 9.73 | -11.00 | 7.99 | -11.00 | 13.51 | 85.29 | -53.51 | 78.52 | 0.7999 | -843.4 | 999999 | |
| 4.02 | -11.00 | 3.31 | -11.00 | 13.84 | 85.18 | -53.62 | 78.11 | 0.8011 | -857.3 | 999999 | |
| 11.43 | -11.00 | 9.48 | -11.00 | 14.15 | 84.87 | -53.93 | 77.74 | 0.8043 | -749.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.59 | 12.08 | 84.78 | -54.01 | 80.32 | 0.8049 | -394.0 | -318.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 15.04 | 83.29 | -55.51 | 76.69 | 0.8202 | -514.0 | -485.7 | |
| 0.00 | 0.89 | 0.00 | 0.75 | 12.14 | 84.18 | -54.62 | 80.24 | 0.8110 | -303.0 | -283.3 | |
| 0.00 | 0.89 | 0.00 | 0.75 | 11.31 | 84.15 | -54.65 | 81.26 | 0.8113 | -293.0 | -232.9 | |
| 0.00 | 0.98 | 0.00 | 0.85 | 14.24 | 82.98 | -55.82 | 77.68 | 0.8229 | -379.0 | -311.7 | |
| 0.00 | 1.25 | 0.00 | 1.07 | 13.00 | 83.31 | -55.49 | 79.18 | 0.8197 | -342.0 | -263.2 | |
| 0.00 | 1.52 | 0.00 | 1.31 | 10.65 | 83.09 | -55.71 | 82.05 | 0.8220 | -551.0 | -497.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
