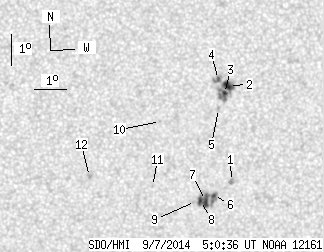

SDO HMI 2014-09-07 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.83 | 62.67 | 10.79 | 34.10 | -14.67 | 149.46 | 10.66 | 205.86 | 0.4143 | -113.6 | 31.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.04 | 0.00 | 1.67 | -15.95 | 150.18 | 11.38 | 205.84 | 0.4370 | -903.0 | -664.6 | |
| 6.70 | 23.93 | 3.60 | 12.88 | -12.83 | 149.93 | 11.13 | 208.89 | 0.3911 | 1076.0 | 739.8 | |
| 1.79 | -2.00 | 0.96 | -2.00 | -13.08 | 149.81 | 11.01 | 208.32 | 0.3938 | 1009.5 | 999999 | |
| 1.16 | 4.73 | 0.62 | 2.54 | -12.62 | 149.60 | 10.80 | 208.43 | 0.3858 | 1124.5 | 880.1 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -13.56 | 149.64 | 10.84 | 207.38 | 0.3994 | 626.0 | 376.7 | |
| 1.43 | 22.50 | 0.79 | 12.40 | -16.40 | 149.63 | 10.83 | 204.30 | 0.4397 | -1032.2 | -698.9 | |
| 5.27 | -6.00 | 2.90 | -6.00 | -16.56 | 149.38 | 10.58 | 203.66 | 0.4404 | -1033.2 | 999999 | |
| 3.48 | -6.00 | 1.92 | -6.00 | -16.55 | 149.22 | 10.42 | 203.34 | 0.4393 | -994.7 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.52 | -16.58 | 149.06 | 10.26 | 202.99 | 0.4388 | -616.0 | -576.4 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -13.94 | 147.83 | 9.03 | 202.93 | 0.3925 | 728.0 | 666.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.06 | 147.66 | 8.86 | 200.58 | 0.4229 | -672.0 | -517.1 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -15.69 | 145.65 | 6.85 | 196.44 | 0.4072 | -889.0 | -778.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
