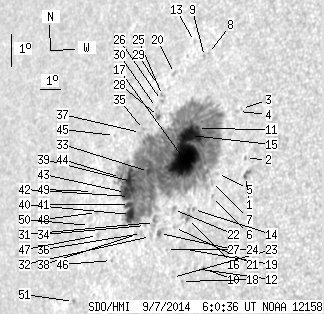

SDO HMI 2014-09-07 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.02 | 744.56 | 105.93 | 586.45 | 15.05 | 86.60 | -51.65 | 76.48 | 0.7811 | 180.0 | -62.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 3.93 | 0.52 | 2.88 | 15.19 | 90.45 | -47.80 | 76.01 | 0.7391 | -653.1 | -599.1 | |
| 0.00 | 1.07 | 0.00 | 0.79 | 15.73 | 90.28 | -47.97 | 75.29 | 0.7415 | 331.0 | 329.0 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 17.22 | 89.60 | -48.65 | 73.38 | 0.7506 | -281.0 | -250.7 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 17.12 | 89.49 | -48.76 | 73.53 | 0.7517 | 112.0 | 106.7 | |
| 0.00 | 1.34 | 0.00 | 1.01 | 15.16 | 89.13 | -49.12 | 76.16 | 0.7539 | 246.0 | 200.3 | |
| 0.00 | 0.98 | 0.00 | 0.74 | 14.45 | 89.11 | -49.15 | 77.11 | 0.7537 | 321.0 | 271.7 | |
| 0.00 | 1.96 | 0.00 | 1.48 | 14.87 | 88.93 | -49.32 | 76.57 | 0.7559 | 546.0 | 475.0 | |
| 0.00 | 0.89 | 0.00 | 0.70 | 18.74 | 87.39 | -50.86 | 71.68 | 0.7760 | 654.0 | 594.1 | |
| 0.00 | 1.25 | 0.00 | 0.98 | 18.63 | 87.23 | -51.02 | 71.84 | 0.7775 | 487.0 | 441.2 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 12.25 | 89.23 | -49.02 | 80.03 | 0.7513 | -717.0 | -601.1 | |
| 1.25 | 674.49 | 0.97 | 531.31 | 16.43 | 87.73 | -50.52 | 74.63 | 0.7701 | 996.6 | -47.5 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 12.22 | 88.86 | -49.39 | 80.09 | 0.7555 | -625.0 | -458.9 | |
| 0.00 | 1.07 | 0.00 | 0.85 | 19.03 | 86.54 | -51.71 | 71.41 | 0.7851 | 271.0 | 204.8 | |
| 0.00 | 1.25 | 0.00 | 0.95 | 13.98 | 88.33 | -49.92 | 77.78 | 0.7620 | 615.0 | 494.4 | |
| 23.30 | -11.00 | 18.12 | -11.00 | 16.19 | 87.46 | -50.79 | 74.96 | 0.7727 | 986.3 | 999999 | |
| 0.63 | 8.48 | 0.48 | 6.50 | 13.68 | 88.12 | -50.13 | 78.18 | 0.7641 | 342.4 | 56.0 | |
| 59.20 | -11.00 | 45.99 | -11.00 | 15.44 | 87.42 | -50.83 | 75.94 | 0.7726 | 1032.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 11.77 | 88.35 | -49.90 | 80.69 | 0.7612 | -613.0 | -538.2 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 12.75 | 88.04 | -50.21 | 79.40 | 0.7647 | -465.0 | -485.4 | |
| 0.00 | 2.14 | 0.00 | 1.72 | 17.97 | 85.96 | -52.30 | 72.82 | 0.7900 | 499.0 | 370.7 | |
| 0.00 | 0.89 | 0.00 | 0.69 | 13.36 | 87.58 | -50.67 | 78.63 | 0.7699 | -519.0 | -543.2 | |
| 0.00 | 2.14 | 0.00 | 1.66 | 13.89 | 87.37 | -50.88 | 77.95 | 0.7724 | -333.0 | -299.7 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 11.85 | 87.89 | -50.36 | 80.59 | 0.7662 | -527.0 | -443.7 | |
| 0.00 | 0.54 | 0.00 | 0.42 | 12.66 | 87.38 | -50.87 | 79.54 | 0.7719 | -588.0 | -519.5 | |
| 0.00 | 1.96 | 0.00 | 1.59 | 17.25 | 85.63 | -52.63 | 73.76 | 0.7927 | 594.0 | 469.6 | |
| 0.00 | 1.25 | 0.00 | 1.01 | 17.10 | 85.64 | -52.62 | 73.96 | 0.7925 | 546.0 | 434.1 | |
| 1.16 | 4.11 | 0.91 | 3.22 | 13.11 | 86.91 | -51.34 | 78.98 | 0.7771 | -841.2 | -561.6 | |
| 1.07 | 3.84 | 0.86 | 3.10 | 16.60 | 85.67 | -52.58 | 74.58 | 0.7917 | 436.7 | 276.5 | |
| 0.00 | 0.80 | 0.00 | 0.66 | 17.56 | 85.24 | -53.02 | 73.41 | 0.7969 | 344.0 | 278.4 | |
| 0.00 | 0.80 | 0.00 | 0.65 | 16.86 | 85.47 | -52.78 | 74.27 | 0.7940 | -162.0 | -126.0 | |
| 0.00 | 6.16 | 0.00 | 4.87 | 13.41 | 86.57 | -51.68 | 78.59 | 0.7808 | -730.0 | -641.7 | |
| 0.00 | 1.79 | 0.00 | 1.41 | 12.97 | 86.50 | -51.75 | 79.16 | 0.7815 | -709.0 | -605.3 | |
| 2.59 | -11.00 | 2.08 | -11.00 | 14.91 | 85.78 | -52.47 | 76.72 | 0.7897 | -864.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.14 | 13.28 | 86.15 | -52.10 | 78.78 | 0.7852 | -708.0 | -652.4 | |
| 0.00 | 1.16 | 0.00 | 0.95 | 16.14 | 85.07 | -53.18 | 75.21 | 0.7976 | -308.0 | -278.5 | |
| 0.00 | 1.70 | 0.00 | 1.35 | 13.02 | 86.03 | -52.22 | 79.11 | 0.7865 | -543.0 | -370.7 | |
| 0.00 | 1.25 | 0.00 | 1.02 | 16.04 | 84.95 | -53.30 | 75.34 | 0.7987 | -327.0 | -306.4 | |
| 0.00 | 2.32 | 0.00 | 1.86 | 12.97 | 85.79 | -52.46 | 79.18 | 0.7890 | -586.0 | -508.8 | |
| 17.50 | -11.00 | 14.30 | -11.00 | 14.53 | 85.03 | -53.22 | 77.24 | 0.7973 | -987.7 | 999999 | |
| 11.25 | -11.00 | 9.13 | -11.00 | 13.53 | 85.30 | -52.95 | 78.47 | 0.7941 | -866.6 | 999999 | |
| 3.93 | -11.00 | 3.20 | -11.00 | 13.83 | 85.16 | -53.09 | 78.11 | 0.7957 | -809.9 | 999999 | |
| 2.50 | -11.00 | 2.04 | -11.00 | 14.07 | 85.08 | -53.17 | 77.81 | 0.7966 | -969.4 | 999999 | |
| 7.50 | -11.00 | 6.15 | -11.00 | 14.17 | 84.83 | -53.42 | 77.69 | 0.7991 | -726.2 | 999999 | |
| 1.43 | -11.00 | 1.18 | -11.00 | 14.59 | 84.42 | -53.83 | 77.18 | 0.8034 | -370.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.60 | 15.81 | 83.64 | -54.61 | 75.70 | 0.8117 | -537.0 | -481.2 | |
| 0.00 | 0.98 | 0.00 | 0.81 | 12.07 | 84.76 | -53.49 | 80.33 | 0.7996 | -425.0 | -327.5 | |
| 0.00 | 1.79 | 0.00 | 1.50 | 12.74 | 83.82 | -54.44 | 79.49 | 0.8092 | -703.0 | -509.1 | |
| 0.00 | 0.98 | 0.00 | 0.83 | 13.42 | 83.54 | -54.71 | 78.65 | 0.8120 | -530.0 | -405.4 | |
| 0.00 | 0.63 | 0.00 | 0.53 | 14.03 | 83.11 | -55.14 | 77.92 | 0.8163 | -508.0 | -360.4 | |
| 0.00 | 1.16 | 0.00 | 0.98 | 13.00 | 83.30 | -54.95 | 79.18 | 0.8143 | -375.0 | -325.8 | |
| 0.00 | 1.61 | 0.00 | 1.37 | 10.65 | 83.14 | -55.12 | 82.07 | 0.8162 | -615.0 | -497.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
