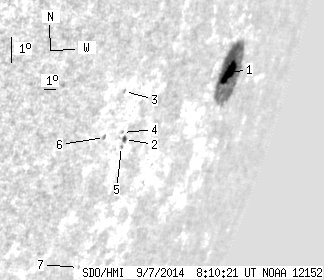

SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.61 | 108.40 | 31.37 | 206.38 | -14.42 | 209.18 | 72.11 | 252.83 | 0.9653 | 339.0 | 86.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.27 | 99.74 | 29.62 | 195.31 | -14.35 | 209.65 | 72.58 | 253.01 | 0.9677 | 477.4 | 103.9 | |
| 1.34 | 2.59 | 1.75 | 3.38 | -15.49 | 201.44 | 64.37 | 249.92 | 0.9267 | -182.8 | -87.4 | |
| 0.00 | 1.43 | 0.00 | 1.77 | -13.85 | 200.55 | 63.48 | 251.41 | 0.9183 | -252.0 | -204.9 | |
| 0.00 | 0.80 | 0.00 | 1.03 | -15.23 | 201.14 | 64.08 | 250.12 | 0.9244 | -273.0 | -232.2 | |
| 0.00 | 1.16 | 0.00 | 1.51 | -15.71 | 201.34 | 64.28 | 249.67 | 0.9265 | -307.0 | -229.9 | |
| 0.00 | 1.79 | 0.00 | 2.19 | -15.24 | 199.87 | 62.81 | 249.76 | 0.9164 | -291.0 | -233.9 | |
| 0.00 | 0.89 | 0.00 | 1.19 | -19.58 | 200.75 | 63.68 | 245.48 | 0.9298 | -368.0 | -377.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
