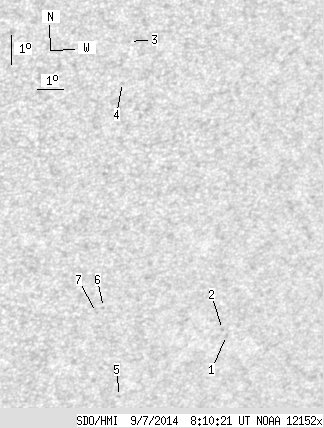

SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.31 | 0.00 | 4.84 | -19.63 | 168.66 | 31.59 | 228.81 | 0.6591 | 526.3 | 453.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.99 | -21.71 | 171.69 | 34.62 | 228.72 | 0.7047 | 441.0 | 377.8 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -21.49 | 171.47 | 34.41 | 228.80 | 0.7011 | 658.0 | 558.0 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -11.64 | 166.19 | 29.12 | 237.13 | 0.5696 | 538.0 | 497.6 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -12.94 | 166.10 | 29.03 | 235.12 | 0.5786 | 497.0 | 401.3 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -23.55 | 168.01 | 30.94 | 223.57 | 0.6862 | 574.0 | 484.3 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -20.39 | 166.66 | 29.59 | 225.91 | 0.6467 | 439.0 | 405.0 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -20.55 | 166.43 | 29.36 | 225.51 | 0.6459 | 537.0 | 452.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
