SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 222.49 | 951.99 | 160.12 | 690.69 | -13.81 | 94.91 | -42.15 | 116.73 | 0.7306 | -115.4 | -197.7 | |
|
previous
or next observation for the same group /

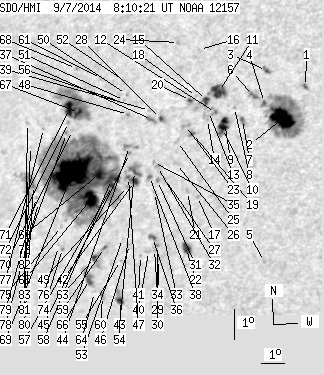

back to the solar disc SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 3.57 | 0.62 | 2.26 | -10.67 | 102.83 | -34.23 | 117.37 | 0.6248 | 609.3 | 375.4 | |
| 31.16 | 123.04 | 20.12 | 79.33 | -11.76 | 101.82 | -35.25 | 118.21 | 0.6435 | 1110.9 | 384.2 | |
| 1.07 | 4.73 | 0.69 | 3.04 | -10.27 | 101.42 | -35.65 | 115.84 | 0.6394 | -652.8 | -458.7 | |
| 0.89 | -2.00 | 0.58 | -2.00 | -11.30 | 101.20 | -35.87 | 117.15 | 0.6480 | 730.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -16.51 | 100.24 | -36.83 | 123.38 | 0.6906 | -506.0 | -492.6 | |
| 1.61 | 5.89 | 1.05 | 3.84 | -11.11 | 100.81 | -36.26 | 116.63 | 0.6515 | 707.6 | 531.3 | |
| 0.89 | 3.93 | 0.59 | 2.59 | -11.92 | 100.26 | -36.81 | 117.38 | 0.6624 | 742.6 | 549.5 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -11.55 | 100.01 | -37.06 | 116.73 | 0.6633 | 722.0 | 646.1 | |
| 4.02 | 15.71 | 2.68 | 10.50 | -12.04 | 99.54 | -37.53 | 117.09 | 0.6714 | 851.7 | 513.4 | |
| 6.88 | -9.00 | 4.60 | -9.00 | -12.27 | 99.42 | -37.64 | 117.33 | 0.6740 | 708.5 | 999999 | |
| 12.50 | 18.75 | 8.29 | 12.44 | -11.09 | 99.46 | -37.61 | 115.75 | 0.6672 | 815.6 | 618.1 | |
| 0.54 | 6.79 | 0.36 | 4.55 | -11.77 | 99.23 | -37.83 | 116.54 | 0.6735 | 592.3 | 263.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.76 | 98.96 | -38.11 | 116.36 | 0.6766 | 309.0 | 272.3 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -12.02 | 98.88 | -38.19 | 116.66 | 0.6790 | 286.0 | 221.0 | |
| 3.48 | 12.32 | 2.33 | 8.28 | -11.42 | 98.94 | -38.13 | 115.88 | 0.6750 | 617.2 | 135.4 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -9.80 | 98.91 | -38.16 | 113.65 | 0.6670 | 335.0 | 310.7 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -14.57 | 97.99 | -39.08 | 119.44 | 0.7028 | 697.0 | 611.5 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -11.32 | 98.56 | -38.51 | 115.52 | 0.6788 | 438.0 | 336.9 | |
| 1.25 | 4.38 | 0.85 | 2.98 | -12.53 | 98.19 | -38.87 | 116.91 | 0.6894 | 339.4 | 9.0 | |
| 1.16 | 3.39 | 0.78 | 2.29 | -11.47 | 98.30 | -38.77 | 115.57 | 0.6826 | 329.0 | 37.4 | |
| 0.00 | 2.32 | 0.00 | 1.62 | -14.44 | 97.61 | -39.45 | 119.04 | 0.7062 | 481.0 | 480.7 | |
| 6.16 | 8.66 | 4.39 | 6.18 | -16.33 | 97.13 | -39.93 | 121.11 | 0.7218 | 711.9 | 423.7 | |
| 0.00 | 4.46 | 0.00 | 3.05 | -12.29 | 97.96 | -39.11 | 116.46 | 0.6908 | -261.0 | -262.8 | |
| 0.00 | 1.43 | 0.00 | 0.96 | -9.65 | 98.10 | -38.97 | 112.98 | 0.6757 | 445.0 | 419.8 | |
| 0.00 | 2.86 | 0.00 | 1.97 | -12.84 | 97.53 | -39.53 | 116.93 | 0.6984 | 366.0 | 397.1 | |
| 0.00 | 3.30 | 0.00 | 2.30 | -13.56 | 97.35 | -39.72 | 117.75 | 0.7042 | 636.0 | 480.9 | |
| 0.00 | 1.07 | 0.00 | 0.76 | -14.09 | 96.75 | -40.32 | 118.08 | 0.7136 | 587.0 | 542.1 | |
| 1.25 | 4.46 | 0.87 | 3.09 | -12.15 | 96.98 | -40.09 | 115.71 | 0.7010 | -668.1 | -418.9 | |
| 0.00 | 1.43 | 0.00 | 1.04 | -16.80 | 95.85 | -41.22 | 120.90 | 0.7375 | 346.0 | 394.8 | |
| 0.00 | 1.70 | 0.00 | 1.23 | -16.34 | 95.93 | -41.14 | 120.38 | 0.7342 | 566.0 | 508.1 | |
| 0.00 | 1.70 | 0.00 | 1.20 | -14.18 | 96.44 | -40.62 | 118.01 | 0.7173 | 601.0 | 526.2 | |
| 0.00 | 2.23 | 0.00 | 1.57 | -13.72 | 96.54 | -40.52 | 117.49 | 0.7139 | 544.0 | 411.6 | |
| 0.00 | 1.16 | 0.00 | 0.83 | -14.59 | 96.23 | -40.84 | 118.40 | 0.7217 | 355.0 | 296.5 | |
| 0.00 | 2.14 | 0.00 | 1.56 | -16.48 | 95.76 | -41.30 | 120.46 | 0.7366 | 497.0 | 444.5 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -13.60 | 96.40 | -40.66 | 117.26 | 0.7148 | 267.0 | 163.1 | |
| 1.88 | 3.93 | 1.36 | 2.86 | -16.09 | 95.78 | -41.29 | 119.99 | 0.7343 | 624.7 | 511.7 | |
| 0.00 | 4.64 | 0.00 | 3.24 | -12.21 | 96.60 | -40.47 | 115.58 | 0.7056 | 697.0 | 486.7 | |
| 0.80 | 3.04 | 0.57 | 2.16 | -14.08 | 96.14 | -40.93 | 117.71 | 0.7201 | 575.8 | 502.3 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -11.93 | 96.57 | -40.50 | 115.19 | 0.7045 | 662.0 | 544.1 | |
| 0.00 | 2.41 | 0.00 | 1.77 | -16.57 | 95.49 | -41.58 | 120.41 | 0.7399 | 313.0 | 203.9 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -16.74 | 95.10 | -41.97 | 120.38 | 0.7446 | 251.0 | 172.2 | |
| 3.93 | 23.93 | 2.83 | 17.20 | -14.30 | 95.46 | -41.61 | 117.60 | 0.7284 | 688.2 | 154.1 | |
| 4.46 | -42.00 | 3.20 | -42.00 | -13.97 | 95.54 | -41.53 | 117.23 | 0.7259 | 246.1 | 999999 | |
| 0.00 | 6.61 | 0.00 | 4.72 | -13.17 | 95.50 | -41.57 | 116.20 | 0.7223 | -833.0 | -742.6 | |
| 0.00 | 1.43 | 0.00 | 1.02 | -13.40 | 95.45 | -41.61 | 116.46 | 0.7240 | -742.0 | -678.2 | |
| 0.00 | 1.52 | 0.00 | 1.13 | -16.41 | 94.72 | -42.35 | 119.77 | 0.7467 | 305.0 | 161.0 | |
| 1.07 | -42.00 | 0.77 | -42.00 | -14.19 | 95.24 | -41.83 | 117.34 | 0.7302 | 477.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.95 | -12.13 | 95.67 | -41.40 | 114.96 | 0.7154 | 253.0 | 232.1 | |
| 0.00 | 1.34 | 0.00 | 0.97 | -14.49 | 95.12 | -41.94 | 117.65 | 0.7329 | 383.0 | 366.8 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -11.49 | 95.71 | -41.36 | 114.15 | 0.7120 | 390.0 | 343.5 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -11.69 | 95.59 | -41.48 | 114.35 | 0.7143 | 466.0 | 384.7 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -11.05 | 95.66 | -41.41 | 113.56 | 0.7104 | 510.0 | 389.2 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -16.24 | 94.47 | -42.60 | 119.42 | 0.7484 | -441.0 | -353.7 | |
| 3.84 | 10.63 | 2.95 | 8.15 | -18.34 | 93.76 | -43.30 | 121.52 | 0.7660 | -671.7 | -309.7 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -16.98 | 94.17 | -42.89 | 120.15 | 0.7551 | 229.0 | 153.3 | |
| 0.00 | 1.07 | 0.00 | 0.76 | -11.74 | 95.37 | -41.70 | 114.30 | 0.7169 | 420.0 | 369.2 | |
| 2.86 | 491.54 | 2.10 | 368.55 | -14.51 | 94.48 | -42.58 | 117.33 | 0.7397 | 478.6 | -369.4 | |
| 8.66 | -57.00 | 6.34 | -57.00 | -14.32 | 94.49 | -42.58 | 117.09 | 0.7387 | -231.6 | 999999 | |
| 0.89 | 2.95 | 0.68 | 2.23 | -16.61 | 93.59 | -43.48 | 119.38 | 0.7590 | -702.8 | -520.2 | |
| 0.00 | 2.77 | 0.00 | 2.15 | -18.28 | 92.99 | -44.08 | 121.02 | 0.7730 | -680.0 | -507.6 | |
| 0.00 | 2.77 | 0.00 | 1.97 | -11.07 | 94.75 | -42.32 | 113.11 | 0.7207 | -239.0 | -292.1 | |
| 7.86 | -57.00 | 5.80 | -57.00 | -14.20 | 93.96 | -43.11 | 116.66 | 0.7436 | -897.4 | 999999 | |
| 2.23 | 11.52 | 1.71 | 8.84 | -16.99 | 93.04 | -44.03 | 119.53 | 0.7662 | -773.2 | -621.1 | |
| 0.00 | 2.05 | 0.00 | 1.60 | -18.18 | 92.66 | -44.40 | 120.72 | 0.7756 | -489.0 | -402.9 | |
| 17.05 | -57.00 | 12.79 | -57.00 | -15.06 | 93.40 | -43.67 | 117.42 | 0.7534 | 299.8 | 999999 | |
| 4.64 | 11.52 | 3.62 | 8.98 | -17.75 | 92.58 | -44.49 | 120.18 | 0.7743 | -676.5 | -572.4 | |
| 3.30 | 67.59 | 2.42 | 49.56 | -12.25 | 93.54 | -43.53 | 114.02 | 0.7391 | -1053.4 | -498.2 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -10.84 | 93.73 | -43.33 | 112.32 | 0.7309 | -388.0 | -370.2 | |
| 72.50 | -57.00 | 54.64 | -57.00 | -14.24 | 92.82 | -44.24 | 116.12 | 0.7555 | -1059.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.12 | -12.86 | 93.15 | -43.92 | 114.59 | 0.7459 | -609.0 | -532.9 | |
| 8.48 | -67.00 | 6.25 | -67.00 | -12.16 | 93.18 | -43.89 | 113.72 | 0.7426 | -704.4 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.99 | -12.62 | 93.03 | -44.03 | 114.23 | 0.7461 | -535.0 | -455.5 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -12.99 | 92.86 | -44.20 | 114.60 | 0.7495 | -566.0 | -549.2 | |
| 0.00 | 1.25 | 0.00 | 0.98 | -16.82 | 91.66 | -45.41 | 118.61 | 0.7787 | -358.0 | -351.2 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -16.08 | 91.84 | -45.23 | 117.83 | 0.7737 | 296.0 | 260.8 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -16.77 | 91.49 | -45.57 | 118.47 | 0.7801 | -329.0 | -324.6 | |
| 0.00 | 1.16 | 0.00 | 0.88 | -12.92 | 91.87 | -45.19 | 114.03 | 0.7595 | -502.0 | -437.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -15.38 | 91.00 | -46.06 | 116.59 | 0.7787 | -454.0 | -469.3 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -15.22 | 90.96 | -46.11 | 116.38 | 0.7784 | -332.0 | -297.9 | |
| 1.25 | 28.84 | 0.98 | 22.71 | -14.84 | 90.93 | -46.13 | 115.91 | 0.7770 | -598.9 | -217.1 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -13.56 | 91.14 | -45.93 | 114.47 | 0.7697 | -320.0 | -263.3 | |
| 2.95 | -80.00 | 2.31 | -80.00 | -14.60 | 90.73 | -46.34 | 115.52 | 0.7781 | -562.8 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.17 | -12.82 | 91.18 | -45.88 | 113.59 | 0.7661 | -467.0 | -381.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
