SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 151.34 | 804.13 | 116.31 | 617.75 | 15.08 | 86.69 | -50.38 | 76.35 | 0.7676 | 229.5 | -78.2 | |
|
previous
or next observation for the same group /

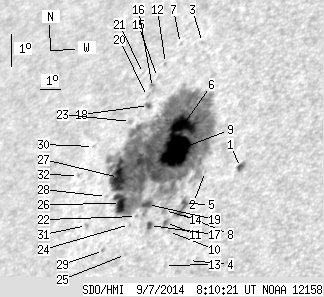

back to the solar disc SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 5.45 | 1.79 | 3.90 | 15.20 | 90.54 | -46.53 | 75.87 | 0.7245 | -732.8 | -580.6 | |
| 0.00 | 0.80 | 0.00 | 0.59 | 14.94 | 88.99 | -48.07 | 76.37 | 0.7420 | 489.0 | 454.4 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 18.81 | 87.51 | -49.56 | 71.40 | 0.7624 | 688.0 | 566.2 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 12.20 | 88.93 | -48.13 | 80.08 | 0.7413 | -391.0 | -374.7 | |
| 2.50 | 13.04 | 1.86 | 9.73 | 13.89 | 88.30 | -48.76 | 77.83 | 0.7491 | 555.1 | 134.2 | |
| 28.66 | 746.73 | 21.75 | 573.78 | 16.22 | 87.48 | -49.58 | 74.80 | 0.7598 | 976.5 | -74.3 | |
| 0.00 | 0.71 | 0.00 | 0.56 | 18.68 | 86.46 | -50.61 | 71.71 | 0.7733 | 338.0 | 322.5 | |
| 1.88 | -5.00 | 1.40 | -5.00 | 13.57 | 88.16 | -48.91 | 78.27 | 0.7506 | 351.2 | 999999 | |
| 64.91 | -6.00 | 49.27 | -6.00 | 15.44 | 87.40 | -49.67 | 75.84 | 0.7601 | 931.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 12.98 | 87.79 | -49.28 | 79.07 | 0.7544 | -539.0 | -468.8 | |
| 0.98 | 4.11 | 0.74 | 3.10 | 13.24 | 87.58 | -49.49 | 78.74 | 0.7569 | -650.9 | -492.0 | |
| 0.00 | 1.07 | 0.00 | 0.84 | 18.01 | 85.97 | -51.10 | 72.64 | 0.7777 | 381.0 | 372.7 | |
| 0.00 | 0.45 | 0.00 | 0.34 | 11.94 | 87.87 | -49.20 | 80.44 | 0.7533 | -481.0 | -419.2 | |
| 0.00 | 4.38 | 0.00 | 3.31 | 13.59 | 87.43 | -49.64 | 78.27 | 0.7587 | -151.0 | -214.6 | |
| 0.00 | 0.71 | 0.00 | 0.56 | 17.55 | 85.75 | -51.32 | 73.25 | 0.7795 | 373.0 | 311.1 | |
| 0.00 | 3.48 | 0.00 | 2.75 | 17.23 | 85.62 | -51.45 | 73.68 | 0.7806 | 523.0 | 403.0 | |
| 2.50 | 5.00 | 1.92 | 3.83 | 13.07 | 86.85 | -50.22 | 78.98 | 0.7649 | -783.1 | -566.8 | |
| 1.25 | 3.13 | 0.99 | 2.47 | 16.67 | 85.63 | -51.44 | 74.40 | 0.7800 | 417.9 | 234.7 | |
| 4.91 | -6.00 | 3.78 | -6.00 | 13.69 | 86.57 | -50.49 | 78.18 | 0.7681 | -792.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 16.93 | 85.48 | -51.59 | 74.07 | 0.7818 | -59.0 | -30.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 17.60 | 85.01 | -52.06 | 73.26 | 0.7873 | 195.0 | 234.7 | |
| 0.00 | 1.34 | 0.00 | 1.04 | 13.29 | 86.15 | -50.92 | 78.73 | 0.7726 | -711.0 | -619.7 | |
| 0.00 | 2.05 | 0.00 | 1.64 | 16.10 | 84.92 | -52.15 | 75.18 | 0.7870 | -357.0 | -302.6 | |
| 0.00 | 0.71 | 0.00 | 0.56 | 13.01 | 85.88 | -51.19 | 79.09 | 0.7754 | -619.0 | -569.0 | |
| 0.00 | 0.98 | 0.00 | 0.77 | 12.10 | 85.94 | -51.13 | 80.27 | 0.7747 | -382.0 | -289.5 | |
| 15.27 | -6.00 | 12.09 | -6.00 | 13.60 | 85.26 | -51.81 | 78.35 | 0.7823 | -829.8 | 999999 | |
| 25.98 | -6.00 | 20.72 | -6.00 | 14.37 | 84.91 | -52.16 | 77.39 | 0.7862 | -893.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.57 | 13.74 | 84.50 | -52.57 | 78.20 | 0.7903 | -373.0 | -297.8 | |
| 0.00 | 1.16 | 0.00 | 0.93 | 12.11 | 84.83 | -52.24 | 80.26 | 0.7865 | -404.0 | -387.5 | |
| 0.00 | 1.07 | 0.00 | 0.89 | 15.17 | 83.33 | -53.74 | 76.45 | 0.8028 | -416.0 | -356.3 | |
| 0.00 | 2.05 | 0.00 | 1.68 | 12.78 | 83.76 | -53.31 | 79.43 | 0.7977 | -526.0 | -411.3 | |
| 0.00 | 1.16 | 0.00 | 0.97 | 14.23 | 82.86 | -54.20 | 77.64 | 0.8071 | -294.0 | -256.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
