SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.81 | 146.54 | 35.01 | 143.40 | -9.24 | 194.54 | 57.47 | 254.78 | 0.8638 | 56.2 | 94.5 | |
|
previous
or next observation for the same group /

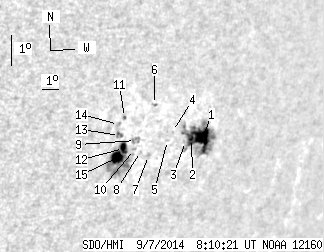

back to the solar disc SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.61 | 73.22 | 17.30 | 75.98 | -9.30 | 196.66 | 59.60 | 255.30 | 0.8819 | 680.2 | 291.7 | |
| 1.88 | -1.00 | 1.91 | -1.00 | -9.26 | 195.99 | 58.92 | 255.17 | 0.8764 | 868.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.26 | -9.31 | 195.64 | 58.58 | 255.01 | 0.8737 | 726.0 | 568.6 | |
| 0.00 | 0.63 | 0.00 | 0.61 | -8.90 | 194.78 | 57.71 | 255.24 | 0.8657 | 326.0 | 368.4 | |
| 0.00 | 0.80 | 0.00 | 0.79 | -9.16 | 194.55 | 57.49 | 254.89 | 0.8644 | 232.0 | 194.2 | |
| 0.00 | 1.61 | 0.00 | 1.52 | -7.93 | 193.53 | 56.47 | 256.00 | 0.8529 | -504.0 | -353.4 | |
| 0.00 | 1.88 | 0.00 | 1.79 | -9.52 | 193.57 | 56.50 | 254.20 | 0.8568 | 311.0 | 292.9 | |
| 0.00 | 0.89 | 0.00 | 0.84 | -9.34 | 193.08 | 56.01 | 254.26 | 0.8521 | 363.0 | 364.2 | |
| 0.00 | 5.54 | 0.00 | 5.14 | -8.96 | 192.71 | 55.65 | 254.59 | 0.8480 | -363.0 | -289.3 | |
| 0.00 | 1.61 | 0.00 | 1.50 | -9.24 | 192.73 | 55.66 | 254.27 | 0.8488 | -225.0 | -84.7 | |
| 0.36 | 1.34 | 0.32 | 1.21 | -8.16 | 191.95 | 54.88 | 255.29 | 0.8392 | -276.0 | -241.1 | |
| 5.98 | 51.61 | 5.48 | 47.19 | -9.15 | 192.11 | 55.04 | 254.20 | 0.8430 | -444.6 | -85.9 | |
| 0.00 | 4.02 | 0.00 | 3.64 | -8.71 | 191.79 | 54.73 | 254.61 | 0.8391 | -607.0 | -585.5 | |
| 0.00 | 2.14 | 0.00 | 1.93 | -8.35 | 191.67 | 54.60 | 254.99 | 0.8371 | -640.0 | -528.5 | |
| 10.98 | -12.00 | 10.00 | -12.00 | -9.40 | 191.84 | 54.78 | 253.83 | 0.8413 | -765.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
