SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.71 | 54.47 | 14.59 | 29.78 | -14.45 | 149.51 | 12.44 | 209.77 | 0.4242 | 43.6 | -3.4 | |
|
previous
or next observation for the same group /

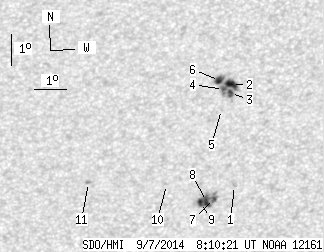

back to the solar disc SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.14 | -16.00 | 150.30 | 13.23 | 209.34 | 0.4509 | -719.0 | -554.1 | |
| 6.70 | 28.93 | 3.62 | 15.65 | -12.71 | 150.01 | 12.94 | 212.87 | 0.4043 | 1029.4 | 702.9 | |
| 2.95 | -2.00 | 1.60 | -2.00 | -13.00 | 149.99 | 12.93 | 212.44 | 0.4080 | 862.9 | 999999 | |
| 1.70 | -2.00 | 0.92 | -2.00 | -12.86 | 149.76 | 12.70 | 212.16 | 0.4042 | 887.1 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -13.50 | 149.73 | 12.67 | 211.25 | 0.4127 | 401.0 | 393.8 | |
| 4.46 | -2.00 | 2.41 | -2.00 | -12.57 | 149.62 | 12.55 | 212.27 | 0.3991 | 1064.7 | 999999 | |
| 1.34 | 20.27 | 0.74 | 11.24 | -16.41 | 149.68 | 12.61 | 207.74 | 0.4519 | -884.4 | -684.4 | |
| 5.63 | -7.00 | 3.12 | -7.00 | -16.50 | 149.43 | 12.36 | 207.17 | 0.4513 | -1019.4 | 999999 | |
| 3.93 | -7.00 | 2.18 | -7.00 | -16.53 | 149.24 | 12.17 | 206.78 | 0.4503 | -983.6 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -15.90 | 148.11 | 11.04 | 205.23 | 0.4339 | -535.0 | -420.0 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -15.78 | 145.61 | 8.55 | 200.15 | 0.4169 | -846.0 | -648.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
