SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.81 | 68.29 | 20.88 | 141.38 | -16.51 | 63.97 | -73.09 | 109.08 | 0.9711 | 136.8 | -25.7 | |
|
previous
or next observation for the same group /

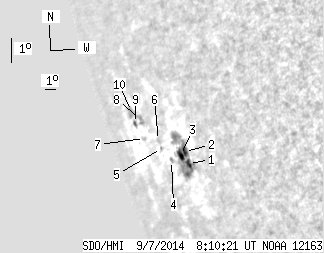

back to the solar disc SDO HMI 2014-09-07 08:10:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.04 | 47.50 | 5.58 | 89.04 | -16.86 | 65.86 | -71.21 | 109.83 | 0.9643 | 413.8 | 80.4 | |
| 2.95 | -1.00 | 5.40 | -1.00 | -16.48 | 65.80 | -71.26 | 109.43 | 0.9641 | 504.1 | 999999 | |
| 3.93 | -1.00 | 7.48 | -1.00 | -16.68 | 65.22 | -71.85 | 109.50 | 0.9668 | -4.6 | 999999 | |
| 0.00 | 1.96 | 0.00 | 4.06 | -17.00 | 63.94 | -73.12 | 109.56 | 0.9722 | -99.0 | -110.8 | |
| 0.00 | 0.89 | 0.00 | 1.96 | -16.72 | 63.11 | -73.96 | 109.10 | 0.9751 | -253.0 | -219.5 | |
| 0.00 | 1.96 | 0.00 | 4.32 | -16.47 | 63.02 | -74.05 | 108.84 | 0.9752 | -238.0 | -219.6 | |
| 0.00 | 2.59 | 0.00 | 6.64 | -16.65 | 61.08 | -75.99 | 108.64 | 0.9819 | -355.0 | -303.4 | |
| 0.00 | 5.00 | 0.00 | 12.43 | -16.01 | 61.32 | -75.75 | 108.04 | 0.9807 | -494.0 | -447.7 | |
| 0.89 | 2.05 | 2.42 | 5.59 | -16.26 | 60.34 | -76.73 | 108.11 | 0.9839 | 49.8 | 63.0 | |
| 0.00 | 6.34 | 0.00 | 17.34 | -15.89 | 60.24 | -76.82 | 107.72 | 0.9839 | -2.0 | 25.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
