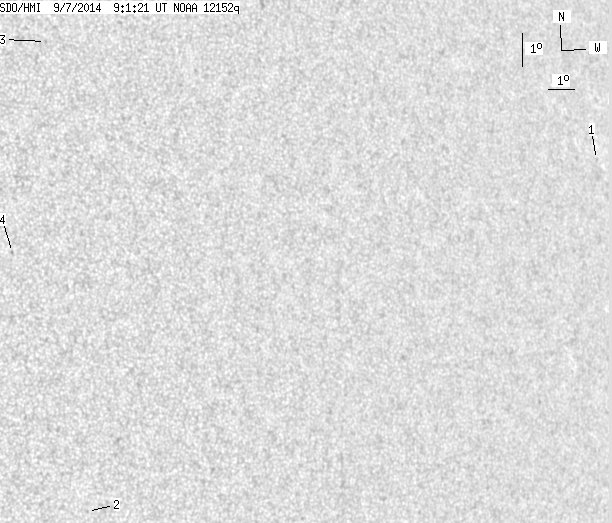

SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.46 | 0.00 | 2.83 | 10.44 | 173.86 | 37.25 | 277.92 | 0.5964 | 386.0 | 175.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 1.11 | 11.23 | 187.37 | 50.76 | 278.60 | 0.7706 | -331.0 | -376.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 2.27 | 165.98 | 29.38 | 261.81 | 0.4972 | 711.0 | 592.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 16.57 | 165.85 | 29.25 | 290.75 | 0.5028 | 316.0 | 328.1 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 10.24 | 163.86 | 27.26 | 278.35 | 0.4575 | 848.0 | 661.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
