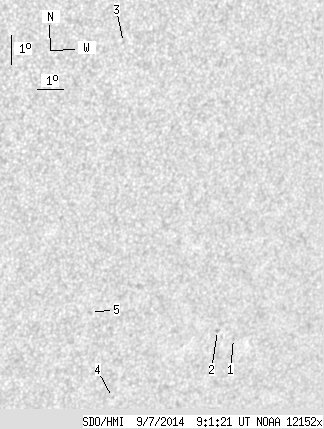

SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.98 | 0.00 | 4.00 | -20.15 | 168.97 | 32.37 | 228.81 | 0.6710 | 578.6 | 481.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.76 | -21.82 | 172.23 | 35.63 | 229.37 | 0.7148 | 421.0 | 390.0 | |
| 0.00 | 1.43 | 0.00 | 1.00 | -21.49 | 171.50 | 34.90 | 229.19 | 0.7056 | 671.0 | 549.8 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -11.63 | 166.12 | 29.52 | 237.50 | 0.5744 | 633.0 | 449.9 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -23.54 | 167.94 | 31.34 | 223.93 | 0.6896 | 550.0 | 524.7 | |
| 0.00 | 1.61 | 0.00 | 1.04 | -20.50 | 166.38 | 29.78 | 225.95 | 0.6495 | 618.0 | 476.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
