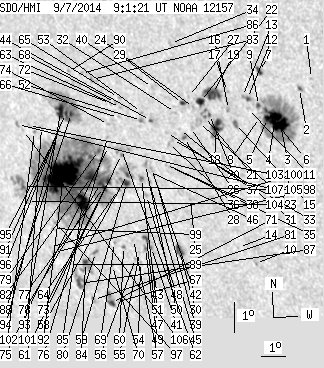

SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 213.55 | 960.18 | 152.26 | 690.81 | -13.80 | 94.95 | -41.65 | 117.01 | 0.7253 | -108.6 | -194.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.56 | -10.32 | 103.35 | -33.25 | 117.55 | 0.6106 | 721.0 | 545.7 | |
| 0.80 | 1.87 | 0.51 | 1.18 | -10.67 | 102.87 | -33.73 | 117.71 | 0.6187 | 733.3 | 627.5 | |
| 16.78 | 127.94 | 10.76 | 81.96 | -11.88 | 101.99 | -34.61 | 118.81 | 0.6366 | 1120.6 | 365.4 | |
| 9.91 | -3.00 | 6.35 | -3.00 | -11.63 | 101.84 | -34.76 | 118.36 | 0.6369 | 1146.0 | 999999 | |
| 3.30 | -3.00 | 2.13 | -3.00 | -11.72 | 101.53 | -35.08 | 118.26 | 0.6411 | 795.9 | 999999 | |
| 0.27 | -3.00 | 0.17 | -3.00 | -11.47 | 101.52 | -35.08 | 117.91 | 0.6396 | 637.0 | 999999 | |
| 2.41 | 4.11 | 1.54 | 2.62 | -10.24 | 101.43 | -35.17 | 116.10 | 0.6335 | -650.5 | -529.7 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -11.71 | 101.22 | -35.38 | 118.04 | 0.6446 | -223.0 | -192.0 | |
| 0.98 | -3.00 | 0.63 | -3.00 | -11.33 | 101.24 | -35.36 | 117.52 | 0.6421 | 724.4 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -16.51 | 100.18 | -36.42 | 123.66 | 0.6862 | -741.0 | -575.7 | |
| 0.00 | 1.43 | 0.00 | 0.93 | -11.45 | 100.84 | -35.76 | 117.43 | 0.6475 | 556.0 | 438.4 | |
| 1.16 | 2.41 | 0.75 | 1.56 | -11.13 | 100.85 | -35.75 | 116.99 | 0.6456 | 784.7 | 673.6 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -11.09 | 100.67 | -35.93 | 116.80 | 0.6475 | 581.0 | 528.2 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -16.03 | 99.62 | -36.98 | 122.66 | 0.6891 | -300.0 | -307.6 | |
| 1.34 | 3.66 | 0.88 | 2.40 | -11.97 | 100.27 | -36.33 | 117.77 | 0.6573 | 777.8 | 571.5 | |
| 0.00 | 1.70 | 0.00 | 1.11 | -11.54 | 100.06 | -36.54 | 117.04 | 0.6572 | 798.0 | 681.2 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -10.97 | 100.11 | -36.49 | 116.28 | 0.6534 | 822.0 | 583.6 | |
| 8.84 | 17.41 | 5.86 | 11.55 | -12.13 | 99.51 | -37.09 | 117.48 | 0.6670 | 816.6 | 546.3 | |
| 11.87 | 25.80 | 7.82 | 17.03 | -11.08 | 99.52 | -37.08 | 116.06 | 0.6610 | 835.4 | 611.5 | |
| 0.80 | 6.61 | 0.53 | 4.39 | -11.76 | 99.29 | -37.31 | 116.85 | 0.6674 | 637.1 | 420.3 | |
| 0.36 | -20.00 | 0.24 | -20.00 | -11.84 | 99.09 | -37.51 | 116.83 | 0.6702 | 525.5 | 999999 | |
| 4.55 | -19.00 | 3.03 | -19.00 | -11.37 | 99.01 | -37.60 | 116.14 | 0.6685 | 671.3 | 999999 | |
| 0.00 | 5.54 | 0.00 | 3.70 | -12.06 | 98.82 | -37.78 | 116.95 | 0.6745 | -84.0 | 41.1 | |
| 0.00 | 2.05 | 0.00 | 1.37 | -11.59 | 98.70 | -37.90 | 116.24 | 0.6733 | 251.0 | 100.7 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -14.59 | 98.02 | -38.58 | 119.78 | 0.6976 | 639.0 | 617.7 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -12.24 | 98.47 | -38.13 | 116.99 | 0.6795 | 441.0 | 295.4 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -11.25 | 98.56 | -38.04 | 115.70 | 0.6731 | 412.0 | 369.9 | |
| 0.62 | 1.79 | 0.42 | 1.21 | -12.59 | 98.17 | -38.43 | 117.26 | 0.6847 | 470.4 | 320.5 | |
| 1.70 | 2.95 | 1.14 | 1.98 | -11.49 | 98.28 | -38.32 | 115.87 | 0.6776 | 464.3 | 219.0 | |
| 5.45 | 8.21 | 3.85 | 5.81 | -16.32 | 97.18 | -39.42 | 121.42 | 0.7164 | 739.3 | 504.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -12.34 | 98.02 | -38.58 | 116.84 | 0.6851 | -225.0 | -236.3 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -11.81 | 97.95 | -38.65 | 116.09 | 0.6830 | -190.0 | -168.5 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -12.69 | 97.68 | -38.93 | 117.10 | 0.6908 | 130.0 | 203.6 | |
| 0.00 | 2.14 | 0.00 | 1.43 | -9.61 | 98.09 | -38.51 | 113.18 | 0.6701 | 470.0 | 403.4 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -13.58 | 97.38 | -39.22 | 118.08 | 0.6989 | 682.0 | 561.2 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -12.83 | 97.49 | -39.11 | 117.17 | 0.6937 | 503.0 | 404.9 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -12.48 | 97.47 | -39.13 | 116.70 | 0.6920 | -320.0 | -402.5 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -13.53 | 97.23 | -39.37 | 117.92 | 0.7003 | 570.0 | 496.3 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -14.12 | 96.75 | -39.85 | 118.38 | 0.7087 | 756.0 | 634.2 | |
| 0.00 | 1.70 | 0.00 | 1.15 | -11.08 | 97.16 | -39.44 | 114.65 | 0.6883 | -361.0 | -284.7 | |
| 0.45 | 1.79 | 0.32 | 1.29 | -16.32 | 96.03 | -40.57 | 120.70 | 0.7283 | 576.2 | 539.4 | |
| 0.00 | 2.05 | 0.00 | 1.44 | -13.71 | 96.63 | -39.97 | 117.79 | 0.7078 | 670.0 | 573.5 | |
| 0.00 | 1.61 | 0.00 | 1.17 | -16.79 | 95.91 | -40.70 | 121.20 | 0.7321 | 235.0 | 377.3 | |
| 0.62 | 1.87 | 0.43 | 1.29 | -12.15 | 96.89 | -39.71 | 115.92 | 0.6968 | -612.9 | -580.0 | |
| 0.00 | 1.96 | 0.00 | 1.38 | -14.17 | 96.45 | -40.15 | 118.28 | 0.7122 | 629.0 | 500.7 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -13.82 | 96.48 | -40.12 | 117.84 | 0.7099 | 251.0 | 265.3 | |
| 2.32 | 4.02 | 1.67 | 2.90 | -16.04 | 95.89 | -40.71 | 120.27 | 0.7281 | 719.5 | 578.6 | |
| 0.00 | 1.96 | 0.00 | 1.39 | -14.61 | 96.23 | -40.37 | 118.70 | 0.7169 | 508.0 | 330.0 | |
| 0.45 | 3.12 | 0.32 | 2.26 | -16.38 | 95.76 | -40.84 | 120.61 | 0.7313 | 524.0 | 402.4 | |
| 0.00 | 2.95 | 0.00 | 2.06 | -13.60 | 96.41 | -40.19 | 117.52 | 0.7096 | 270.0 | 248.5 | |
| 0.98 | 2.32 | 0.69 | 1.64 | -14.07 | 96.14 | -40.46 | 117.97 | 0.7150 | 607.0 | 478.5 | |
| 0.00 | 2.86 | 0.00 | 1.98 | -12.18 | 96.52 | -40.08 | 115.75 | 0.7010 | 677.0 | 503.7 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -11.92 | 96.57 | -40.03 | 115.44 | 0.6992 | 737.0 | 517.2 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -16.86 | 95.42 | -41.18 | 121.00 | 0.7374 | 447.0 | 272.9 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -16.53 | 95.47 | -41.13 | 120.63 | 0.7351 | 105.0 | 43.0 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -16.75 | 95.25 | -41.36 | 120.75 | 0.7385 | 231.0 | 179.6 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -16.12 | 95.33 | -41.27 | 120.04 | 0.7344 | 127.0 | 145.8 | |
| 1.43 | 16.25 | 1.02 | 11.55 | -13.99 | 95.58 | -41.02 | 117.54 | 0.7205 | 455.9 | -124.0 | |
| 3.30 | 507.92 | 2.36 | 377.21 | -14.29 | 95.48 | -41.13 | 117.86 | 0.7232 | 730.2 | -340.0 | |
| 0.54 | 1.52 | 0.39 | 1.12 | -16.39 | 94.83 | -41.77 | 120.08 | 0.7408 | 410.0 | 268.1 | |
| 0.36 | 1.25 | 0.25 | 0.89 | -13.36 | 95.47 | -41.13 | 116.68 | 0.7185 | -818.0 | -737.0 | |
| 0.00 | 7.32 | 0.00 | 5.19 | -13.19 | 95.51 | -41.09 | 116.49 | 0.7173 | -894.0 | -743.8 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -11.83 | 95.73 | -40.87 | 114.86 | 0.7081 | 501.0 | 455.5 | |
| 0.45 | 1.52 | 0.32 | 1.09 | -14.52 | 95.09 | -41.51 | 117.92 | 0.7284 | 435.8 | 339.1 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -11.52 | 95.71 | -40.89 | 114.43 | 0.7069 | 586.0 | 424.9 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -12.16 | 95.59 | -41.01 | 115.21 | 0.7113 | 322.0 | 290.7 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -18.27 | 94.08 | -42.52 | 121.88 | 0.7581 | -556.0 | -505.6 | |
| 0.00 | 1.16 | 0.00 | 0.81 | -11.69 | 95.55 | -41.05 | 114.57 | 0.7094 | 418.0 | 343.7 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -16.29 | 94.48 | -42.12 | 119.75 | 0.7439 | -429.0 | -426.5 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -17.07 | 94.18 | -42.42 | 120.52 | 0.7509 | 372.0 | 226.2 | |
| 2.77 | 8.57 | 2.11 | 6.52 | -18.33 | 93.76 | -42.84 | 121.77 | 0.7615 | -742.2 | -311.6 | |
| 0.00 | 1.52 | 0.00 | 1.07 | -11.74 | 95.34 | -41.26 | 114.52 | 0.7121 | 435.0 | 365.9 | |
| 2.95 | -59.00 | 2.13 | -59.00 | -14.26 | 94.73 | -41.87 | 117.40 | 0.7309 | 156.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -12.43 | 95.12 | -41.48 | 115.30 | 0.7177 | -731.0 | -646.2 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -13.14 | 94.98 | -41.62 | 116.13 | 0.7228 | -707.0 | -649.3 | |
| 0.00 | 1.16 | 0.00 | 0.83 | -12.85 | 95.00 | -41.60 | 115.77 | 0.7212 | -796.0 | -650.6 | |
| 1.70 | -59.00 | 1.23 | -59.00 | -14.51 | 94.46 | -42.14 | 117.56 | 0.7350 | 507.7 | 999999 | |
| 2.50 | -59.00 | 1.82 | -59.00 | -14.38 | 94.36 | -42.24 | 117.35 | 0.7354 | -2.9 | 999999 | |
| 1.52 | -59.00 | 1.09 | -59.00 | -13.31 | 94.52 | -42.08 | 116.10 | 0.7285 | -825.1 | 999999 | |
| 0.00 | 3.12 | 0.00 | 2.35 | -16.70 | 93.55 | -43.05 | 119.72 | 0.7552 | -825.0 | -646.9 | |
| 0.00 | 2.50 | 0.00 | 1.93 | -18.30 | 92.98 | -43.62 | 121.29 | 0.7688 | -772.0 | -508.7 | |
| 10.71 | -59.00 | 7.84 | -59.00 | -14.19 | 94.03 | -42.57 | 116.93 | 0.7380 | -872.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.01 | -11.03 | 94.68 | -41.92 | 113.26 | 0.7161 | -568.0 | -468.9 | |
| 1.96 | 15.00 | 1.50 | 11.44 | -17.08 | 93.00 | -43.60 | 119.87 | 0.7625 | -848.6 | -618.6 | |
| 15.09 | -59.00 | 11.23 | -59.00 | -15.08 | 93.42 | -43.18 | 117.70 | 0.7485 | 449.6 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.08 | -10.88 | 94.29 | -42.31 | 112.86 | 0.7197 | -731.0 | -538.3 | |
| 3.39 | 13.30 | 2.63 | 10.29 | -17.82 | 92.51 | -44.09 | 120.47 | 0.7708 | -633.3 | -605.2 | |
| 1.96 | 63.84 | 1.43 | 46.46 | -12.21 | 93.62 | -42.98 | 114.23 | 0.7331 | -1118.4 | -513.1 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -17.21 | 92.26 | -44.34 | 119.62 | 0.7703 | -444.0 | -408.2 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -10.86 | 93.75 | -42.85 | 112.58 | 0.7257 | -715.0 | -498.5 | |
| 1.34 | -88.00 | 0.98 | -88.00 | -12.23 | 93.36 | -43.24 | 114.13 | 0.7360 | -883.3 | 999999 | |
| 76.42 | -59.00 | 57.09 | -59.00 | -14.23 | 92.82 | -43.78 | 116.34 | 0.7507 | -1009.1 | 999999 | |
| 7.50 | -88.00 | 5.48 | -88.00 | -12.18 | 93.15 | -43.45 | 113.97 | 0.7379 | -708.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -12.61 | 93.02 | -43.58 | 114.44 | 0.7413 | -556.0 | -455.2 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -12.84 | 92.93 | -43.68 | 114.68 | 0.7433 | -677.0 | -553.7 | |
| 0.00 | 1.34 | 0.00 | 0.99 | -12.95 | 92.82 | -43.78 | 114.76 | 0.7449 | -608.0 | -531.5 | |
| 0.00 | 1.43 | 0.00 | 1.10 | -15.86 | 92.04 | -44.57 | 117.90 | 0.7661 | 396.0 | 272.3 | |
| 0.00 | 1.16 | 0.00 | 0.91 | -16.87 | 91.65 | -44.95 | 118.91 | 0.7746 | -463.0 | -367.9 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -16.07 | 91.84 | -44.76 | 118.06 | 0.7690 | 483.0 | 374.0 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -16.72 | 91.51 | -45.09 | 118.66 | 0.7752 | -354.0 | -294.5 | |
| 0.00 | 1.07 | 0.00 | 0.80 | -12.78 | 92.20 | -44.40 | 114.24 | 0.7506 | -609.0 | -382.2 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -12.94 | 91.86 | -44.74 | 114.28 | 0.7548 | -602.0 | -473.8 | |
| 0.00 | 1.16 | 0.00 | 0.88 | -12.77 | 91.64 | -44.96 | 113.96 | 0.7564 | -553.0 | -480.2 | |
| 0.00 | 1.61 | 0.00 | 1.25 | -15.28 | 90.95 | -45.65 | 116.66 | 0.7742 | -505.0 | -420.7 | |
| 1.70 | 21.16 | 1.32 | 16.50 | -14.80 | 90.91 | -45.70 | 116.07 | 0.7725 | -617.5 | -289.0 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -12.95 | 91.38 | -45.23 | 114.06 | 0.7599 | -184.0 | -278.4 | |
| 0.00 | 2.23 | 0.00 | 1.70 | -12.78 | 91.15 | -45.45 | 113.74 | 0.7615 | -429.0 | -371.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
