SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.85 | 144.71 | 42.96 | 143.92 | -9.22 | 194.53 | 57.92 | 254.92 | 0.8675 | 136.4 | 46.9 | |
|
previous
or next observation for the same group /

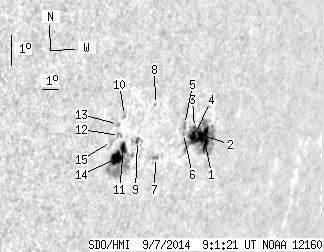

back to the solar disc SDO HMI 2014-09-07 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.27 | 72.76 | 5.64 | 76.90 | -9.51 | 196.96 | 60.36 | 255.27 | 0.8882 | 367.7 | 176.6 | |
| 12.41 | -1.00 | 13.13 | -1.00 | -9.23 | 196.69 | 60.09 | 255.51 | 0.8856 | 698.9 | 999999 | |
| 0.98 | -1.00 | 1.02 | -1.00 | -8.92 | 196.11 | 59.51 | 255.70 | 0.8805 | 612.3 | 999999 | |
| 7.14 | -1.00 | 7.42 | -1.00 | -9.20 | 196.13 | 59.53 | 255.39 | 0.8811 | 819.8 | 999999 | |
| 0.00 | 2.14 | 0.00 | 2.18 | -8.75 | 195.47 | 58.86 | 255.72 | 0.8749 | 397.0 | 447.4 | |
| 0.00 | 1.07 | 0.00 | 1.09 | -9.03 | 195.48 | 58.88 | 255.41 | 0.8756 | 670.0 | 608.7 | |
| 0.00 | 2.50 | 0.00 | 2.45 | -9.62 | 194.00 | 57.40 | 254.35 | 0.8646 | 671.0 | 585.2 | |
| 0.00 | 0.80 | 0.00 | 0.77 | -7.92 | 193.59 | 56.99 | 256.15 | 0.8575 | -335.0 | -231.4 | |
| 1.07 | 5.09 | 1.01 | 4.79 | -8.96 | 192.82 | 56.22 | 254.76 | 0.8530 | -298.2 | -219.4 | |
| 0.00 | 1.61 | 0.00 | 1.47 | -8.08 | 191.91 | 55.31 | 255.50 | 0.8430 | -273.0 | -284.2 | |
| 4.73 | 50.62 | 4.38 | 46.86 | -9.13 | 192.09 | 55.49 | 254.35 | 0.8470 | -506.5 | -59.0 | |
| 0.00 | 2.95 | 0.00 | 2.70 | -8.69 | 191.77 | 55.17 | 254.76 | 0.8431 | -616.0 | -612.9 | |
| 0.00 | 1.96 | 0.00 | 1.79 | -8.33 | 191.64 | 55.04 | 255.13 | 0.8411 | -666.0 | -578.3 | |
| 11.25 | -11.00 | 10.36 | -11.00 | -9.41 | 191.78 | 55.17 | 253.94 | 0.8448 | -769.5 | 999999 | |
| 0.00 | 3.21 | 0.00 | 2.92 | -8.83 | 191.37 | 54.77 | 254.48 | 0.8399 | -363.0 | -378.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
