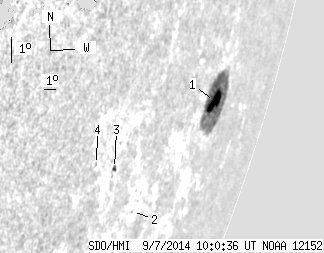

SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.55 | 97.48 | 29.28 | 200.65 | -14.37 | 209.45 | 73.39 | 253.14 | 0.9708 | 300.0 | 80.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.39 | 93.73 | 27.70 | 195.53 | -14.34 | 209.66 | 73.60 | 253.22 | 0.9718 | 371.8 | 86.4 | |
| 0.00 | 0.54 | 0.00 | 0.83 | -17.18 | 204.04 | 67.98 | 249.10 | 0.9494 | -298.0 | -276.8 | |
| 1.16 | 2.32 | 1.58 | 3.15 | -15.48 | 201.42 | 65.36 | 250.20 | 0.9326 | -195.3 | -85.4 | |
| 0.00 | 0.89 | 0.00 | 1.14 | -15.17 | 199.91 | 63.85 | 250.12 | 0.9229 | -307.0 | -274.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
