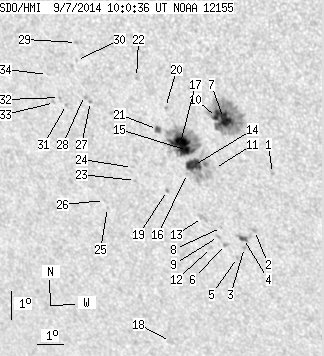

SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.54 | 248.42 | 41.24 | 158.85 | -19.89 | 107.23 | -28.83 | 134.22 | 0.6350 | 600.2 | 409.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.78 | -20.58 | 109.86 | -26.20 | 137.72 | 0.6167 | 741.0 | 557.9 | |
| 0.00 | 2.05 | 0.00 | 1.33 | -22.61 | 108.79 | -27.27 | 138.89 | 0.6456 | 669.0 | 460.4 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -23.23 | 108.28 | -27.78 | 139.06 | 0.6559 | 522.0 | 457.8 | |
| 2.41 | 5.98 | 1.57 | 3.90 | -22.91 | 108.32 | -27.74 | 138.75 | 0.6526 | 790.6 | 638.7 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -23.60 | 107.93 | -28.13 | 139.12 | 0.6623 | 402.0 | 367.0 | |
| 0.00 | 1.96 | 0.00 | 1.29 | -23.17 | 107.59 | -28.47 | 138.31 | 0.6613 | 695.0 | 589.1 | |
| 16.16 | 88.64 | 10.12 | 55.43 | -18.81 | 108.42 | -27.64 | 134.10 | 0.6138 | 1032.1 | 544.3 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -22.58 | 107.57 | -28.49 | 137.65 | 0.6560 | 420.0 | 422.3 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -22.90 | 107.39 | -28.67 | 137.83 | 0.6606 | 463.0 | 380.8 | |
| 2.14 | -7.00 | 1.34 | -7.00 | -18.79 | 108.17 | -27.89 | 133.82 | 0.6161 | 812.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -20.54 | 107.76 | -28.30 | 135.51 | 0.6358 | 254.0 | 241.6 | |
| 0.00 | 1.34 | 0.00 | 0.89 | -23.31 | 107.03 | -29.03 | 137.93 | 0.6674 | 244.0 | 309.5 | |
| 0.00 | 4.28 | 0.00 | 2.81 | -22.27 | 106.93 | -29.13 | 136.69 | 0.6590 | 781.0 | 637.4 | |
| 12.50 | 39.28 | 8.06 | 25.31 | -20.49 | 106.99 | -29.07 | 134.70 | 0.6426 | 811.7 | 295.9 | |
| 7.50 | 74.63 | 4.82 | 47.89 | -19.99 | 106.88 | -29.18 | 134.00 | 0.6393 | 878.0 | 461.1 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -20.78 | 106.71 | -29.35 | 134.77 | 0.6478 | -11.0 | 33.4 | |
| 21.78 | -15.00 | 14.00 | -15.00 | -19.73 | 106.67 | -29.39 | 133.49 | 0.6390 | 996.4 | 999999 | |
| 0.00 | 4.11 | 0.00 | 2.92 | -26.82 | 104.47 | -31.59 | 139.29 | 0.7192 | -77.0 | -195.5 | |
| 0.00 | 1.43 | 0.00 | 0.94 | -21.42 | 105.82 | -30.24 | 134.68 | 0.6617 | 604.0 | 550.0 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -18.57 | 106.35 | -29.71 | 131.78 | 0.6323 | 696.0 | 706.6 | |
| 2.05 | 3.66 | 1.33 | 2.36 | -19.34 | 105.90 | -30.16 | 132.30 | 0.6432 | 675.7 | 522.3 | |
| 0.00 | 2.05 | 0.00 | 1.31 | -17.63 | 105.46 | -30.60 | 129.78 | 0.6335 | 364.0 | 338.4 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -21.15 | 104.67 | -31.39 | 133.33 | 0.6701 | 540.0 | 476.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -20.71 | 104.66 | -31.40 | 132.81 | 0.6666 | 651.0 | 520.4 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -22.17 | 103.34 | -32.72 | 133.35 | 0.6907 | -433.0 | -321.6 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -21.94 | 103.28 | -32.78 | 133.04 | 0.6894 | -412.0 | -402.0 | |
| 0.00 | 1.43 | 0.00 | 0.94 | -18.56 | 103.55 | -32.51 | 129.27 | 0.6604 | -529.0 | -413.2 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -18.38 | 103.37 | -32.69 | 128.89 | 0.6608 | -417.0 | -535.8 | |
| 0.00 | 1.61 | 0.00 | 1.04 | -16.62 | 103.42 | -32.64 | 126.72 | 0.6469 | -743.0 | -644.1 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -17.22 | 103.31 | -32.75 | 127.39 | 0.6527 | -461.0 | -402.3 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -18.73 | 102.60 | -33.46 | 128.69 | 0.6712 | -690.0 | -538.8 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -18.51 | 102.38 | -33.68 | 128.25 | 0.6718 | -616.0 | -516.1 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.70 | 102.15 | -33.91 | 128.28 | 0.6756 | -400.0 | -370.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -17.77 | 102.09 | -33.97 | 127.09 | 0.6694 | -695.0 | -592.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
