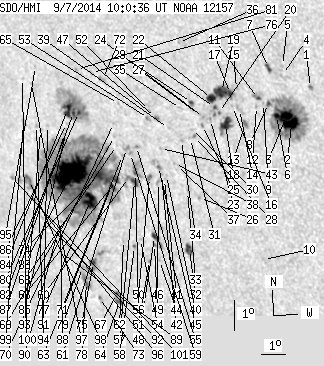

SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 204.70 | 937.19 | 144.95 | 667.63 | -13.75 | 95.00 | -41.06 | 117.27 | 0.7187 | -115.1 | -187.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.32 | 0.00 | 1.45 | -10.69 | 102.92 | -33.14 | 118.17 | 0.6116 | 816.0 | 699.5 | |
| 14.28 | 126.85 | 9.09 | 80.71 | -11.90 | 102.06 | -34.00 | 119.27 | 0.6296 | 1089.4 | 363.6 | |
| 10.62 | -2.00 | 6.76 | -2.00 | -11.65 | 101.90 | -34.16 | 118.82 | 0.6299 | 1094.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -10.35 | 101.93 | -34.13 | 116.97 | 0.6215 | -261.0 | -271.6 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -10.06 | 101.97 | -34.09 | 116.58 | 0.6194 | -13.0 | 51.9 | |
| 2.95 | -2.00 | 1.88 | -2.00 | -11.68 | 101.53 | -34.53 | 118.58 | 0.6345 | 752.5 | 999999 | |
| 2.14 | 3.75 | 1.36 | 2.38 | -10.17 | 101.43 | -34.63 | 116.36 | 0.6265 | -738.2 | -598.5 | |
| 1.25 | -2.00 | 0.80 | -2.00 | -11.32 | 101.28 | -34.78 | 117.90 | 0.6352 | 704.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -11.33 | 101.09 | -34.97 | 117.79 | 0.6375 | 553.0 | 467.5 | |
| 0.00 | 1.70 | 0.00 | 1.14 | -16.43 | 100.18 | -35.88 | 123.95 | 0.6801 | -626.0 | -487.7 | |
| 0.98 | 7.23 | 0.63 | 4.64 | -11.18 | 100.92 | -35.14 | 117.47 | 0.6387 | 759.2 | 512.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -11.45 | 100.81 | -35.25 | 117.76 | 0.6416 | 588.0 | 527.0 | |
| 0.00 | 3.84 | 0.00 | 2.50 | -12.03 | 100.30 | -35.76 | 118.22 | 0.6509 | 787.0 | 610.7 | |
| 0.00 | 4.55 | 0.00 | 2.96 | -11.59 | 100.14 | -35.92 | 117.51 | 0.6503 | 753.0 | 609.0 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -10.93 | 100.12 | -35.94 | 116.57 | 0.6466 | 769.0 | 636.6 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -11.52 | 99.88 | -36.18 | 117.24 | 0.6528 | 601.0 | 493.9 | |
| 2.59 | 28.30 | 1.68 | 18.51 | -11.11 | 99.87 | -36.19 | 116.66 | 0.6507 | 935.1 | 627.9 | |
| 8.84 | 14.28 | 5.81 | 9.40 | -12.12 | 99.52 | -36.54 | 117.82 | 0.6605 | 792.5 | 543.1 | |
| 11.07 | -17.00 | 7.24 | -17.00 | -11.07 | 99.53 | -36.53 | 116.39 | 0.6544 | 794.6 | 999999 | |
| 0.36 | 6.70 | 0.24 | 4.42 | -11.75 | 99.31 | -36.75 | 117.19 | 0.6609 | 718.2 | 342.2 | |
| 0.89 | -20.00 | 0.59 | -20.00 | -11.60 | 99.18 | -36.88 | 116.90 | 0.6616 | 557.4 | 999999 | |
| 5.45 | -17.00 | 3.59 | -17.00 | -11.32 | 99.10 | -36.96 | 116.47 | 0.6608 | 674.9 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.12 | -12.00 | 98.96 | -37.10 | 117.30 | 0.6663 | 369.0 | 222.6 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -11.96 | 98.69 | -37.37 | 117.08 | 0.6692 | -206.0 | -218.7 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -12.22 | 98.61 | -37.45 | 117.38 | 0.6716 | 511.0 | 393.6 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -14.58 | 98.05 | -38.01 | 120.12 | 0.6913 | 630.0 | 588.3 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -11.88 | 98.51 | -37.55 | 116.85 | 0.6708 | -332.0 | -300.3 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -12.60 | 98.23 | -37.83 | 117.65 | 0.6780 | 557.0 | 382.5 | |
| 1.25 | 2.32 | 0.83 | 1.55 | -11.51 | 98.30 | -37.76 | 116.23 | 0.6713 | 412.1 | 262.2 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -12.38 | 98.15 | -37.91 | 117.31 | 0.6777 | -250.0 | -253.6 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -12.68 | 98.06 | -38.00 | 117.65 | 0.6804 | -37.0 | -82.8 | |
| 4.73 | 7.50 | 3.32 | 5.26 | -16.34 | 97.26 | -38.80 | 121.83 | 0.7101 | 726.5 | 489.9 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -14.42 | 97.60 | -38.46 | 119.63 | 0.6953 | 628.0 | 567.7 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -12.77 | 97.69 | -38.37 | 117.54 | 0.6851 | 518.0 | 395.4 | |
| 0.00 | 1.96 | 0.00 | 1.32 | -11.74 | 97.83 | -38.23 | 116.25 | 0.6779 | -134.0 | -121.9 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -9.63 | 98.07 | -37.99 | 113.50 | 0.6641 | 547.0 | 456.9 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -13.60 | 97.33 | -38.73 | 118.41 | 0.6937 | 621.0 | 619.0 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -13.55 | 97.26 | -38.80 | 118.29 | 0.6941 | 612.0 | 527.9 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -12.43 | 97.23 | -38.83 | 116.80 | 0.6883 | -523.0 | -498.2 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -13.97 | 96.85 | -39.21 | 118.58 | 0.7008 | 646.0 | 514.6 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -14.10 | 96.75 | -39.31 | 118.69 | 0.7028 | 744.0 | 625.6 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -13.95 | 96.66 | -39.40 | 118.44 | 0.7029 | 724.0 | 557.6 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -13.10 | 96.79 | -39.27 | 117.42 | 0.6969 | -654.0 | -529.0 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -16.81 | 95.91 | -40.15 | 121.56 | 0.7267 | 555.0 | 471.9 | |
| 0.54 | 6.78 | 0.37 | 4.71 | -13.70 | 96.59 | -39.47 | 118.07 | 0.7023 | 547.0 | 363.4 | |
| 0.00 | 2.41 | 0.00 | 1.68 | -14.22 | 96.48 | -39.58 | 118.68 | 0.7063 | 642.0 | 501.4 | |
| 0.54 | 2.59 | 0.37 | 1.77 | -12.11 | 96.77 | -39.29 | 116.12 | 0.6919 | -693.3 | -590.7 | |
| 2.59 | 6.78 | 1.85 | 4.84 | -16.02 | 95.90 | -40.16 | 120.59 | 0.7224 | 711.7 | 569.6 | |
| 0.00 | 1.52 | 0.00 | 1.09 | -16.29 | 95.83 | -40.23 | 120.88 | 0.7245 | 523.0 | 454.3 | |
| 1.34 | 2.77 | 0.94 | 1.94 | -14.09 | 96.14 | -39.92 | 118.31 | 0.7093 | 583.9 | 463.3 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -16.84 | 95.49 | -40.57 | 121.34 | 0.7312 | 423.0 | 371.9 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -11.91 | 96.56 | -39.50 | 115.73 | 0.6931 | 587.0 | 512.1 | |
| 0.00 | 2.77 | 0.00 | 1.90 | -12.17 | 96.48 | -39.58 | 116.02 | 0.6954 | 632.0 | 383.6 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -16.17 | 95.28 | -40.78 | 120.40 | 0.7295 | 306.0 | 206.9 | |
| 0.00 | 1.79 | 0.00 | 1.25 | -13.12 | 95.81 | -40.25 | 116.87 | 0.7077 | -816.0 | -748.2 | |
| 0.89 | 12.14 | 0.63 | 8.55 | -14.01 | 95.58 | -40.48 | 117.88 | 0.7148 | 487.6 | -88.3 | |
| 3.75 | 508.30 | 2.66 | 374.09 | -14.27 | 95.49 | -40.57 | 118.15 | 0.7173 | 715.2 | -330.8 | |
| 0.62 | 1.43 | 0.45 | 1.04 | -16.43 | 94.97 | -41.09 | 120.52 | 0.7342 | 297.7 | 209.7 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -13.37 | 95.51 | -40.55 | 117.02 | 0.7123 | -885.0 | -777.9 | |
| 0.62 | -57.00 | 0.44 | -57.00 | -14.16 | 95.26 | -40.80 | 117.89 | 0.7191 | 555.0 | 999999 | |
| 0.00 | 3.12 | 0.00 | 2.20 | -13.22 | 95.38 | -40.68 | 116.76 | 0.7129 | -880.0 | -806.9 | |
| 0.00 | 1.25 | 0.00 | 0.91 | -16.27 | 94.55 | -41.51 | 120.08 | 0.7376 | -324.0 | -357.9 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -13.46 | 95.17 | -40.89 | 116.94 | 0.7165 | -722.0 | -554.1 | |
| 2.41 | 7.77 | 1.82 | 5.85 | -18.35 | 93.79 | -42.27 | 122.12 | 0.7561 | -720.3 | -397.2 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -11.79 | 95.33 | -40.73 | 114.88 | 0.7063 | 474.0 | 432.5 | |
| 1.79 | -57.00 | 1.28 | -57.00 | -14.31 | 94.73 | -41.33 | 117.76 | 0.7254 | 429.0 | 999999 | |
| 0.89 | -64.00 | 0.67 | -64.00 | -18.09 | 93.74 | -42.32 | 121.78 | 0.7552 | 191.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -13.16 | 94.98 | -41.08 | 116.45 | 0.7170 | -739.0 | -623.7 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -12.87 | 94.96 | -41.10 | 116.07 | 0.7158 | -796.0 | -685.8 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -12.45 | 95.00 | -41.06 | 115.56 | 0.7133 | -718.0 | -650.4 | |
| 1.52 | -57.00 | 1.09 | -57.00 | -14.49 | 94.48 | -41.58 | 117.85 | 0.7290 | 429.4 | 999999 | |
| 0.00 | 3.21 | 0.00 | 2.25 | -11.07 | 94.80 | -41.26 | 113.65 | 0.7088 | -428.0 | -480.9 | |
| 0.45 | 2.68 | 0.34 | 2.05 | -18.29 | 92.93 | -43.13 | 121.56 | 0.7640 | -573.2 | -518.8 | |
| 8.39 | -57.00 | 6.08 | -57.00 | -14.21 | 94.00 | -42.06 | 117.23 | 0.7327 | -913.9 | 999999 | |
| 3.30 | 16.07 | 2.50 | 12.11 | -17.13 | 93.03 | -43.03 | 120.24 | 0.7572 | -824.1 | -626.9 | |
| 0.00 | 1.61 | 0.00 | 1.13 | -10.89 | 94.38 | -41.68 | 113.19 | 0.7127 | -262.0 | -362.4 | |
| 15.62 | -57.00 | 11.51 | -57.00 | -15.06 | 93.46 | -42.60 | 117.99 | 0.7426 | 420.9 | 999999 | |
| 3.66 | 11.07 | 2.81 | 8.48 | -17.83 | 92.51 | -43.55 | 120.78 | 0.7658 | -649.6 | -589.1 | |
| 0.00 | 1.25 | 0.00 | 0.95 | -17.34 | 92.48 | -43.58 | 120.19 | 0.7635 | -660.0 | -589.6 | |
| 1.52 | 64.27 | 1.09 | 46.36 | -12.22 | 93.59 | -42.47 | 114.51 | 0.7276 | -1111.4 | -503.7 | |
| 0.00 | 1.07 | 0.00 | 0.76 | -10.84 | 93.77 | -42.29 | 112.83 | 0.7194 | -479.0 | -465.2 | |
| 0.89 | -80.00 | 0.64 | -80.00 | -12.24 | 93.37 | -42.69 | 114.43 | 0.7300 | -872.9 | 999999 | |
| 75.08 | -57.00 | 55.54 | -57.00 | -14.21 | 92.85 | -43.21 | 116.62 | 0.7447 | -965.3 | 999999 | |
| 7.41 | -80.00 | 5.37 | -80.00 | -12.17 | 93.14 | -42.92 | 114.21 | 0.7322 | -686.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -12.82 | 92.96 | -43.10 | 114.94 | 0.7371 | -560.0 | -513.5 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -12.63 | 93.00 | -43.06 | 114.72 | 0.7358 | -581.0 | -538.7 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -12.99 | 92.83 | -43.23 | 115.09 | 0.7392 | -591.0 | -524.5 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -15.88 | 91.94 | -44.12 | 118.16 | 0.7618 | 395.0 | 302.2 | |
| 0.00 | 1.07 | 0.00 | 0.83 | -16.89 | 91.60 | -44.46 | 119.19 | 0.7699 | -467.0 | -398.6 | |
| 0.00 | 1.16 | 0.00 | 0.89 | -16.12 | 91.78 | -44.28 | 118.37 | 0.7645 | 449.0 | 353.4 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -12.77 | 92.15 | -43.91 | 114.47 | 0.7454 | -642.0 | -469.1 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -15.82 | 91.16 | -44.90 | 117.69 | 0.7692 | -101.0 | -35.5 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -12.96 | 91.81 | -44.25 | 114.53 | 0.7498 | -620.0 | -543.9 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -12.81 | 91.67 | -44.39 | 114.28 | 0.7507 | -535.0 | -428.4 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -10.90 | 92.02 | -44.04 | 112.06 | 0.7388 | -383.0 | -385.2 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -15.29 | 90.95 | -45.11 | 116.95 | 0.7689 | -514.0 | -407.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -11.47 | 91.74 | -44.32 | 112.64 | 0.7442 | -631.0 | -510.3 | |
| 3.48 | 12.59 | 2.68 | 9.70 | -14.65 | 90.91 | -45.15 | 116.15 | 0.7665 | -685.8 | -432.4 | |
| 0.00 | 2.59 | 0.00 | 1.95 | -12.80 | 91.10 | -44.96 | 114.00 | 0.7565 | -389.0 | -345.0 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -11.34 | 91.37 | -44.69 | 112.31 | 0.7476 | -391.0 | -319.9 | |
| 0.00 | 1.79 | 0.00 | 1.39 | -14.62 | 90.15 | -45.91 | 115.75 | 0.7739 | -423.0 | -336.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
