SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.78 | 36.51 | 12.45 | 39.66 | -20.64 | 78.65 | -57.41 | 117.70 | 0.8912 | -0.2 | -53.1 | |
|
previous
or next observation for the same group /

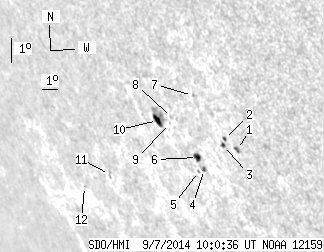

back to the solar disc SDO HMI 2014-09-07 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 2.77 | 0.96 | 2.70 | -20.55 | 82.52 | -53.54 | 119.05 | 0.8635 | 577.4 | 472.1 | |
| 0.54 | 1.61 | 0.53 | 1.58 | -20.24 | 81.97 | -54.09 | 118.49 | 0.8667 | 439.5 | 433.4 | |
| 0.98 | 2.23 | 0.98 | 2.22 | -20.49 | 81.78 | -54.28 | 118.69 | 0.8689 | 371.3 | 327.4 | |
| 0.80 | 1.96 | 0.84 | 2.07 | -21.48 | 80.15 | -55.91 | 119.10 | 0.8839 | 563.8 | 461.2 | |
| 0.00 | 0.89 | 0.00 | 0.95 | -21.59 | 79.73 | -56.33 | 119.06 | 0.8872 | 172.0 | 124.4 | |
| 3.30 | 5.18 | 3.47 | 5.45 | -21.09 | 79.97 | -56.09 | 118.62 | 0.8841 | 369.4 | 155.0 | |
| 0.00 | 0.80 | 0.00 | 0.81 | -18.93 | 80.85 | -55.21 | 116.65 | 0.8711 | 459.0 | 396.6 | |
| 0.00 | 1.16 | 0.00 | 1.23 | -19.84 | 79.15 | -56.91 | 117.00 | 0.8863 | -504.0 | -453.2 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -20.07 | 78.90 | -57.16 | 117.15 | 0.8887 | -499.0 | -451.7 | |
| 5.18 | 16.25 | 5.67 | 17.70 | -20.05 | 78.19 | -57.87 | 116.87 | 0.8937 | -433.5 | -325.1 | |
| 0.00 | 2.41 | 0.00 | 3.20 | -22.41 | 73.40 | -62.66 | 117.73 | 0.9294 | 251.0 | 201.9 | |
| 0.00 | 0.98 | 0.00 | 1.46 | -23.11 | 70.91 | -65.15 | 117.70 | 0.9441 | -332.0 | -332.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
