SDO HMI 2014-09-07 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.25 | 73.81 | 19.02 | 137.88 | -16.54 | 64.08 | -71.43 | 109.48 | 0.9642 | 234.0 | -26.5 | |
|
previous
or next observation for the same group /

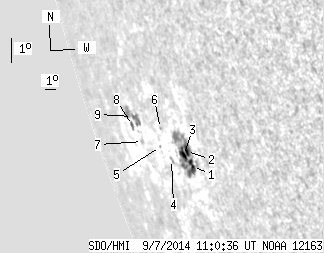

back to the solar disc SDO HMI 2014-09-07 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.82 | 51.86 | 8.09 | 88.30 | -16.95 | 66.02 | -69.49 | 110.30 | 0.9566 | 387.6 | 69.9 | |
| 2.95 | -1.00 | 4.94 | -1.00 | -16.49 | 65.85 | -69.66 | 109.79 | 0.9568 | 564.4 | 999999 | |
| 3.48 | -1.00 | 5.99 | -1.00 | -16.67 | 65.43 | -70.09 | 109.88 | 0.9590 | 102.2 | 999999 | |
| 0.00 | 2.14 | 0.00 | 4.01 | -16.97 | 63.99 | -71.52 | 109.87 | 0.9657 | 26.0 | -40.3 | |
| 0.00 | 0.80 | 0.00 | 1.58 | -16.66 | 63.15 | -72.36 | 109.37 | 0.9689 | -11.0 | -3.8 | |
| 0.00 | 0.71 | 0.00 | 1.34 | -16.00 | 63.75 | -71.76 | 108.83 | 0.9658 | 106.0 | 36.9 | |
| 0.00 | 1.34 | 0.00 | 3.06 | -16.76 | 61.02 | -74.49 | 109.04 | 0.9770 | -319.0 | -307.1 | |
| 0.00 | 2.86 | 0.00 | 6.86 | -16.34 | 60.26 | -75.25 | 108.47 | 0.9793 | -147.0 | -3.9 | |
| 0.00 | 14.10 | 0.00 | 32.73 | -16.00 | 60.63 | -74.88 | 108.20 | 0.9778 | -336.0 | -211.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
