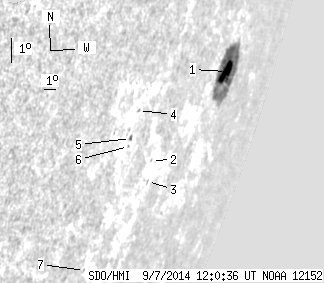

SDO HMI 2014-09-07 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.39 | 90.76 | 29.53 | 200.26 | -14.41 | 209.38 | 74.42 | 253.30 | 0.9747 | 241.6 | 47.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.03 | 85.67 | 29.02 | 192.90 | -14.34 | 209.68 | 74.72 | 253.44 | 0.9760 | 331.5 | 57.5 | |
| 0.00 | 0.27 | 0.00 | 0.43 | -16.47 | 203.83 | 68.87 | 250.05 | 0.9530 | -144.0 | -170.0 | |
| 0.00 | 0.27 | 0.00 | 0.44 | -17.17 | 204.04 | 69.08 | 249.38 | 0.9548 | -188.0 | -168.0 | |
| 0.00 | 1.34 | 0.00 | 1.89 | -14.57 | 201.45 | 66.49 | 251.42 | 0.9378 | -178.0 | -103.3 | |
| 0.36 | 1.87 | 0.51 | 2.66 | -15.46 | 201.37 | 66.41 | 250.48 | 0.9386 | -287.5 | -136.5 | |
| 0.00 | 0.27 | 0.00 | 0.38 | -15.72 | 201.38 | 66.42 | 250.22 | 0.9390 | -205.0 | -198.7 | |
| 0.00 | 1.07 | 0.00 | 1.56 | -19.69 | 200.78 | 65.81 | 245.98 | 0.9418 | -416.0 | -384.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
