SDO HMI 2014-09-07 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.01 | 258.34 | 39.14 | 163.13 | -19.72 | 107.22 | -27.74 | 135.11 | 0.6231 | 636.6 | 400.3 | |
|
previous
or next observation for the same group /

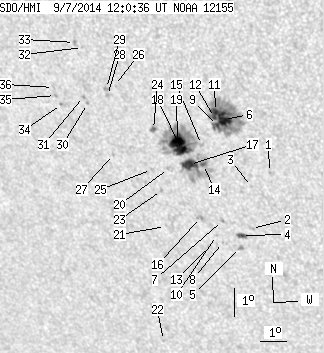

back to the solar disc SDO HMI 2014-09-07 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.55 | -20.57 | 109.84 | -25.13 | 138.88 | 0.6067 | 691.0 | 498.2 | |
| 0.00 | 2.14 | 0.00 | 1.37 | -22.56 | 108.80 | -26.16 | 139.99 | 0.6355 | 650.0 | 435.1 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -21.09 | 109.09 | -25.87 | 138.67 | 0.6186 | 577.0 | 464.9 | |
| 2.59 | 4.91 | 1.67 | 3.16 | -22.82 | 108.38 | -26.58 | 139.84 | 0.6417 | 725.8 | 547.4 | |
| 0.00 | 2.23 | 0.00 | 1.45 | -23.25 | 108.25 | -26.71 | 140.16 | 0.6469 | 632.0 | 528.2 | |
| 12.94 | 88.98 | 8.01 | 55.04 | -18.86 | 108.49 | -26.47 | 135.38 | 0.6027 | 1065.4 | 511.5 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -22.34 | 107.79 | -27.17 | 138.69 | 0.6422 | 556.0 | 458.8 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -23.11 | 107.62 | -27.34 | 139.37 | 0.6510 | 646.0 | 511.2 | |
| 1.78 | -6.00 | 1.11 | -6.00 | -19.08 | 108.24 | -26.72 | 135.38 | 0.6072 | 641.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -22.88 | 107.45 | -27.51 | 138.95 | 0.6503 | 648.0 | 513.6 | |
| 4.46 | -6.00 | 2.77 | -6.00 | -18.61 | 108.25 | -26.71 | 134.81 | 0.6027 | 914.8 | 999999 | |
| 1.87 | -6.00 | 1.16 | -6.00 | -18.81 | 108.18 | -26.78 | 134.99 | 0.6053 | 833.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -23.29 | 107.06 | -27.90 | 139.00 | 0.6575 | 453.0 | 353.9 | |
| 1.16 | 49.35 | 0.74 | 31.44 | -20.44 | 107.48 | -27.48 | 136.22 | 0.6271 | 822.5 | 308.0 | |
| 0.00 | 1.96 | 0.00 | 1.24 | -19.76 | 107.54 | -27.42 | 135.47 | 0.6203 | 284.0 | 267.7 | |
| 0.00 | 2.41 | 0.00 | 1.57 | -22.29 | 106.99 | -27.97 | 137.83 | 0.6488 | 703.0 | 517.0 | |
| 10.80 | -14.00 | 6.89 | -14.00 | -20.47 | 106.97 | -28.00 | 135.73 | 0.6323 | 803.2 | 999999 | |
| 7.67 | 78.80 | 4.88 | 50.04 | -20.01 | 106.80 | -28.16 | 135.02 | 0.6296 | 832.0 | 459.6 | |
| 17.40 | -18.00 | 11.06 | -18.00 | -19.71 | 106.68 | -28.28 | 134.54 | 0.6281 | 999.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -20.66 | 106.16 | -28.81 | 135.15 | 0.6416 | 412.0 | 324.5 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -22.69 | 105.59 | -29.37 | 136.92 | 0.6648 | 601.0 | 528.2 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -26.80 | 104.41 | -30.56 | 140.18 | 0.7108 | -506.0 | -476.1 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -21.44 | 105.73 | -29.23 | 135.64 | 0.6525 | 697.0 | 527.2 | |
| 1.34 | 2.86 | 0.85 | 1.82 | -19.36 | 105.87 | -29.09 | 133.32 | 0.6329 | 710.4 | 570.8 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -20.73 | 105.51 | -29.45 | 134.62 | 0.6483 | 233.0 | 198.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -17.96 | 104.71 | -30.25 | 130.50 | 0.6326 | 506.0 | 523.3 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -20.31 | 104.18 | -30.78 | 132.89 | 0.6574 | 666.0 | 546.8 | |
| 0.00 | 1.87 | 0.00 | 1.20 | -18.32 | 104.38 | -30.58 | 130.65 | 0.6389 | 717.0 | 572.1 | |
| 0.00 | 2.14 | 0.00 | 1.37 | -18.08 | 104.39 | -30.57 | 130.37 | 0.6369 | 722.0 | 648.8 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -18.64 | 103.57 | -31.39 | 130.32 | 0.6497 | -427.0 | -335.6 | |
| 0.00 | 1.43 | 0.00 | 0.93 | -18.41 | 103.47 | -31.50 | 129.95 | 0.6489 | -692.0 | -504.4 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -16.77 | 103.75 | -31.21 | 128.12 | 0.6329 | -547.0 | -457.3 | |
| 0.00 | 2.14 | 0.00 | 1.37 | -16.62 | 103.48 | -31.48 | 127.70 | 0.6347 | -705.0 | -593.3 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -18.74 | 102.57 | -32.39 | 129.58 | 0.6606 | -600.0 | -555.5 | |
| 0.00 | 1.25 | 0.00 | 0.82 | -18.45 | 102.40 | -32.56 | 129.09 | 0.6600 | -630.0 | -532.0 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -18.19 | 102.39 | -32.58 | 128.75 | 0.6582 | -641.0 | -552.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
