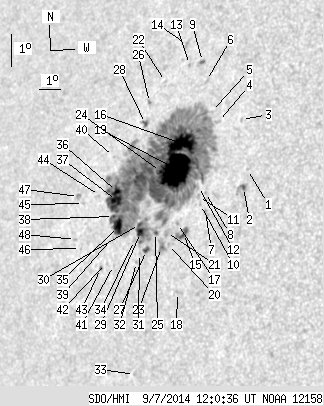

SDO HMI 2014-09-07 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.35 | 845.56 | 96.58 | 623.93 | 15.19 | 86.99 | -47.98 | 75.99 | 0.7412 | 239.7 | -92.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.80 | 15.76 | 90.60 | -44.36 | 74.80 | 0.6996 | 430.0 | 305.9 | |
| 0.98 | 6.78 | 0.68 | 4.69 | 15.21 | 90.57 | -44.39 | 75.60 | 0.6992 | -767.2 | -548.7 | |
| 0.00 | 1.34 | 0.00 | 0.94 | 17.25 | 89.90 | -45.07 | 72.80 | 0.7100 | -456.0 | -366.2 | |
| 0.00 | 2.41 | 0.00 | 1.72 | 17.10 | 88.90 | -46.06 | 73.17 | 0.7214 | 254.0 | 258.4 | |
| 0.00 | 0.80 | 0.00 | 0.58 | 17.38 | 88.49 | -46.47 | 72.85 | 0.7265 | 367.0 | 346.8 | |
| 0.00 | 1.52 | 0.00 | 1.10 | 18.29 | 87.94 | -47.02 | 71.69 | 0.7340 | 68.0 | 101.6 | |
| 0.00 | 1.16 | 0.00 | 0.82 | 14.34 | 89.11 | -45.85 | 76.98 | 0.7158 | 608.0 | 479.8 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 14.91 | 88.96 | -46.00 | 76.20 | 0.7181 | 510.0 | 441.6 | |
| 0.71 | 2.41 | 0.52 | 1.77 | 18.85 | 87.55 | -47.41 | 71.00 | 0.7392 | 620.8 | 526.3 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 14.53 | 88.84 | -46.13 | 76.74 | 0.7192 | 410.0 | 369.0 | |
| 0.00 | 1.43 | 0.00 | 1.02 | 14.76 | 88.68 | -46.28 | 76.43 | 0.7212 | 597.0 | 473.6 | |
| 0.00 | 1.43 | 0.00 | 1.02 | 15.07 | 88.60 | -46.36 | 76.03 | 0.7225 | 146.0 | 186.4 | |
| 0.00 | 1.07 | 0.00 | 0.79 | 18.71 | 86.99 | -47.98 | 71.29 | 0.7452 | 608.0 | 518.8 | |
| 0.00 | 2.95 | 0.00 | 2.20 | 19.30 | 86.61 | -48.35 | 70.56 | 0.7501 | 570.0 | 441.3 | |
| 3.57 | 9.01 | 2.56 | 6.46 | 13.59 | 88.31 | -46.65 | 78.09 | 0.7247 | 578.2 | 171.2 | |
| 27.93 | 764.90 | 20.39 | 564.89 | 16.29 | 87.45 | -47.52 | 74.48 | 0.7370 | 853.4 | -87.7 | |
| 0.00 | 1.25 | 0.00 | 0.90 | 13.87 | 87.97 | -47.00 | 77.73 | 0.7289 | 196.0 | 22.2 | |
| 0.00 | 2.59 | 0.00 | 1.85 | 11.80 | 88.47 | -46.50 | 80.57 | 0.7220 | -687.0 | -514.2 | |
| 63.01 | -16.00 | 45.95 | -16.00 | 15.49 | 87.46 | -47.50 | 75.56 | 0.7360 | 746.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.71 | 13.20 | 87.73 | -47.24 | 78.66 | 0.7313 | -570.0 | -452.7 | |
| 0.00 | 4.02 | 0.00 | 2.92 | 13.56 | 87.54 | -47.42 | 78.19 | 0.7336 | -272.0 | -208.5 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 18.09 | 86.06 | -48.90 | 72.24 | 0.7544 | 374.0 | 314.2 | |
| 0.71 | 9.10 | 0.52 | 6.62 | 13.09 | 87.43 | -47.53 | 78.84 | 0.7346 | -711.0 | -508.1 | |
| 0.98 | -16.00 | 0.72 | -16.00 | 15.36 | 86.75 | -48.21 | 75.80 | 0.7439 | 146.6 | 999999 | |
| 1.07 | -16.00 | 0.78 | -16.00 | 13.51 | 87.04 | -47.92 | 78.28 | 0.7393 | -744.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 17.39 | 85.54 | -49.42 | 73.24 | 0.7592 | 578.0 | 478.7 | |
| 2.23 | 3.93 | 1.64 | 2.89 | 12.93 | 86.78 | -48.19 | 79.08 | 0.7421 | -827.6 | -709.8 | |
| 1.34 | 4.28 | 1.01 | 3.24 | 16.74 | 85.58 | -49.38 | 74.09 | 0.7582 | 475.0 | 267.5 | |
| 5.53 | -16.00 | 4.11 | -16.00 | 13.45 | 86.36 | -48.60 | 78.41 | 0.7471 | -851.7 | 999999 | |
| 1.87 | -16.00 | 1.39 | -16.00 | 13.68 | 86.25 | -48.72 | 78.10 | 0.7485 | -562.4 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.99 | 12.81 | 86.48 | -48.48 | 79.25 | 0.7455 | -578.0 | -481.1 | |
| 0.00 | 0.98 | 0.00 | 0.73 | 12.53 | 86.41 | -48.55 | 79.63 | 0.7462 | -485.0 | -451.8 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 9.17 | 87.03 | -47.93 | 84.18 | 0.7389 | -358.0 | -324.4 | |
| 0.00 | 1.96 | 0.00 | 1.46 | 13.18 | 86.15 | -48.82 | 78.77 | 0.7494 | -615.0 | -576.1 | |
| 10.08 | -16.00 | 7.65 | -16.00 | 13.53 | 85.28 | -49.68 | 78.35 | 0.7591 | -794.1 | 999999 | |
| 2.95 | -16.00 | 2.25 | -16.00 | 14.57 | 84.88 | -50.08 | 77.00 | 0.7641 | -836.6 | 999999 | |
| 6.69 | -16.00 | 5.11 | -16.00 | 14.30 | 84.96 | -50.00 | 77.35 | 0.7630 | -951.9 | 999999 | |
| 1.16 | -16.00 | 0.89 | -16.00 | 13.81 | 84.96 | -50.00 | 78.00 | 0.7628 | -737.2 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.49 | 13.21 | 85.13 | -49.83 | 78.78 | 0.7607 | -128.0 | -200.5 | |
| 0.00 | 0.80 | 0.00 | 0.62 | 15.61 | 84.40 | -50.57 | 75.68 | 0.7700 | -613.0 | -608.2 | |
| 0.00 | 0.62 | 0.00 | 0.47 | 12.34 | 85.37 | -49.60 | 79.92 | 0.7579 | -539.0 | -380.6 | |
| 0.00 | 0.45 | 0.00 | 0.34 | 12.37 | 84.97 | -49.99 | 79.89 | 0.7622 | -444.0 | -477.2 | |
| 0.54 | 1.61 | 0.41 | 1.23 | 12.20 | 84.78 | -50.19 | 80.12 | 0.7644 | -353.2 | -308.8 | |
| 0.00 | 1.16 | 0.00 | 0.90 | 14.38 | 84.10 | -50.86 | 77.30 | 0.7724 | -203.0 | -176.6 | |
| 0.00 | 1.07 | 0.00 | 0.84 | 14.06 | 83.40 | -51.56 | 77.74 | 0.7798 | -521.0 | -406.0 | |
| 0.00 | 0.54 | 0.00 | 0.42 | 12.70 | 83.66 | -51.31 | 79.49 | 0.7767 | -559.0 | -487.2 | |
| 0.00 | 3.03 | 0.00 | 2.41 | 14.25 | 83.09 | -51.87 | 77.52 | 0.7831 | -493.0 | -388.9 | |
| 0.00 | 1.07 | 0.00 | 0.84 | 12.95 | 83.34 | -51.63 | 79.18 | 0.7801 | -360.0 | -283.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
