SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 24.09 | 0.26 | 14.37 | -17.37 | 157.63 | 23.22 | 222.65 | 0.5563 | -39.6 | 2.5 | |
|
previous
or next observation for the same group /

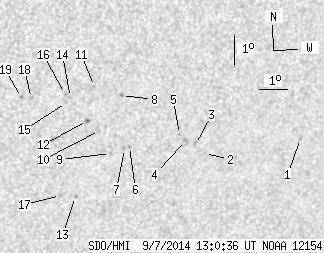

back to the solar disc SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.74 | -17.97 | 164.04 | 29.63 | 228.91 | 0.6263 | 745.0 | 561.2 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -18.25 | 160.63 | 26.22 | 225.11 | 0.5944 | 391.0 | 381.8 | |
| 0.00 | 1.96 | 0.00 | 1.20 | -17.93 | 160.26 | 25.85 | 225.11 | 0.5877 | 705.0 | 542.1 | |
| 0.00 | 2.05 | 0.00 | 1.25 | -17.77 | 159.88 | 25.47 | 224.90 | 0.5825 | 879.0 | 744.0 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -17.56 | 159.64 | 25.23 | 224.89 | 0.5780 | 762.0 | 600.2 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -17.86 | 157.94 | 23.53 | 222.54 | 0.5642 | -705.0 | -586.5 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -17.92 | 157.78 | 23.37 | 222.26 | 0.5632 | -702.0 | -498.3 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -16.15 | 157.44 | 23.03 | 224.14 | 0.5417 | 828.0 | 668.7 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -18.06 | 157.31 | 22.90 | 221.52 | 0.5602 | -500.0 | -385.3 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -17.27 | 156.83 | 22.42 | 221.91 | 0.5473 | -383.0 | -268.5 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -15.80 | 156.48 | 22.07 | 223.39 | 0.5284 | 787.0 | 590.3 | |
| 0.45 | 1.70 | 0.26 | 1.00 | -16.91 | 156.38 | 21.96 | 221.79 | 0.5391 | 818.0 | 710.2 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -19.45 | 156.30 | 21.89 | 218.59 | 0.5657 | -646.0 | -557.9 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -16.12 | 155.71 | 21.29 | 221.94 | 0.5240 | -611.0 | -488.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.28 | 155.59 | 21.18 | 221.58 | 0.5246 | -502.0 | -457.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.02 | 155.52 | 21.11 | 221.84 | 0.5211 | -669.0 | -399.3 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -19.39 | 155.77 | 21.36 | 217.99 | 0.5604 | -707.0 | -568.2 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -16.09 | 154.39 | 19.98 | 220.18 | 0.5108 | -594.0 | -485.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -16.04 | 154.05 | 19.64 | 219.76 | 0.5070 | -871.0 | -710.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
