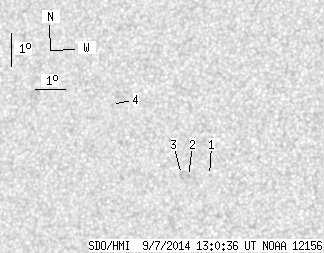

SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.53 | 0.00 | 2.95 | 15.27 | 113.22 | -21.19 | 67.02 | 0.3804 | -413.5 | -422.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.47 | 15.09 | 114.22 | -20.19 | 66.61 | 0.3647 | -760.0 | -641.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.03 | 113.52 | -20.89 | 67.36 | 0.3747 | -926.0 | -741.6 | |
| 0.00 | 3.03 | 0.00 | 1.62 | 15.08 | 113.28 | -21.13 | 67.43 | 0.3786 | -659.0 | -440.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 17.11 | 110.66 | -23.75 | 64.74 | 0.4275 | 691.0 | 656.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
