SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 227.25 | 949.16 | 156.87 | 657.88 | -13.79 | 95.15 | -39.26 | 118.39 | 0.6994 | -71.5 | -183.8 | |
|
previous
or next observation for the same group /

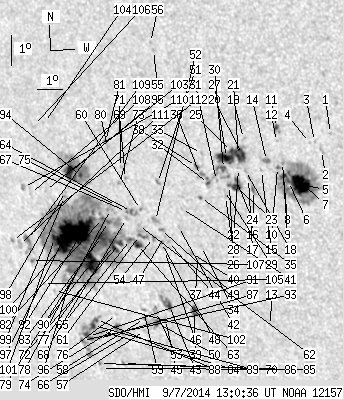

back to the solar disc SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.70 | -10.16 | 103.44 | -30.97 | 119.04 | 0.5815 | 681.0 | 509.9 | |
| 0.00 | 2.94 | 0.00 | 1.80 | -10.72 | 103.06 | -31.35 | 119.58 | 0.5901 | 658.0 | 493.3 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -10.45 | 102.84 | -31.58 | 119.00 | 0.5910 | 608.0 | 394.9 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -10.49 | 102.65 | -31.76 | 118.92 | 0.5935 | 461.0 | 357.7 | |
| 26.59 | 121.80 | 16.57 | 75.90 | -11.86 | 102.15 | -32.26 | 120.54 | 0.6087 | 1010.0 | 330.1 | |
| 0.27 | -5.00 | 0.17 | -5.00 | -11.80 | 101.72 | -32.69 | 120.11 | 0.6134 | 699.7 | 999999 | |
| 0.27 | -5.00 | 0.17 | -5.00 | -11.51 | 101.76 | -32.65 | 119.72 | 0.6110 | 793.3 | 999999 | |
| 2.14 | -5.00 | 1.34 | -5.00 | -11.65 | 101.56 | -32.86 | 119.77 | 0.6144 | 675.8 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.17 | -11.20 | 101.58 | -32.83 | 119.14 | 0.6112 | 602.0 | 475.0 | |
| 0.36 | 2.41 | 0.22 | 1.51 | -11.37 | 101.37 | -33.04 | 119.24 | 0.6148 | 675.5 | 567.3 | |
| 1.34 | 4.46 | 0.83 | 2.77 | -10.10 | 101.49 | -32.92 | 117.46 | 0.6052 | -703.3 | -617.3 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -10.55 | 101.44 | -32.97 | 118.08 | 0.6086 | -554.0 | -471.3 | |
| 0.00 | 1.34 | 0.00 | 0.88 | -16.56 | 100.24 | -34.17 | 125.40 | 0.6628 | -558.0 | -388.7 | |
| 0.00 | 3.75 | 0.00 | 2.36 | -11.18 | 100.99 | -33.42 | 118.67 | 0.6181 | 840.0 | 678.5 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -11.51 | 100.76 | -33.65 | 118.98 | 0.6230 | 454.0 | 390.3 | |
| 0.00 | 3.75 | 0.00 | 2.39 | -12.18 | 100.37 | -34.04 | 119.63 | 0.6318 | 738.0 | 579.7 | |
| 0.00 | 1.52 | 0.00 | 0.97 | -11.81 | 100.24 | -34.18 | 119.01 | 0.6310 | 737.0 | 613.6 | |
| 0.00 | 1.96 | 0.00 | 1.25 | -11.56 | 100.16 | -34.25 | 118.61 | 0.6304 | 703.0 | 635.4 | |
| 0.00 | 1.43 | 0.00 | 0.90 | -10.54 | 100.22 | -34.19 | 117.19 | 0.6234 | 656.0 | 574.9 | |
| 4.19 | 34.53 | 2.66 | 22.05 | -11.05 | 100.12 | -34.30 | 117.86 | 0.6278 | 929.5 | 550.8 | |
| 6.42 | -20.00 | 4.09 | -20.00 | -11.09 | 99.96 | -34.45 | 117.81 | 0.6299 | 869.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -11.51 | 99.90 | -34.51 | 118.36 | 0.6331 | 576.0 | 491.6 | |
| 4.73 | 10.89 | 3.04 | 6.99 | -12.13 | 99.74 | -34.67 | 119.11 | 0.6389 | 758.8 | 664.8 | |
| 1.34 | -23.00 | 0.86 | -23.00 | -11.90 | 99.77 | -34.64 | 118.82 | 0.6371 | 876.7 | 999999 | |
| 2.05 | -20.00 | 1.31 | -20.00 | -10.99 | 99.71 | -34.70 | 117.49 | 0.6322 | 659.7 | 999999 | |
| 0.80 | -23.00 | 0.52 | -23.00 | -12.08 | 99.48 | -34.93 | 118.87 | 0.6416 | 559.4 | 999999 | |
| 12.49 | -20.00 | 8.00 | -20.00 | -11.19 | 99.50 | -34.91 | 117.63 | 0.6360 | 722.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -12.45 | 99.27 | -35.14 | 119.23 | 0.6463 | 465.0 | 351.1 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -12.26 | 99.26 | -35.15 | 118.96 | 0.6452 | 488.0 | 373.3 | |
| 2.32 | 19.45 | 1.49 | 12.57 | -11.55 | 99.33 | -35.08 | 118.02 | 0.6401 | 478.9 | 236.4 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -11.96 | 99.01 | -35.41 | 118.37 | 0.6464 | 447.0 | 313.3 | |
| 1.07 | -30.00 | 0.70 | -30.00 | -12.08 | 98.68 | -35.73 | 118.31 | 0.6509 | 517.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.92 | -11.14 | 98.56 | -35.85 | 116.92 | 0.6468 | 511.0 | 393.6 | |
| 0.00 | 1.70 | 0.00 | 1.13 | -14.15 | 98.06 | -36.35 | 120.67 | 0.6706 | 586.0 | 350.4 | |
| 0.54 | 1.78 | 0.35 | 1.17 | -12.56 | 98.30 | -36.11 | 118.70 | 0.6581 | 345.2 | 137.1 | |
| 0.00 | 3.03 | 0.00 | 1.98 | -11.85 | 98.41 | -36.00 | 117.81 | 0.6526 | 272.0 | 171.3 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -14.56 | 97.82 | -36.59 | 121.04 | 0.6756 | 612.0 | 522.4 | |
| 1.07 | 2.59 | 0.70 | 1.69 | -11.57 | 98.30 | -36.11 | 117.35 | 0.6523 | 465.5 | 286.6 | |
| 4.28 | 6.96 | 2.93 | 4.76 | -16.32 | 97.34 | -37.08 | 122.96 | 0.6919 | 717.1 | 569.9 | |
| 0.00 | 1.43 | 0.00 | 0.96 | -14.41 | 97.62 | -36.79 | 120.71 | 0.6770 | 638.0 | 534.6 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -12.97 | 97.50 | -36.92 | 118.73 | 0.6698 | 430.0 | 360.2 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -13.57 | 97.27 | -37.14 | 119.37 | 0.6758 | 703.0 | 508.2 | |
| 2.86 | 9.99 | 1.98 | 6.93 | -16.20 | 96.37 | -38.04 | 122.16 | 0.7013 | 651.2 | 606.5 | |
| 0.00 | 1.70 | 0.00 | 1.15 | -14.09 | 96.78 | -37.63 | 119.73 | 0.6843 | 760.0 | 581.6 | |
| 0.00 | 2.05 | 0.00 | 1.43 | -16.68 | 96.09 | -38.32 | 122.57 | 0.7071 | 573.0 | 511.3 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -14.40 | 96.56 | -37.85 | 119.99 | 0.6885 | 440.0 | 436.1 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -13.94 | 96.65 | -37.76 | 119.45 | 0.6849 | 618.0 | 578.5 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -14.14 | 96.49 | -37.92 | 119.62 | 0.6878 | 596.0 | 556.9 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -13.72 | 96.53 | -37.88 | 119.09 | 0.6849 | 435.0 | 379.0 | |
| 1.96 | 8.83 | 1.38 | 6.22 | -16.84 | 95.73 | -38.68 | 122.53 | 0.7118 | 525.7 | -28.5 | |
| 0.00 | 2.50 | 0.00 | 1.67 | -12.20 | 96.69 | -37.72 | 117.18 | 0.6745 | -692.0 | -507.2 | |
| 0.00 | 4.10 | 0.00 | 2.78 | -13.44 | 96.39 | -38.02 | 118.64 | 0.6849 | 208.0 | 138.8 | |
| 0.00 | 4.28 | 0.00 | 3.00 | -16.45 | 95.75 | -38.67 | 122.05 | 0.7093 | 240.0 | 247.4 | |
| 0.45 | 2.23 | 0.30 | 1.52 | -14.01 | 96.20 | -38.21 | 119.25 | 0.6902 | 613.0 | 523.8 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -8.01 | 97.12 | -37.29 | 111.59 | 0.6475 | -556.0 | -509.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -7.76 | 97.03 | -37.38 | 111.19 | 0.6474 | -545.0 | -449.0 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -17.12 | 95.13 | -39.28 | 122.49 | 0.7196 | -289.0 | -264.4 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -16.72 | 95.23 | -39.18 | 122.06 | 0.7162 | 286.0 | 154.6 | |
| 0.00 | 1.87 | 0.00 | 1.32 | -16.42 | 95.27 | -39.15 | 121.71 | 0.7141 | 486.0 | 338.2 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -13.13 | 95.85 | -38.56 | 117.90 | 0.6891 | -781.0 | -709.1 | |
| 0.27 | 7.58 | 0.18 | 5.21 | -13.99 | 95.65 | -38.76 | 118.88 | 0.6961 | 474.0 | 213.4 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -13.66 | 95.67 | -38.74 | 118.47 | 0.6941 | -387.0 | -351.0 | |
| 4.28 | 481.30 | 2.96 | 344.17 | -14.29 | 95.50 | -38.91 | 119.18 | 0.6994 | 658.5 | -349.1 | |
| 0.89 | 7.32 | 0.61 | 5.02 | -13.23 | 95.48 | -38.94 | 117.79 | 0.6938 | -869.8 | -718.1 | |
| 0.80 | -63.00 | 0.56 | -63.00 | -14.15 | 95.25 | -39.16 | 118.84 | 0.7013 | 482.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -17.31 | 94.42 | -39.99 | 122.27 | 0.7279 | -211.0 | -171.5 | |
| 0.36 | -64.00 | 0.25 | -64.00 | -13.24 | 95.27 | -39.14 | 117.69 | 0.6962 | -789.5 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.60 | -13.47 | 95.23 | -39.18 | 117.96 | 0.6979 | -750.0 | -614.4 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -12.18 | 95.43 | -38.98 | 116.38 | 0.6887 | 242.0 | 188.0 | |
| 0.00 | 1.61 | 0.00 | 1.18 | -18.31 | 93.94 | -40.47 | 123.16 | 0.7384 | -506.0 | -459.0 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -11.84 | 95.29 | -39.12 | 115.85 | 0.6885 | 572.0 | 492.1 | |
| 1.96 | -63.00 | 1.37 | -63.00 | -14.32 | 94.77 | -39.64 | 118.76 | 0.7075 | 379.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -12.36 | 95.16 | -39.25 | 116.46 | 0.6927 | -815.0 | -721.8 | |
| 1.87 | 7.05 | 1.36 | 5.10 | -17.12 | 93.98 | -40.44 | 121.76 | 0.7313 | -762.4 | -537.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -13.08 | 94.90 | -39.51 | 117.25 | 0.6994 | -627.0 | -638.8 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -16.68 | 94.09 | -40.32 | 121.29 | 0.7277 | 360.0 | 221.3 | |
| 7.50 | -63.00 | 5.26 | -63.00 | -14.40 | 94.51 | -39.90 | 118.71 | 0.7108 | 31.0 | 999999 | |
| 0.00 | 7.32 | 0.00 | 5.08 | -13.23 | 94.63 | -39.78 | 117.29 | 0.7032 | -694.0 | -568.7 | |
| 1.78 | -63.00 | 1.25 | -63.00 | -13.63 | 94.47 | -39.94 | 117.71 | 0.7071 | -861.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -11.24 | 94.87 | -39.54 | 114.81 | 0.6902 | -648.0 | -568.4 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -11.05 | 94.83 | -39.59 | 114.53 | 0.6898 | -545.0 | -478.6 | |
| 1.34 | -63.00 | 0.94 | -63.00 | -13.56 | 94.24 | -40.17 | 117.47 | 0.7091 | -831.0 | 999999 | |
| 6.69 | -63.00 | 4.72 | -63.00 | -14.15 | 94.07 | -40.34 | 118.13 | 0.7141 | -882.4 | 999999 | |
| 0.00 | 2.86 | 0.00 | 2.09 | -17.31 | 93.30 | -41.12 | 121.57 | 0.7392 | -467.0 | -457.6 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.57 | 92.93 | -41.48 | 122.85 | 0.7496 | -479.0 | -464.7 | |
| 0.00 | 1.34 | 0.00 | 1.00 | -18.40 | 92.90 | -41.51 | 122.63 | 0.7491 | -668.0 | -549.2 | |
| 0.00 | 1.34 | 0.00 | 0.99 | -17.56 | 93.10 | -41.31 | 121.75 | 0.7425 | -631.0 | -504.2 | |
| 1.16 | 18.11 | 0.85 | 13.36 | -16.92 | 93.19 | -41.22 | 121.04 | 0.7381 | -817.2 | -658.4 | |
| 2.59 | -88.00 | 1.90 | -88.00 | -17.14 | 93.01 | -41.41 | 121.19 | 0.7411 | -842.2 | 999999 | |
| 20.97 | -63.00 | 15.05 | -63.00 | -15.08 | 93.41 | -41.00 | 118.91 | 0.7260 | 335.8 | 999999 | |
| 4.02 | -88.00 | 2.98 | -88.00 | -17.53 | 92.68 | -41.73 | 121.47 | 0.7464 | -695.6 | 999999 | |
| 34.62 | -63.00 | 24.70 | -63.00 | -14.05 | 93.31 | -41.10 | 117.57 | 0.7217 | -1058.1 | 999999 | |
| 0.71 | 10.35 | 0.53 | 7.72 | -17.69 | 92.38 | -42.03 | 121.48 | 0.7502 | -458.2 | -499.2 | |
| 1.87 | 60.76 | 1.31 | 42.66 | -12.23 | 93.60 | -40.81 | 115.41 | 0.7094 | -1059.7 | -498.4 | |
| 8.48 | -94.00 | 5.98 | -94.00 | -12.18 | 93.16 | -41.25 | 115.09 | 0.7140 | -721.1 | 999999 | |
| 0.00 | 12.58 | 0.00 | 9.24 | -15.75 | 92.36 | -42.05 | 119.14 | 0.7404 | -128.0 | -128.1 | |
| 27.57 | -63.00 | 19.90 | -63.00 | -14.14 | 92.62 | -41.79 | 117.30 | 0.7295 | -820.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -12.81 | 92.87 | -41.54 | 115.74 | 0.7202 | -434.0 | -420.9 | |
| 0.00 | 1.16 | 0.00 | 0.83 | -12.97 | 92.80 | -41.62 | 115.92 | 0.7219 | -597.0 | -482.3 | |
| 14.54 | -63.00 | 10.59 | -63.00 | -14.59 | 92.35 | -42.06 | 117.70 | 0.7345 | -711.0 | 999999 | |
| 3.21 | -63.00 | 2.34 | -63.00 | -14.39 | 92.06 | -42.35 | 117.29 | 0.7366 | -422.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -16.11 | 91.62 | -42.79 | 119.16 | 0.7496 | 399.0 | 373.5 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -12.85 | 92.03 | -42.39 | 115.34 | 0.7295 | -550.0 | -487.9 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -10.65 | 92.41 | -42.01 | 112.72 | 0.7153 | -342.0 | -346.2 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -15.92 | 91.20 | -43.21 | 118.70 | 0.7529 | 237.0 | 160.6 | |
| 0.00 | 2.94 | 0.00 | 2.10 | -10.79 | 91.92 | -42.49 | 112.66 | 0.7213 | -382.0 | -378.7 | |
| 0.36 | 1.78 | 0.27 | 1.34 | -15.20 | 90.87 | -43.54 | 117.65 | 0.7528 | -497.8 | -470.8 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -13.00 | 91.36 | -43.05 | 115.19 | 0.7374 | -392.0 | -379.1 | |
| 1.87 | 9.46 | 1.40 | 7.06 | -14.52 | 90.87 | -43.54 | 116.82 | 0.7495 | -650.8 | -486.8 | |
| 0.00 | 2.59 | 0.00 | 1.90 | -12.83 | 91.10 | -43.32 | 114.85 | 0.7394 | -493.0 | -401.1 | |
| 0.00 | 4.10 | 0.00 | 3.08 | -14.72 | 90.48 | -43.94 | 116.86 | 0.7545 | -362.0 | -290.2 | |
| 0.00 | 1.70 | 0.00 | 1.28 | -14.62 | 90.20 | -44.22 | 116.59 | 0.7569 | -351.0 | -295.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
