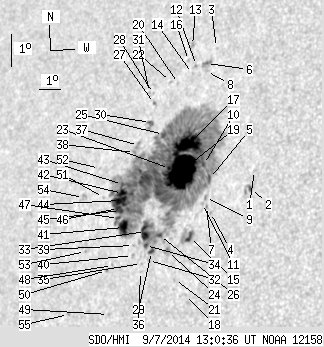

SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.77 | 877.17 | 115.14 | 640.51 | 15.09 | 86.79 | -47.62 | 76.10 | 0.7371 | 167.1 | -68.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.37 | 15.77 | 90.62 | -43.79 | 74.70 | 0.6928 | 522.0 | 371.0 | |
| 1.16 | 5.44 | 0.79 | 3.73 | 15.21 | 90.59 | -43.82 | 75.51 | 0.6924 | -693.4 | -503.1 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 19.35 | 87.76 | -46.65 | 70.19 | 0.7316 | 527.0 | 454.0 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 14.34 | 89.05 | -45.36 | 76.93 | 0.7100 | 568.0 | 502.7 | |
| 2.14 | 801.98 | 1.51 | 585.53 | 15.36 | 88.74 | -45.68 | 75.53 | 0.7147 | 616.9 | -70.3 | |
| 0.00 | 4.55 | 0.00 | 3.31 | 18.82 | 87.48 | -46.93 | 70.95 | 0.7338 | 680.0 | 556.2 | |
| 0.00 | 1.34 | 0.00 | 0.94 | 14.51 | 88.83 | -45.58 | 76.72 | 0.7127 | 545.0 | 439.1 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 18.58 | 87.57 | -46.84 | 71.27 | 0.7324 | 198.0 | 196.0 | |
| 0.00 | 1.43 | 0.00 | 1.01 | 14.78 | 88.72 | -45.70 | 76.36 | 0.7144 | 475.0 | 388.2 | |
| 1.70 | -5.00 | 1.21 | -5.00 | 15.76 | 88.35 | -46.06 | 75.03 | 0.7197 | 796.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.88 | 14.58 | 88.63 | -45.78 | 76.63 | 0.7152 | 351.0 | 285.2 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 18.72 | 87.05 | -47.36 | 71.17 | 0.7384 | 625.0 | 529.6 | |
| 0.00 | 3.12 | 0.00 | 2.31 | 19.31 | 86.64 | -47.77 | 70.45 | 0.7439 | 564.0 | 429.8 | |
| 0.00 | 1.16 | 0.00 | 0.85 | 18.47 | 86.96 | -47.46 | 71.53 | 0.7391 | 582.0 | 461.7 | |
| 3.57 | 13.47 | 2.53 | 9.58 | 13.51 | 88.33 | -46.09 | 78.16 | 0.7180 | 536.2 | 49.0 | |
| 0.00 | 0.98 | 0.00 | 0.72 | 18.84 | 86.63 | -47.79 | 71.08 | 0.7433 | 415.0 | 310.4 | |
| 25.43 | -5.00 | 18.38 | -5.00 | 16.30 | 87.45 | -46.96 | 74.39 | 0.7306 | 860.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 11.79 | 88.55 | -45.87 | 80.56 | 0.7145 | -699.0 | -589.7 | |
| 68.88 | -5.00 | 49.75 | -5.00 | 15.49 | 87.42 | -46.99 | 75.50 | 0.7302 | 725.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.92 | 18.11 | 86.42 | -47.99 | 72.10 | 0.7445 | 381.0 | 383.4 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 12.19 | 87.96 | -46.45 | 80.02 | 0.7216 | -613.0 | -556.4 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 18.13 | 86.03 | -48.38 | 72.12 | 0.7488 | 408.0 | 328.1 | |
| 1.34 | -5.00 | 0.98 | -5.00 | 15.51 | 86.86 | -47.55 | 75.54 | 0.7366 | 164.4 | 999999 | |
| 0.00 | 5.98 | 0.00 | 4.30 | 13.01 | 87.45 | -46.96 | 78.92 | 0.7279 | -641.0 | -542.7 | |
| 2.77 | -5.00 | 2.04 | -5.00 | 16.50 | 86.26 | -48.15 | 74.26 | 0.7443 | 166.7 | 999999 | |
| 1.70 | -5.00 | 1.23 | -5.00 | 13.45 | 86.97 | -47.44 | 78.33 | 0.7338 | -805.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.87 | 17.40 | 85.52 | -48.89 | 73.16 | 0.7535 | 558.0 | 502.9 | |
| 0.00 | 0.89 | 0.00 | 0.67 | 17.70 | 85.37 | -49.05 | 72.79 | 0.7555 | 234.0 | 217.9 | |
| 1.87 | -5.00 | 1.37 | -5.00 | 12.94 | 86.74 | -47.68 | 79.04 | 0.7363 | -831.9 | 999999 | |
| 1.43 | 4.91 | 1.07 | 3.68 | 16.81 | 85.54 | -48.87 | 73.94 | 0.7527 | 494.4 | 299.5 | |
| 0.00 | 0.89 | 0.00 | 0.67 | 17.71 | 85.17 | -49.24 | 72.80 | 0.7577 | 282.0 | 263.4 | |
| 0.00 | 1.87 | 0.00 | 1.37 | 12.66 | 86.67 | -47.74 | 79.43 | 0.7369 | -391.0 | -400.6 | |
| 11.06 | -5.00 | 8.14 | -5.00 | 13.52 | 86.31 | -48.10 | 78.29 | 0.7414 | -800.5 | 999999 | |
| 1.52 | -5.00 | 1.11 | -5.00 | 13.10 | 86.42 | -47.99 | 78.85 | 0.7400 | -809.4 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 12.54 | 86.37 | -48.04 | 79.60 | 0.7403 | -577.0 | -484.3 | |
| 0.00 | 1.07 | 0.00 | 0.79 | 12.30 | 86.38 | -48.03 | 79.93 | 0.7401 | -475.0 | -455.2 | |
| 0.00 | 3.39 | 0.00 | 2.55 | 16.07 | 85.21 | -49.20 | 74.96 | 0.7555 | -290.0 | -305.6 | |
| 0.00 | 1.43 | 0.00 | 1.08 | 15.84 | 85.09 | -49.32 | 75.27 | 0.7566 | -381.0 | -358.2 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 13.05 | 85.87 | -48.54 | 78.94 | 0.7462 | -565.0 | -505.6 | |
| 0.00 | 1.70 | 0.00 | 1.26 | 12.74 | 85.90 | -48.51 | 79.35 | 0.7457 | -494.0 | -423.5 | |
| 11.69 | -5.00 | 8.77 | -5.00 | 13.54 | 85.26 | -49.15 | 78.31 | 0.7533 | -773.2 | 999999 | |
| 3.57 | -5.00 | 2.70 | -5.00 | 14.56 | 84.92 | -49.49 | 76.98 | 0.7576 | -825.5 | 999999 | |
| 2.50 | -5.00 | 1.89 | -5.00 | 14.83 | 84.84 | -49.58 | 76.63 | 0.7587 | -719.3 | 999999 | |
| 8.48 | -5.00 | 6.41 | -5.00 | 14.34 | 84.89 | -49.52 | 77.27 | 0.7578 | -896.6 | 999999 | |
| 2.05 | -5.00 | 1.55 | -5.00 | 14.04 | 84.98 | -49.44 | 77.66 | 0.7567 | -907.7 | 999999 | |
| 3.57 | -5.00 | 2.70 | -5.00 | 14.09 | 84.86 | -49.55 | 77.60 | 0.7580 | -708.6 | 999999 | |
| 1.34 | -5.00 | 1.01 | -5.00 | 13.79 | 84.95 | -49.46 | 77.99 | 0.7568 | -699.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.87 | 12.36 | 85.05 | -49.36 | 79.89 | 0.7552 | -506.0 | -406.5 | |
| 0.00 | 1.25 | 0.00 | 0.94 | 10.87 | 85.21 | -49.20 | 81.86 | 0.7532 | -355.0 | -288.6 | |
| 0.00 | 1.34 | 0.00 | 1.01 | 12.18 | 84.81 | -49.60 | 80.13 | 0.7579 | -465.0 | -366.4 | |
| 0.00 | 0.71 | 0.00 | 0.55 | 14.35 | 84.06 | -50.36 | 77.30 | 0.7670 | -303.0 | -226.2 | |
| 0.00 | 0.89 | 0.00 | 0.69 | 15.20 | 83.58 | -50.83 | 76.23 | 0.7725 | -480.0 | -378.5 | |
| 0.00 | 0.71 | 0.00 | 0.55 | 12.65 | 83.67 | -50.75 | 79.53 | 0.7706 | -558.0 | -491.5 | |
| 0.00 | 3.84 | 0.00 | 3.01 | 14.26 | 83.09 | -51.32 | 77.48 | 0.7773 | -368.0 | -319.4 | |
| 0.00 | 1.25 | 0.00 | 0.97 | 10.69 | 83.33 | -51.09 | 82.08 | 0.7742 | -595.0 | -472.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
