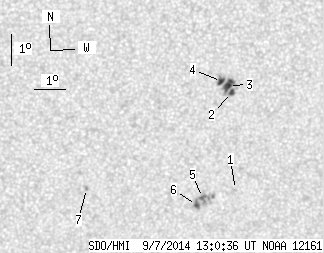

SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.16 | 44.16 | 8.34 | 24.42 | -14.30 | 149.54 | 15.13 | 215.00 | 0.4448 | 315.6 | -158.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.55 | -15.99 | 150.48 | 16.07 | 214.32 | 0.4737 | -543.0 | -508.6 | |
| 2.32 | 24.09 | 1.27 | 13.19 | -12.83 | 150.12 | 15.71 | 217.95 | 0.4310 | 749.8 | 669.4 | |
| 6.60 | -2.00 | 3.61 | -2.00 | -12.60 | 150.01 | 15.60 | 218.09 | 0.4271 | 994.4 | 999999 | |
| 3.12 | -2.00 | 1.71 | -2.00 | -12.46 | 149.77 | 15.36 | 217.87 | 0.4232 | 1054.0 | 999999 | |
| 1.34 | 17.22 | 0.75 | 9.65 | -16.22 | 149.42 | 15.01 | 212.26 | 0.4677 | -1001.7 | -756.7 | |
| 1.78 | -5.00 | 1.00 | -5.00 | -16.47 | 149.24 | 14.83 | 211.66 | 0.4696 | -957.2 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -15.80 | 145.65 | 11.23 | 205.73 | 0.4336 | -830.0 | -687.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
