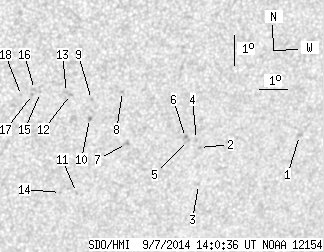

SDO HMI 2014-09-07 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.06 | 0.00 | 15.06 | -17.36 | 158.09 | 24.23 | 223.81 | 0.5660 | 45.6 | 67.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.85 | 0.00 | 1.82 | -17.97 | 164.04 | 30.18 | 229.42 | 0.6319 | 788.0 | 469.0 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -18.13 | 160.45 | 26.59 | 225.65 | 0.5971 | 697.0 | 565.8 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -19.38 | 160.63 | 26.77 | 224.30 | 0.6106 | 503.0 | 379.9 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -17.86 | 160.30 | 26.44 | 225.84 | 0.5930 | 848.0 | 644.7 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -17.88 | 160.02 | 26.16 | 225.51 | 0.5903 | 715.0 | 638.9 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -17.77 | 159.90 | 26.04 | 225.52 | 0.5881 | 849.0 | 728.9 | |
| 0.00 | 3.21 | 0.00 | 1.93 | -17.85 | 157.84 | 23.98 | 223.08 | 0.5685 | -670.0 | -508.7 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -16.11 | 157.47 | 23.61 | 224.89 | 0.5472 | 645.0 | 614.1 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -16.32 | 156.43 | 22.57 | 223.34 | 0.5388 | 746.0 | 612.2 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -16.94 | 156.44 | 22.58 | 222.53 | 0.5455 | 864.0 | 698.4 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -19.41 | 156.33 | 22.47 | 219.36 | 0.5705 | -678.0 | -558.9 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -16.12 | 155.70 | 21.83 | 222.66 | 0.5293 | -415.0 | -371.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -16.04 | 155.55 | 21.69 | 222.57 | 0.5271 | -414.0 | -303.7 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -19.38 | 155.77 | 21.91 | 218.70 | 0.5652 | -637.0 | -538.4 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -16.00 | 154.67 | 20.81 | 221.45 | 0.5179 | -591.0 | -525.7 | |
| 0.00 | 1.87 | 0.00 | 1.08 | -15.89 | 154.46 | 20.59 | 221.31 | 0.5146 | -761.0 | -614.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.05 | 154.41 | 20.55 | 221.02 | 0.5159 | -786.0 | -610.1 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -16.07 | 154.04 | 20.18 | 220.49 | 0.5125 | -883.0 | -632.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
