SDO HMI 2014-09-07 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.17 | 263.52 | 36.29 | 164.80 | -19.78 | 107.22 | -26.64 | 136.31 | 0.6132 | 680.3 | 431.6 | |
|
previous
or next observation for the same group /

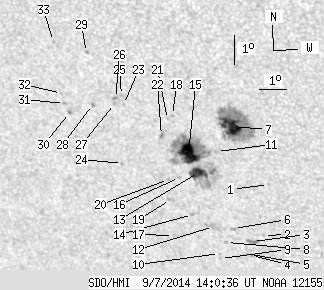

back to the solar disc SDO HMI 2014-09-07 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.61 | -20.74 | 109.42 | -24.44 | 139.85 | 0.6023 | 578.0 | 431.6 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -22.53 | 108.91 | -24.95 | 141.25 | 0.6248 | 634.0 | 471.2 | |
| 0.00 | 4.73 | 0.00 | 3.01 | -22.76 | 108.47 | -25.39 | 141.02 | 0.6309 | 823.0 | 613.0 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -23.25 | 108.33 | -25.53 | 141.40 | 0.6370 | 613.0 | 495.7 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -23.20 | 108.12 | -25.74 | 141.12 | 0.6382 | 401.0 | 411.2 | |
| 0.00 | 1.96 | 0.00 | 1.25 | -22.34 | 107.86 | -26.00 | 139.92 | 0.6320 | 690.0 | 642.5 | |
| 21.77 | 88.68 | 13.36 | 54.33 | -18.84 | 108.43 | -25.43 | 136.48 | 0.5924 | 1012.4 | 513.6 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -22.85 | 107.50 | -26.36 | 140.09 | 0.6401 | 542.0 | 446.0 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -23.43 | 107.15 | -26.71 | 140.36 | 0.6486 | 330.0 | 262.7 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -23.25 | 107.16 | -26.70 | 140.17 | 0.6469 | 405.0 | 371.2 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -19.72 | 107.75 | -26.11 | 136.80 | 0.6075 | -169.0 | -165.2 | |
| 0.00 | 7.14 | 0.00 | 4.58 | -22.32 | 107.14 | -26.72 | 139.13 | 0.6381 | 786.0 | 485.4 | |
| 12.04 | 48.09 | 7.61 | 30.32 | -20.48 | 106.96 | -26.90 | 136.86 | 0.6221 | 790.3 | 375.0 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -21.94 | 106.44 | -27.42 | 138.01 | 0.6406 | 699.0 | 622.5 | |
| 24.36 | 80.47 | 15.32 | 50.57 | -19.85 | 106.72 | -27.14 | 135.86 | 0.6185 | 987.3 | 463.9 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -20.69 | 106.23 | -27.63 | 136.35 | 0.6309 | 728.0 | 572.2 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -22.72 | 105.57 | -28.29 | 138.00 | 0.6556 | 594.0 | 438.6 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -18.59 | 106.37 | -27.49 | 133.98 | 0.6102 | 717.0 | 625.7 | |
| 0.00 | 3.12 | 0.00 | 2.01 | -21.47 | 105.73 | -28.13 | 136.76 | 0.6427 | 490.0 | 333.7 | |
| 0.00 | 1.52 | 0.00 | 0.97 | -20.78 | 105.81 | -28.06 | 136.04 | 0.6357 | 531.0 | 369.2 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -18.74 | 106.16 | -27.70 | 133.95 | 0.6136 | 666.0 | 561.9 | |
| 0.00 | 2.68 | 0.00 | 1.69 | -19.29 | 105.84 | -28.02 | 134.30 | 0.6218 | 764.0 | 568.6 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -18.33 | 104.64 | -29.22 | 131.94 | 0.6252 | 555.0 | 410.6 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -20.34 | 104.20 | -29.66 | 133.96 | 0.6469 | 666.0 | 590.0 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -18.03 | 104.62 | -29.24 | 131.55 | 0.6228 | 702.0 | 574.0 | |
| 0.00 | 2.14 | 0.00 | 1.36 | -18.15 | 104.38 | -29.48 | 131.46 | 0.6263 | 833.0 | 640.4 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -18.32 | 104.31 | -29.55 | 131.61 | 0.6284 | 796.0 | 692.2 | |
| 0.00 | 1.61 | 0.00 | 1.03 | -18.41 | 103.49 | -30.37 | 130.95 | 0.6375 | -694.0 | -554.3 | |
| 0.00 | 1.70 | 0.00 | 1.07 | -16.68 | 103.59 | -30.27 | 128.85 | 0.6223 | -779.0 | -614.9 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -18.74 | 102.57 | -31.30 | 130.53 | 0.6495 | -668.0 | -547.2 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -18.44 | 102.44 | -31.42 | 130.06 | 0.6484 | -601.0 | -518.7 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -18.11 | 102.39 | -31.47 | 129.61 | 0.6462 | -717.0 | -554.9 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -16.39 | 102.43 | -31.43 | 127.44 | 0.6324 | -485.0 | -408.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
