SDO HMI 2014-09-07 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.16 | 83.69 | 17.30 | 142.27 | -16.49 | 64.33 | -69.53 | 109.84 | 0.9556 | 323.3 | -33.9 | |
|
previous
or next observation for the same group /

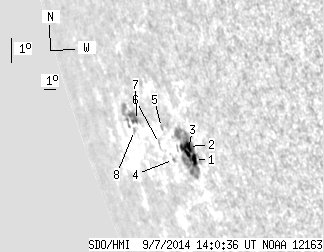

back to the solar disc SDO HMI 2014-09-07 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.64 | 57.10 | 7.10 | 88.74 | -16.81 | 66.18 | -67.69 | 110.59 | 0.9474 | 471.3 | 68.4 | |
| 3.93 | -1.00 | 6.05 | -1.00 | -16.41 | 65.96 | -67.90 | 110.13 | 0.9480 | 554.7 | 999999 | |
| 2.32 | -1.00 | 3.62 | -1.00 | -16.67 | 65.68 | -68.18 | 110.33 | 0.9498 | 155.1 | 999999 | |
| 0.00 | 1.43 | 0.00 | 2.42 | -17.06 | 64.13 | -69.73 | 110.35 | 0.9578 | 107.0 | 69.1 | |
| 0.00 | 1.25 | 0.00 | 2.13 | -16.06 | 63.84 | -70.02 | 109.27 | 0.9580 | 269.0 | 96.4 | |
| 0.00 | 1.96 | 0.00 | 3.50 | -16.66 | 63.15 | -70.72 | 109.73 | 0.9619 | -31.0 | -35.0 | |
| 0.27 | 20.25 | 0.53 | 41.96 | -16.15 | 61.27 | -72.59 | 108.81 | 0.9693 | -566.7 | -195.8 | |
| 0.00 | 1.70 | 0.00 | 3.52 | -16.55 | 60.67 | -73.19 | 109.08 | 0.9721 | -422.0 | -368.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
