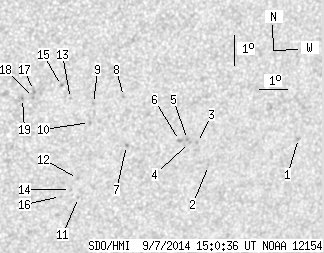

SDO HMI 2014-09-07 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.53 | 0.00 | 14.72 | -17.40 | 157.53 | 24.22 | 223.79 | 0.5664 | 27.5 | 38.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.97 | -17.97 | 164.04 | 30.74 | 229.92 | 0.6376 | 662.0 | 541.6 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -18.66 | 160.89 | 27.58 | 226.02 | 0.6118 | 552.0 | 461.5 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -17.86 | 160.36 | 27.05 | 226.47 | 0.5991 | 842.0 | 642.7 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -17.85 | 160.07 | 26.76 | 226.19 | 0.5961 | 675.0 | 608.6 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -17.74 | 159.98 | 26.67 | 226.23 | 0.5942 | 841.0 | 715.5 | |
| 0.00 | 2.23 | 0.00 | 1.37 | -17.76 | 159.70 | 26.39 | 225.91 | 0.5915 | 845.0 | 640.4 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -17.81 | 157.84 | 24.53 | 223.77 | 0.5736 | -655.0 | -590.3 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -16.18 | 157.51 | 24.20 | 225.51 | 0.5540 | 829.0 | 697.0 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -16.35 | 156.50 | 23.19 | 224.07 | 0.5455 | 804.0 | 678.9 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -16.97 | 156.45 | 23.14 | 223.18 | 0.5513 | 850.0 | 729.3 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -19.48 | 156.42 | 23.11 | 220.06 | 0.5771 | -762.0 | -602.6 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -18.83 | 156.29 | 22.98 | 220.67 | 0.5691 | -613.0 | -549.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -16.14 | 155.69 | 22.38 | 223.33 | 0.5351 | -572.0 | -447.0 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -19.19 | 156.09 | 22.78 | 220.01 | 0.5711 | -630.0 | -640.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -15.70 | 155.33 | 22.03 | 223.47 | 0.5269 | -587.0 | -490.4 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -19.41 | 155.78 | 22.47 | 219.36 | 0.5705 | -539.0 | -436.1 | |
| 0.00 | 3.03 | 0.00 | 1.75 | -15.82 | 154.40 | 21.09 | 222.08 | 0.5187 | -431.0 | -336.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.05 | 154.43 | 21.12 | 221.81 | 0.5215 | -748.0 | -613.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.06 | 154.06 | 20.75 | 221.29 | 0.5180 | -841.0 | -688.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
