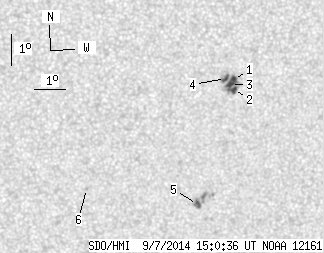

SDO HMI 2014-09-07 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.44 | 34.61 | 8.53 | 19.23 | -14.24 | 149.57 | 16.26 | 217.05 | 0.4544 | 499.0 | -276.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.39 | 19.53 | 1.87 | 10.75 | -12.42 | 150.12 | 16.81 | 220.46 | 0.4370 | 867.9 | 728.1 | |
| 3.48 | -1.00 | 1.92 | -1.00 | -12.74 | 150.14 | 16.83 | 220.02 | 0.4411 | 795.0 | 999999 | |
| 3.75 | -1.00 | 2.06 | -1.00 | -12.58 | 150.03 | 16.72 | 220.08 | 0.4380 | 1036.7 | 999999 | |
| 2.50 | -1.00 | 1.37 | -1.00 | -12.38 | 149.86 | 16.55 | 220.09 | 0.4339 | 1098.0 | 999999 | |
| 2.32 | 13.83 | 1.31 | 7.79 | -16.45 | 149.25 | 15.94 | 213.56 | 0.4784 | -900.0 | -778.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -15.80 | 145.60 | 12.29 | 207.81 | 0.4410 | -855.0 | -708.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
