SDO HMI 2014-09-07 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.41 | 92.77 | 17.82 | 151.55 | -16.56 | 64.25 | -69.06 | 110.03 | 0.9533 | 232.8 | 4.6 | |
|
previous
or next observation for the same group /

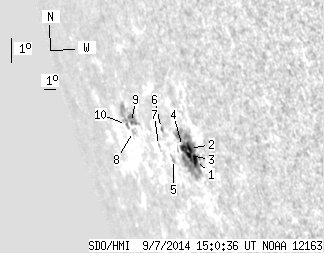

back to the solar disc SDO HMI 2014-09-07 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.19 | 65.74 | 6.23 | 99.19 | -16.80 | 66.23 | -67.08 | 110.73 | 0.9442 | 536.1 | 108.1 | |
| 1.78 | -1.00 | 2.67 | -1.00 | -16.44 | 65.99 | -67.32 | 110.30 | 0.9450 | 654.5 | 999999 | |
| 1.96 | -1.00 | 2.97 | -1.00 | -16.70 | 65.72 | -67.59 | 110.50 | 0.9468 | 180.5 | 999999 | |
| 1.78 | -1.00 | 2.74 | -1.00 | -16.45 | 65.40 | -67.91 | 110.17 | 0.9481 | 121.3 | 999999 | |
| 0.00 | 2.68 | 0.00 | 4.41 | -17.02 | 64.18 | -69.13 | 110.45 | 0.9549 | 113.0 | 50.0 | |
| 0.54 | 1.96 | 0.88 | 3.24 | -16.05 | 63.86 | -69.45 | 109.40 | 0.9553 | 83.5 | 19.9 | |
| 0.00 | 0.89 | 0.00 | 1.55 | -16.70 | 63.06 | -70.25 | 109.87 | 0.9598 | -202.0 | -80.6 | |
| 0.00 | 2.32 | 0.00 | 4.63 | -16.54 | 60.69 | -72.62 | 109.20 | 0.9698 | -449.0 | -402.3 | |
| 0.62 | 19.18 | 1.23 | 38.53 | -16.24 | 60.76 | -72.55 | 108.91 | 0.9692 | -573.1 | -188.0 | |
| 0.54 | -9.00 | 1.10 | -9.00 | -16.39 | 60.07 | -73.24 | 108.92 | 0.9721 | 55.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
