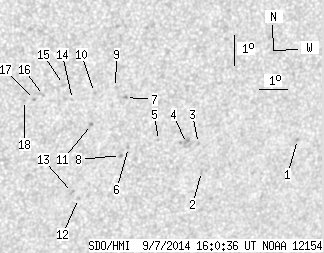

SDO HMI 2014-09-07 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.24 | 0.00 | 15.31 | -17.45 | 157.95 | 25.19 | 224.89 | 0.5767 | -5.7 | 132.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.52 | -17.97 | 164.01 | 31.25 | 230.38 | 0.6429 | 656.0 | 555.8 | |
| 0.00 | 1.61 | 0.00 | 1.01 | -18.81 | 160.65 | 27.89 | 226.15 | 0.6162 | 667.0 | 530.7 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -17.86 | 160.37 | 27.62 | 227.06 | 0.6049 | 717.0 | 565.8 | |
| 0.00 | 6.06 | 0.00 | 3.75 | -17.83 | 159.94 | 27.18 | 226.65 | 0.6003 | 717.0 | 616.0 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -17.67 | 158.92 | 26.16 | 225.77 | 0.5884 | 698.0 | 563.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -17.84 | 157.89 | 25.13 | 224.42 | 0.5798 | -583.0 | -548.6 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -16.17 | 157.55 | 24.79 | 226.20 | 0.5601 | 735.0 | 573.0 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -18.09 | 157.65 | 24.89 | 223.83 | 0.5799 | -548.0 | -481.5 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -15.82 | 157.15 | 24.40 | 226.22 | 0.5526 | 277.0 | 284.9 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -15.95 | 156.45 | 23.69 | 225.21 | 0.5465 | 624.0 | 598.2 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -17.00 | 156.48 | 23.72 | 223.86 | 0.5574 | 779.0 | 684.4 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -19.46 | 156.38 | 23.63 | 220.69 | 0.5817 | -549.0 | -468.1 | |
| 0.00 | 1.87 | 0.00 | 1.13 | -19.25 | 156.14 | 23.38 | 220.66 | 0.5773 | -793.0 | -616.0 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -16.14 | 155.72 | 22.96 | 224.06 | 0.5409 | -495.0 | -506.0 | |
| 0.00 | 1.78 | 0.00 | 1.04 | -15.62 | 155.35 | 22.59 | 224.29 | 0.5319 | -538.0 | -459.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -15.95 | 154.71 | 21.95 | 223.03 | 0.5288 | -713.0 | -602.4 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -16.07 | 154.42 | 21.66 | 222.49 | 0.5271 | -835.0 | -700.2 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -16.08 | 154.08 | 21.32 | 222.03 | 0.5239 | -918.0 | -661.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
