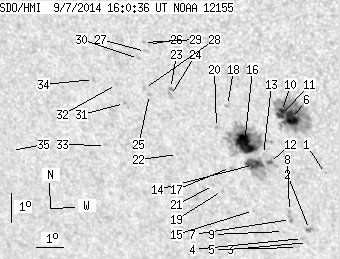

SDO HMI 2014-09-07 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.70 | 244.63 | 33.21 | 151.29 | -19.61 | 107.18 | -25.58 | 137.28 | 0.6016 | 617.4 | 437.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.60 | -20.71 | 109.43 | -23.33 | 141.10 | 0.5921 | 663.0 | 557.3 | |
| 0.00 | 3.57 | 0.00 | 2.25 | -22.69 | 108.50 | -24.25 | 142.20 | 0.6206 | 856.0 | 652.7 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -23.15 | 108.34 | -24.41 | 142.51 | 0.6267 | 646.0 | 497.1 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -23.02 | 108.19 | -24.57 | 142.20 | 0.6267 | 617.0 | 508.3 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -23.35 | 107.94 | -24.82 | 142.28 | 0.6321 | 573.0 | 370.8 | |
| 12.40 | 91.59 | 7.53 | 55.61 | -18.90 | 108.52 | -24.23 | 137.92 | 0.5816 | 1098.8 | 547.1 | |
| 0.00 | 3.30 | 0.00 | 2.08 | -22.38 | 107.88 | -24.88 | 141.17 | 0.6227 | 778.0 | 693.0 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -22.10 | 107.90 | -24.86 | 140.89 | 0.6198 | 580.0 | 580.9 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -22.81 | 107.54 | -25.22 | 141.27 | 0.6300 | 605.0 | 543.5 | |
| 2.59 | -6.00 | 1.57 | -6.00 | -18.68 | 108.21 | -24.55 | 137.29 | 0.5825 | 983.5 | 999999 | |
| 2.41 | -6.00 | 1.47 | -6.00 | -18.82 | 108.15 | -24.61 | 137.39 | 0.5844 | 739.5 | 999999 | |
| 1.07 | 6.15 | 0.67 | 3.82 | -20.44 | 107.49 | -25.27 | 138.57 | 0.6068 | 856.9 | 529.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -20.18 | 107.32 | -25.44 | 138.08 | 0.6057 | 825.0 | 590.8 | |
| 11.42 | 28.36 | 7.14 | 17.76 | -20.54 | 106.93 | -25.83 | 138.08 | 0.6128 | 821.6 | 247.2 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -22.14 | 106.59 | -26.17 | 139.52 | 0.6315 | 484.0 | 430.0 | |
| 23.81 | 82.77 | 14.83 | 51.48 | -19.84 | 106.70 | -26.06 | 137.01 | 0.6082 | 1066.5 | 489.3 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -20.70 | 106.04 | -26.72 | 137.31 | 0.6225 | 507.0 | 371.4 | |
| 0.00 | 2.14 | 0.00 | 1.32 | -18.59 | 106.31 | -26.45 | 135.07 | 0.5999 | 722.0 | 550.4 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -21.51 | 105.59 | -27.17 | 137.77 | 0.6344 | 754.0 | 576.5 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -19.36 | 105.78 | -26.97 | 135.45 | 0.6123 | 808.0 | 726.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -21.36 | 105.29 | -27.47 | 137.29 | 0.6357 | 549.0 | 471.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -20.37 | 104.17 | -28.59 | 135.03 | 0.6370 | 684.0 | 615.2 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -18.14 | 104.34 | -28.41 | 132.49 | 0.6155 | 776.0 | 655.4 | |
| 0.00 | 2.59 | 0.00 | 1.63 | -18.38 | 104.30 | -28.46 | 132.74 | 0.6180 | 812.0 | 668.8 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -18.39 | 103.53 | -29.22 | 132.02 | 0.6258 | -715.0 | -603.4 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -16.72 | 103.80 | -28.96 | 130.13 | 0.6088 | -537.0 | -543.0 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -16.96 | 103.65 | -29.11 | 130.30 | 0.6124 | -614.0 | -485.4 | |
| 0.00 | 1.69 | 0.00 | 1.07 | -18.20 | 103.39 | -29.37 | 131.64 | 0.6257 | -497.0 | -408.5 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -16.66 | 103.62 | -29.13 | 129.90 | 0.6101 | -714.0 | -627.4 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -17.21 | 103.35 | -29.41 | 130.34 | 0.6176 | -624.0 | -536.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -18.76 | 102.54 | -30.21 | 131.54 | 0.6389 | -686.0 | -566.2 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -18.13 | 102.37 | -30.39 | 130.61 | 0.6354 | -719.0 | -613.3 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -20.24 | 101.52 | -31.24 | 132.40 | 0.6612 | -589.0 | -421.8 | |
| 0.00 | 1.69 | 0.00 | 1.09 | -18.02 | 101.54 | -31.22 | 129.72 | 0.6430 | -771.0 | -613.2 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -20.68 | 97.78 | -34.97 | 129.81 | 0.7004 | -525.0 | -379.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
