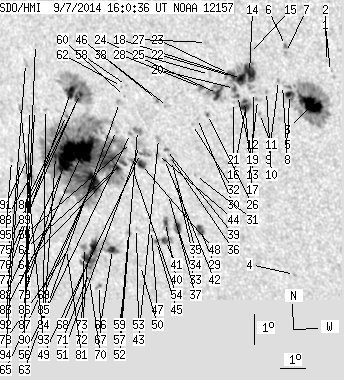

SDO HMI 2014-09-07 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 224.33 | 982.66 | 150.60 | 665.10 | -13.83 | 95.10 | -37.66 | 119.46 | 0.6820 | -79.3 | -215.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.27 | -10.79 | 103.12 | -29.63 | 121.13 | 0.5696 | 524.0 | 616.6 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -10.48 | 103.02 | -29.74 | 120.56 | 0.5687 | 805.0 | 630.3 | |
| 28.54 | 121.47 | 17.44 | 74.21 | -11.89 | 102.32 | -30.44 | 122.08 | 0.5873 | 1088.7 | 367.3 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -17.51 | 100.78 | -31.97 | 128.42 | 0.6468 | -601.0 | -525.1 | |
| 4.10 | -3.00 | 2.52 | -3.00 | -11.62 | 101.56 | -31.20 | 121.05 | 0.5945 | 736.8 | 999999 | |
| 0.54 | 2.32 | 0.33 | 1.41 | -10.07 | 101.60 | -31.16 | 118.76 | 0.5833 | -821.3 | -708.4 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -10.29 | 101.57 | -31.18 | 119.08 | 0.5851 | -841.0 | -646.4 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -11.35 | 101.34 | -31.42 | 120.47 | 0.5952 | 462.0 | 476.9 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -11.20 | 101.21 | -31.54 | 120.15 | 0.5957 | 833.0 | 744.0 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -11.58 | 100.73 | -32.03 | 120.32 | 0.6041 | 640.0 | 523.8 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -12.31 | 100.37 | -32.38 | 121.09 | 0.6133 | 686.0 | 607.9 | |
| 0.00 | 2.94 | 0.00 | 1.84 | -11.86 | 100.36 | -32.39 | 120.44 | 0.6104 | 590.0 | 460.4 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -11.65 | 100.25 | -32.51 | 120.04 | 0.6103 | 842.0 | 639.1 | |
| 12.22 | 80.45 | 7.60 | 50.47 | -11.02 | 100.18 | -32.58 | 119.07 | 0.6069 | 978.5 | 444.5 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -10.41 | 100.26 | -32.50 | 118.24 | 0.6021 | 674.0 | 551.8 | |
| 4.99 | 12.93 | 3.14 | 8.13 | -12.15 | 99.88 | -32.88 | 120.48 | 0.6180 | 734.2 | 552.3 | |
| 1.43 | -16.00 | 0.90 | -16.00 | -11.96 | 99.87 | -32.89 | 120.20 | 0.6168 | 917.2 | 999999 | |
| 8.56 | -14.00 | 5.35 | -14.00 | -11.23 | 99.86 | -32.90 | 119.14 | 0.6122 | 869.3 | 999999 | |
| 0.89 | -14.00 | 0.56 | -14.00 | -11.79 | 99.64 | -33.12 | 119.77 | 0.6184 | 659.2 | 999999 | |
| 1.34 | -14.00 | 0.84 | -14.00 | -11.57 | 99.56 | -33.20 | 119.40 | 0.6180 | 665.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -12.02 | 99.46 | -33.30 | 119.97 | 0.6221 | 434.0 | 317.8 | |
| 3.57 | -14.00 | 2.24 | -14.00 | -11.19 | 99.53 | -33.22 | 118.84 | 0.6158 | 735.5 | 999999 | |
| 0.98 | -14.00 | 0.62 | -14.00 | -11.11 | 99.40 | -33.36 | 118.61 | 0.6169 | 624.2 | 999999 | |
| 5.89 | -14.00 | 3.73 | -14.00 | -11.78 | 98.90 | -33.86 | 119.21 | 0.6271 | 595.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -11.19 | 98.68 | -34.08 | 118.22 | 0.6260 | 486.0 | 381.9 | |
| 0.62 | 1.43 | 0.40 | 0.92 | -12.48 | 98.42 | -34.34 | 119.85 | 0.6372 | 338.9 | 211.1 | |
| 0.00 | 2.23 | 0.00 | 1.40 | -10.17 | 98.70 | -34.05 | 116.77 | 0.6196 | 735.0 | 529.4 | |
| 0.98 | 3.21 | 0.63 | 2.05 | -11.63 | 98.32 | -34.44 | 118.58 | 0.6330 | 308.3 | -24.8 | |
| 4.28 | 6.78 | 2.86 | 4.53 | -16.27 | 97.47 | -35.29 | 124.19 | 0.6727 | 755.8 | 532.0 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -12.64 | 98.02 | -34.74 | 119.78 | 0.6429 | -188.0 | -171.0 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -14.50 | 97.62 | -35.13 | 122.00 | 0.6593 | 531.0 | 512.9 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -12.85 | 97.80 | -34.96 | 119.90 | 0.6468 | 552.0 | 414.5 | |
| 4.82 | 8.83 | 3.25 | 5.96 | -16.27 | 96.57 | -36.18 | 123.54 | 0.6822 | 770.2 | 619.5 | |
| 0.00 | 1.34 | 0.00 | 0.89 | -14.82 | 96.83 | -35.93 | 121.85 | 0.6701 | 451.0 | 287.3 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -14.08 | 96.78 | -35.98 | 120.84 | 0.6660 | 807.0 | 609.7 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -13.92 | 96.73 | -36.03 | 120.60 | 0.6655 | 750.0 | 640.8 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -15.21 | 96.45 | -36.31 | 122.08 | 0.6768 | 152.0 | 226.5 | |
| 0.00 | 2.41 | 0.00 | 1.57 | -12.34 | 96.93 | -35.83 | 118.60 | 0.6536 | -604.0 | -462.0 | |
| 0.62 | 1.96 | 0.41 | 1.30 | -13.74 | 96.65 | -36.11 | 120.30 | 0.6653 | 632.4 | 535.8 | |
| 1.96 | 7.58 | 1.33 | 5.15 | -16.15 | 96.13 | -36.63 | 123.06 | 0.6861 | 534.3 | 379.9 | |
| 3.30 | 11.06 | 2.26 | 7.57 | -16.75 | 96.00 | -36.76 | 123.72 | 0.6913 | 603.7 | 350.7 | |
| 0.36 | 1.61 | 0.24 | 1.07 | -14.07 | 96.51 | -36.25 | 120.64 | 0.6689 | 610.2 | 529.1 | |
| 0.00 | 3.21 | 0.00 | 2.13 | -13.40 | 96.40 | -36.36 | 119.68 | 0.6660 | -50.0 | -40.0 | |
| 0.54 | 2.05 | 0.36 | 1.37 | -13.93 | 96.27 | -36.49 | 120.29 | 0.6707 | 634.3 | 497.6 | |
| 0.98 | -41.00 | 0.67 | -41.00 | -16.81 | 95.63 | -37.13 | 123.54 | 0.6956 | 227.6 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.46 | -12.14 | 96.54 | -36.22 | 118.07 | 0.6570 | -833.0 | -737.2 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -16.46 | 95.51 | -37.25 | 123.02 | 0.6946 | 542.0 | 403.5 | |
| 4.91 | 11.15 | 3.31 | 7.52 | -14.30 | 95.57 | -37.19 | 120.31 | 0.6807 | 710.5 | 440.7 | |
| 0.45 | 6.15 | 0.30 | 4.13 | -13.95 | 95.60 | -37.16 | 119.86 | 0.6783 | 472.2 | 345.2 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -17.67 | 94.78 | -37.98 | 124.02 | 0.7097 | -477.0 | -434.2 | |
| 0.00 | 6.87 | 0.00 | 4.61 | -13.69 | 95.61 | -37.15 | 119.53 | 0.6766 | -388.0 | -348.8 | |
| 0.00 | 4.99 | 0.00 | 3.34 | -13.21 | 95.62 | -37.14 | 118.90 | 0.6737 | -983.0 | -856.0 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -16.44 | 94.92 | -37.84 | 122.59 | 0.7007 | 299.0 | 185.5 | |
| 0.00 | 1.69 | 0.00 | 1.15 | -14.46 | 95.18 | -37.57 | 120.26 | 0.6859 | 442.0 | 365.6 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -13.62 | 95.31 | -37.45 | 119.24 | 0.6795 | -684.0 | -577.3 | |
| 0.00 | 1.69 | 0.00 | 1.14 | -13.33 | 95.33 | -37.43 | 118.87 | 0.6777 | -865.0 | -787.2 | |
| 0.00 | 2.41 | 0.00 | 1.68 | -16.63 | 94.55 | -38.21 | 122.59 | 0.7057 | 634.0 | 409.6 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -11.78 | 95.44 | -37.32 | 116.87 | 0.6676 | 604.0 | 524.0 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -18.23 | 94.02 | -38.73 | 124.18 | 0.7207 | -714.0 | -575.9 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -12.14 | 95.30 | -37.46 | 117.27 | 0.6712 | 175.0 | 125.3 | |
| 2.68 | 480.36 | 1.82 | 334.92 | -14.30 | 94.82 | -37.94 | 119.81 | 0.6889 | 314.6 | -400.1 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -11.83 | 95.23 | -37.52 | 116.81 | 0.6702 | 618.0 | 517.9 | |
| 0.00 | 3.48 | 0.00 | 2.33 | -12.35 | 95.07 | -37.69 | 117.41 | 0.6750 | -723.0 | -629.0 | |
| 1.61 | -61.00 | 1.10 | -61.00 | -14.48 | 94.59 | -38.17 | 119.89 | 0.6925 | 524.6 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.45 | -13.27 | 94.78 | -37.97 | 118.45 | 0.6834 | -741.0 | -738.6 | |
| 5.26 | 50.12 | 3.73 | 35.94 | -17.22 | 93.75 | -39.00 | 122.79 | 0.7174 | -827.3 | -622.8 | |
| 0.54 | 2.68 | 0.39 | 1.95 | -18.49 | 92.88 | -39.88 | 123.75 | 0.7336 | -651.3 | -546.2 | |
| 7.67 | -66.00 | 5.50 | -66.00 | -17.22 | 92.98 | -39.78 | 122.29 | 0.7253 | -903.0 | 999999 | |
| 15.43 | -61.00 | 10.78 | -61.00 | -15.06 | 93.46 | -39.30 | 119.91 | 0.7079 | 483.8 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.24 | -18.32 | 92.51 | -40.25 | 123.32 | 0.7363 | -479.0 | -456.0 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -18.08 | 92.58 | -40.18 | 123.07 | 0.7342 | -617.0 | -559.5 | |
| 4.82 | -66.00 | 3.49 | -66.00 | -17.65 | 92.61 | -40.14 | 122.58 | 0.7314 | -802.4 | 999999 | |
| 0.00 | 3.21 | 0.00 | 2.32 | -17.25 | 92.59 | -40.16 | 122.09 | 0.7293 | -480.0 | -446.6 | |
| 37.10 | -61.00 | 25.79 | -61.00 | -14.04 | 93.32 | -39.44 | 118.53 | 0.7038 | -1147.7 | 999999 | |
| 1.78 | 66.71 | 1.22 | 45.67 | -12.19 | 93.55 | -39.20 | 116.27 | 0.6913 | -1140.0 | -495.7 | |
| 2.85 | -75.00 | 1.96 | -75.00 | -12.36 | 93.40 | -39.36 | 116.40 | 0.6939 | -943.0 | 999999 | |
| 7.67 | -75.00 | 5.27 | -75.00 | -12.19 | 93.15 | -39.61 | 116.03 | 0.6958 | -792.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -17.31 | 91.95 | -40.80 | 121.76 | 0.7361 | -294.0 | -256.3 | |
| 23.63 | -61.00 | 16.62 | -61.00 | -14.16 | 92.64 | -40.12 | 118.27 | 0.7118 | -906.1 | 999999 | |
| 0.36 | 2.50 | 0.25 | 1.73 | -12.95 | 92.85 | -39.91 | 116.85 | 0.7031 | -553.2 | -514.0 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -17.39 | 91.81 | -40.95 | 121.77 | 0.7380 | -367.0 | -317.3 | |
| 13.65 | -61.00 | 9.66 | -61.00 | -14.59 | 92.42 | -40.34 | 118.70 | 0.7164 | -861.1 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.54 | -15.73 | 92.03 | -40.73 | 119.88 | 0.7267 | -188.0 | -141.0 | |
| 1.25 | -61.00 | 0.89 | -61.00 | -14.33 | 92.11 | -40.65 | 118.18 | 0.7184 | -589.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -12.83 | 92.01 | -40.74 | 116.22 | 0.7117 | -604.0 | -441.7 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -10.76 | 91.98 | -40.77 | 113.51 | 0.7020 | -569.0 | -458.2 | |
| 0.00 | 2.05 | 0.00 | 1.45 | -12.90 | 91.55 | -41.21 | 116.05 | 0.7171 | -619.0 | -522.6 | |
| 0.80 | 8.21 | 0.58 | 5.98 | -15.08 | 90.89 | -41.87 | 118.42 | 0.7350 | -617.1 | -272.7 | |
| 0.00 | 2.59 | 0.00 | 1.88 | -14.82 | 90.96 | -41.80 | 118.13 | 0.7330 | -720.0 | -588.0 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -12.92 | 91.34 | -41.42 | 115.96 | 0.7195 | -420.0 | -393.7 | |
| 0.36 | 2.14 | 0.26 | 1.55 | -14.50 | 90.90 | -41.85 | 117.71 | 0.7319 | -806.0 | -620.0 | |
| 0.00 | 2.94 | 0.00 | 2.07 | -11.41 | 91.46 | -41.30 | 114.08 | 0.7109 | -629.0 | -539.8 | |
| 0.00 | 2.68 | 0.00 | 1.91 | -12.85 | 90.98 | -41.78 | 115.68 | 0.7231 | -398.0 | -381.9 | |
| 0.00 | 2.59 | 0.00 | 1.89 | -14.66 | 90.53 | -42.23 | 117.70 | 0.7367 | -489.0 | -387.9 | |
| 0.00 | 1.34 | 0.00 | 0.98 | -14.62 | 90.20 | -42.56 | 117.47 | 0.7399 | -458.0 | -350.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
