SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.77 | 0.00 | 15.74 | -17.62 | 158.19 | 25.99 | 225.51 | 0.5862 | 159.5 | 101.4 | |
|
previous
or next observation for the same group /

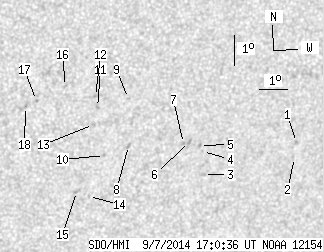

back to the solar disc SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 1.10 | -18.04 | 163.95 | 31.75 | 230.73 | 0.6486 | 695.0 | 548.5 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -18.54 | 163.98 | 31.78 | 230.13 | 0.6528 | 382.0 | 318.0 | |
| 0.00 | 1.78 | 0.00 | 1.13 | -18.88 | 160.69 | 28.48 | 226.66 | 0.6227 | 714.0 | 540.8 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -18.10 | 160.51 | 28.30 | 227.45 | 0.6140 | 686.0 | 469.6 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -17.89 | 160.36 | 28.16 | 227.57 | 0.6107 | 430.0 | 468.3 | |
| 0.00 | 2.05 | 0.00 | 1.27 | -17.73 | 159.98 | 27.77 | 227.38 | 0.6054 | 797.0 | 675.0 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.79 | 159.77 | 27.57 | 227.10 | 0.6038 | 714.0 | 496.8 | |
| 0.00 | 1.96 | 0.00 | 1.19 | -17.73 | 157.81 | 25.60 | 225.08 | 0.5835 | -417.0 | -465.8 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -16.17 | 157.58 | 25.38 | 226.87 | 0.5662 | 645.0 | 585.8 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -18.02 | 157.01 | 24.80 | 223.82 | 0.5784 | -792.0 | -624.2 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -16.40 | 156.54 | 24.33 | 225.36 | 0.5577 | 794.0 | 578.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -16.04 | 156.42 | 24.22 | 225.71 | 0.5528 | 920.0 | 797.1 | |
| 0.00 | 1.69 | 0.00 | 1.01 | -16.96 | 156.47 | 24.27 | 224.55 | 0.5625 | 725.0 | 585.8 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -19.37 | 156.66 | 24.45 | 221.76 | 0.5885 | -509.0 | -385.8 | |
| 0.00 | 2.68 | 0.00 | 1.63 | -19.18 | 156.21 | 24.00 | 221.47 | 0.5823 | -772.0 | -587.4 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -15.65 | 155.34 | 23.14 | 224.93 | 0.5378 | -718.0 | -481.9 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -16.06 | 154.40 | 22.20 | 223.20 | 0.5324 | -724.0 | -608.8 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -16.24 | 154.05 | 21.85 | 222.51 | 0.5308 | -699.0 | -579.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
