SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 160.51 | 955.46 | 112.55 | 671.72 | 15.23 | 86.90 | -45.31 | 75.67 | 0.7103 | 316.7 | -102.1 | |
|
previous
or next observation for the same group /

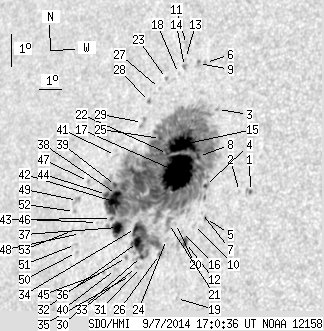

back to the solar disc SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 2.76 | 0.29 | 1.83 | 15.16 | 90.68 | -41.52 | 75.26 | 0.6639 | -823.2 | -602.7 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 15.12 | 90.23 | -41.98 | 75.39 | 0.6695 | -188.0 | -221.6 | |
| 0.00 | 1.34 | 0.00 | 0.92 | 17.52 | 88.63 | -43.57 | 72.16 | 0.6928 | 766.0 | 677.0 | |
| 1.25 | 880.54 | 0.85 | 618.78 | 15.18 | 88.76 | -43.45 | 75.51 | 0.6878 | 722.9 | -109.2 | |
| 0.00 | 1.61 | 0.00 | 1.09 | 14.19 | 89.00 | -43.20 | 76.93 | 0.6836 | 550.0 | 473.6 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 18.91 | 87.66 | -44.54 | 70.39 | 0.7068 | 510.0 | 507.5 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 14.36 | 88.79 | -43.41 | 76.71 | 0.6864 | 285.0 | 304.0 | |
| 1.87 | -4.00 | 1.29 | -4.00 | 16.03 | 88.23 | -43.98 | 74.36 | 0.6953 | 1124.6 | 999999 | |
| 0.00 | 3.12 | 0.00 | 2.19 | 18.85 | 87.36 | -44.84 | 70.53 | 0.7101 | 598.0 | 583.7 | |
| 0.00 | 2.05 | 0.00 | 1.40 | 13.94 | 88.55 | -43.66 | 77.35 | 0.6890 | -280.0 | -146.7 | |
| 0.00 | 3.66 | 0.00 | 2.60 | 19.38 | 86.63 | -45.57 | 69.94 | 0.7195 | 552.0 | 407.8 | |
| 2.32 | 9.54 | 1.59 | 6.54 | 13.40 | 88.33 | -43.88 | 78.15 | 0.6912 | 624.2 | 59.7 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 18.95 | 86.74 | -45.47 | 70.52 | 0.7175 | 421.0 | 306.4 | |
| 0.00 | 2.41 | 0.00 | 1.70 | 18.70 | 86.78 | -45.43 | 70.85 | 0.7166 | 629.0 | 554.0 | |
| 31.57 | -4.00 | 21.99 | -4.00 | 16.34 | 87.44 | -44.77 | 74.05 | 0.7052 | 969.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 13.72 | 88.12 | -44.08 | 77.71 | 0.6940 | 302.0 | 193.1 | |
| 78.65 | -4.00 | 54.66 | -4.00 | 15.48 | 87.50 | -44.70 | 75.26 | 0.7033 | 945.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 18.47 | 86.58 | -45.62 | 71.21 | 0.7184 | 461.0 | 369.8 | |
| 0.00 | 0.71 | 0.00 | 0.49 | 11.68 | 88.31 | -43.90 | 80.64 | 0.6905 | -641.0 | -580.6 | |
| 0.00 | 1.25 | 0.00 | 0.86 | 13.93 | 87.77 | -44.44 | 77.43 | 0.6985 | 511.0 | 370.2 | |
| 0.00 | 7.40 | 0.00 | 5.13 | 13.91 | 87.47 | -44.74 | 77.50 | 0.7021 | -296.0 | -292.0 | |
| 2.76 | -4.00 | 1.94 | -4.00 | 16.01 | 86.86 | -45.34 | 74.59 | 0.7116 | 467.4 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.34 | 18.27 | 86.10 | -46.10 | 71.57 | 0.7236 | 561.0 | 398.9 | |
| 0.00 | 2.05 | 0.00 | 1.42 | 13.42 | 87.50 | -44.71 | 78.19 | 0.7014 | -272.0 | -274.1 | |
| 1.25 | -4.00 | 0.88 | -4.00 | 16.44 | 86.42 | -45.79 | 74.06 | 0.7173 | 215.0 | 999999 | |
| 0.62 | -4.00 | 0.43 | -4.00 | 12.94 | 87.30 | -44.91 | 78.89 | 0.7035 | -879.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 17.94 | 85.89 | -46.31 | 72.06 | 0.7254 | 534.0 | 455.7 | |
| 0.45 | 1.78 | 0.32 | 1.29 | 17.51 | 85.57 | -46.63 | 72.70 | 0.7284 | 613.4 | 493.1 | |
| 0.00 | 4.73 | 0.00 | 3.41 | 16.85 | 85.47 | -46.74 | 73.62 | 0.7288 | 632.0 | 390.5 | |
| 1.52 | -4.00 | 1.07 | -4.00 | 12.81 | 86.53 | -45.67 | 79.12 | 0.7126 | -880.8 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.13 | 12.48 | 86.56 | -45.64 | 79.59 | 0.7121 | -690.0 | -524.2 | |
| 6.33 | -4.00 | 4.48 | -4.00 | 13.22 | 86.26 | -45.95 | 78.57 | 0.7161 | -1076.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.88 | 12.46 | 86.39 | -45.81 | 79.62 | 0.7142 | -713.0 | -603.0 | |
| 2.59 | -4.00 | 1.84 | -4.00 | 13.63 | 86.07 | -46.14 | 78.00 | 0.7187 | -854.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 12.20 | 86.18 | -46.02 | 79.99 | 0.7165 | -462.0 | -382.5 | |
| 0.00 | 1.61 | 0.00 | 1.14 | 12.73 | 85.88 | -46.32 | 79.28 | 0.7203 | -539.0 | -461.6 | |
| 9.81 | -4.00 | 7.06 | -4.00 | 13.59 | 85.26 | -46.94 | 78.12 | 0.7281 | -883.4 | 999999 | |
| 4.90 | -4.00 | 3.56 | -4.00 | 14.58 | 84.95 | -47.26 | 76.79 | 0.7324 | -1032.3 | 999999 | |
| 1.69 | -4.00 | 1.23 | -4.00 | 14.84 | 84.83 | -47.38 | 76.44 | 0.7340 | -711.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.15 | 12.32 | 85.48 | -46.73 | 79.86 | 0.7249 | -356.0 | -299.8 | |
| 0.00 | 1.16 | 0.00 | 0.85 | 15.74 | 84.56 | -47.65 | 75.24 | 0.7379 | -599.0 | -555.5 | |
| 9.36 | -4.00 | 6.79 | -4.00 | 14.35 | 84.87 | -47.33 | 77.10 | 0.7331 | -978.5 | 999999 | |
| 0.89 | -4.00 | 0.65 | -4.00 | 13.84 | 84.92 | -47.28 | 77.80 | 0.7322 | -830.0 | 999999 | |
| 2.23 | -4.00 | 1.63 | -4.00 | 14.54 | 84.50 | -47.71 | 76.88 | 0.7375 | -495.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.10 | 12.18 | 84.97 | -47.24 | 80.07 | 0.7309 | -479.0 | -297.7 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 13.66 | 84.32 | -47.88 | 78.09 | 0.7390 | -459.0 | -428.9 | |
| 0.00 | 1.34 | 0.00 | 1.00 | 14.85 | 83.56 | -48.65 | 76.53 | 0.7484 | -578.0 | -506.1 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 13.26 | 83.63 | -48.57 | 78.66 | 0.7466 | -495.0 | -501.0 | |
| 0.00 | 4.55 | 0.00 | 3.40 | 14.23 | 83.22 | -48.99 | 77.38 | 0.7518 | -501.0 | -336.6 | |
| 0.00 | 1.25 | 0.00 | 0.93 | 12.67 | 83.60 | -48.61 | 79.45 | 0.7468 | -636.0 | -466.4 | |
| 0.00 | 1.69 | 0.00 | 1.26 | 12.91 | 83.49 | -48.72 | 79.14 | 0.7481 | -517.0 | -419.6 | |
| 0.00 | 1.43 | 0.00 | 1.07 | 13.89 | 83.17 | -49.03 | 77.84 | 0.7521 | -402.0 | -358.2 | |
| 0.00 | 1.43 | 0.00 | 1.07 | 13.31 | 83.24 | -48.97 | 78.61 | 0.7511 | -373.0 | -292.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
