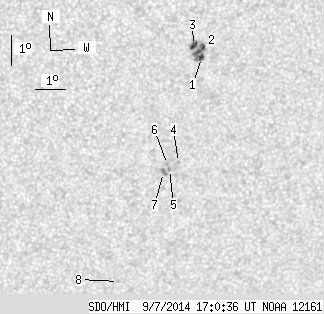

SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.94 | 27.55 | 4.39 | 15.37 | -13.63 | 149.82 | 17.62 | 220.15 | 0.4600 | 4.6 | 215.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 20.42 | 1.14 | 11.31 | -12.72 | 150.20 | 18.00 | 221.95 | 0.4527 | 782.3 | 785.2 | |
| 2.59 | -1.00 | 1.43 | -1.00 | -12.55 | 150.06 | 17.85 | 221.98 | 0.4493 | 1096.0 | 999999 | |
| 3.30 | -1.00 | 1.82 | -1.00 | -12.32 | 149.91 | 17.71 | 222.09 | 0.4452 | 1078.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.10 | 149.72 | 17.52 | 216.51 | 0.4881 | -882.0 | -724.9 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -16.32 | 149.45 | 17.24 | 215.80 | 0.4882 | -926.0 | -757.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.16 | 149.37 | 17.16 | 215.89 | 0.4855 | -958.0 | -831.1 | |
| 0.00 | 3.12 | 0.00 | 1.77 | -16.41 | 149.26 | 17.05 | 215.39 | 0.4877 | -972.0 | -829.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -20.01 | 148.11 | 15.91 | 209.60 | 0.5235 | -641.0 | -472.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
