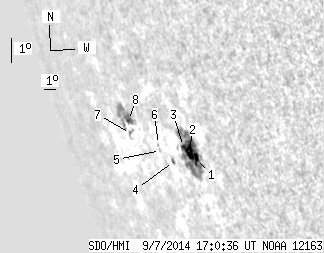

SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.38 | 97.57 | 25.27 | 151.60 | -16.48 | 64.23 | -67.98 | 110.20 | 0.9478 | 322.3 | -23.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.46 | 68.67 | 6.28 | 98.24 | -16.72 | 66.32 | -65.89 | 110.95 | 0.9376 | 632.1 | 95.1 | |
| 9.54 | -1.00 | 13.65 | -1.00 | -16.54 | 65.89 | -66.32 | 110.66 | 0.9397 | 431.7 | 999999 | |
| 1.87 | -1.00 | 2.72 | -1.00 | -16.43 | 65.48 | -66.72 | 110.44 | 0.9418 | 138.0 | 999999 | |
| 0.62 | 1.61 | 0.97 | 2.50 | -17.07 | 64.18 | -68.02 | 110.78 | 0.9495 | 86.9 | 36.8 | |
| 0.00 | 1.07 | 0.00 | 1.75 | -16.83 | 63.24 | -68.97 | 110.30 | 0.9539 | 17.0 | -72.3 | |
| 0.00 | 0.62 | 0.00 | 1.02 | -16.64 | 63.21 | -68.99 | 110.10 | 0.9538 | 95.0 | -9.7 | |
| 0.00 | 3.75 | 0.00 | 7.02 | -16.61 | 60.59 | -71.62 | 109.48 | 0.9658 | -404.0 | -367.5 | |
| 0.89 | 21.85 | 1.65 | 41.07 | -16.16 | 60.78 | -71.42 | 109.07 | 0.9645 | -557.2 | -188.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
