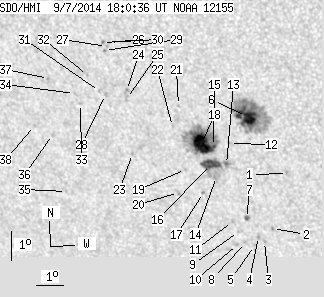

SDO HMI 2014-09-07 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.48 | 234.88 | 36.40 | 143.97 | -19.62 | 107.18 | -24.47 | 138.54 | 0.5913 | 605.0 | 419.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.19 | -20.71 | 109.58 | -22.07 | 142.63 | 0.5812 | 649.0 | 583.5 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -22.64 | 108.73 | -22.92 | 143.69 | 0.6092 | 768.0 | 619.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -23.12 | 108.36 | -23.29 | 143.75 | 0.6173 | 726.0 | 580.8 | |
| 0.00 | 1.78 | 0.00 | 1.12 | -22.95 | 108.18 | -23.48 | 143.37 | 0.6171 | 662.0 | 547.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -23.28 | 107.97 | -23.68 | 143.47 | 0.6221 | 598.0 | 418.4 | |
| 21.85 | 92.56 | 13.16 | 55.69 | -18.84 | 108.44 | -23.21 | 139.06 | 0.5714 | 1064.9 | 491.4 | |
| 0.98 | 2.85 | 0.61 | 1.78 | -22.34 | 107.86 | -23.79 | 142.36 | 0.6133 | 882.3 | 710.3 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -23.19 | 107.66 | -23.99 | 143.03 | 0.6237 | 624.0 | 536.0 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -22.82 | 107.48 | -24.17 | 142.44 | 0.6213 | 600.0 | 529.9 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -23.28 | 107.36 | -24.29 | 142.78 | 0.6271 | 543.0 | 395.3 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -22.48 | 107.33 | -24.32 | 141.91 | 0.6191 | 705.0 | 589.8 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -19.79 | 107.70 | -23.95 | 139.31 | 0.5881 | -475.0 | -190.4 | |
| 0.00 | 4.19 | 0.00 | 2.58 | -20.51 | 107.47 | -24.18 | 139.89 | 0.5976 | 808.0 | 713.1 | |
| 0.00 | 5.53 | 0.00 | 3.44 | -20.94 | 107.04 | -24.61 | 139.89 | 0.6059 | 158.0 | 64.1 | |
| 0.27 | 72.50 | 0.16 | 44.68 | -19.92 | 107.11 | -24.54 | 138.79 | 0.5949 | 999.7 | 560.5 | |
| 11.50 | 18.99 | 7.13 | 11.78 | -20.54 | 106.90 | -24.75 | 139.27 | 0.6031 | 837.0 | 412.9 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -21.52 | 106.47 | -25.18 | 139.91 | 0.6168 | 725.0 | 562.2 | |
| 24.88 | -15.00 | 15.34 | -15.00 | -19.84 | 106.70 | -24.95 | 138.23 | 0.5979 | 1135.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -20.77 | 105.97 | -25.69 | 138.49 | 0.6138 | 671.0 | 571.2 | |
| 0.00 | 2.50 | 0.00 | 1.58 | -21.58 | 105.56 | -26.09 | 138.98 | 0.6254 | 586.0 | 395.6 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -18.60 | 106.09 | -25.56 | 136.05 | 0.5914 | 439.0 | 444.3 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -19.32 | 105.76 | -25.89 | 136.57 | 0.6016 | 721.0 | 599.3 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -20.33 | 104.13 | -27.52 | 136.06 | 0.6266 | 698.0 | 585.7 | |
| 0.00 | 2.59 | 0.00 | 1.61 | -18.20 | 104.31 | -27.34 | 133.65 | 0.6053 | 785.0 | 669.9 | |
| 0.00 | 2.05 | 0.00 | 1.28 | -18.47 | 104.26 | -27.39 | 133.94 | 0.6082 | 679.0 | 661.9 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -16.63 | 103.96 | -27.69 | 131.28 | 0.5947 | -615.0 | -549.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -16.77 | 103.83 | -27.82 | 131.34 | 0.5973 | -774.0 | -586.1 | |
| 0.00 | 2.05 | 0.00 | 1.29 | -18.38 | 103.52 | -28.13 | 133.08 | 0.6148 | -784.0 | -475.2 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -16.91 | 103.74 | -27.91 | 131.42 | 0.5995 | -670.0 | -577.8 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -16.65 | 103.71 | -27.94 | 131.05 | 0.5975 | -805.0 | -709.7 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -18.29 | 103.32 | -28.33 | 132.77 | 0.6161 | -590.0 | -540.7 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.78 | 102.98 | -28.67 | 131.79 | 0.6150 | -542.0 | -424.7 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -18.74 | 102.55 | -29.11 | 132.57 | 0.6277 | -590.0 | -462.4 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -18.42 | 102.39 | -29.26 | 132.02 | 0.6265 | -637.0 | -523.9 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -21.80 | 101.37 | -30.28 | 135.09 | 0.6654 | -382.0 | -346.8 | |
| 0.00 | 1.61 | 0.00 | 1.04 | -19.87 | 101.28 | -30.37 | 132.75 | 0.6498 | -580.0 | -546.0 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -17.98 | 101.52 | -30.13 | 130.65 | 0.6316 | -736.0 | -660.2 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -19.61 | 100.67 | -30.99 | 131.88 | 0.6536 | -473.0 | -371.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
