SDO HMI 2014-09-07 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.24 | 99.61 | 29.16 | 150.66 | -16.48 | 64.27 | -67.38 | 110.35 | 0.9447 | 264.4 | -10.4 | |
|
previous
or next observation for the same group /

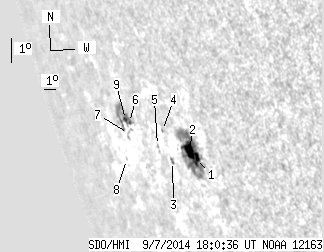

back to the solar disc SDO HMI 2014-09-07 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.44 | 69.46 | 7.48 | 96.92 | -16.72 | 66.31 | -65.34 | 111.09 | 0.9345 | 619.4 | 78.6 | |
| 12.22 | -1.00 | 17.06 | -1.00 | -16.51 | 65.91 | -65.74 | 110.77 | 0.9364 | 428.2 | 999999 | |
| 0.00 | 2.14 | 0.00 | 3.26 | -17.07 | 64.14 | -67.51 | 110.91 | 0.9469 | 206.0 | 52.0 | |
| 0.00 | 0.98 | 0.00 | 1.48 | -16.08 | 64.03 | -67.62 | 109.86 | 0.9461 | 128.0 | 125.5 | |
| 0.00 | 1.25 | 0.00 | 1.98 | -16.67 | 63.17 | -68.49 | 110.26 | 0.9513 | -100.0 | -71.8 | |
| 0.80 | 21.76 | 1.41 | 39.68 | -16.20 | 60.99 | -70.66 | 109.27 | 0.9612 | -604.8 | -133.1 | |
| 0.00 | 3.75 | 0.00 | 6.81 | -16.61 | 60.54 | -71.11 | 109.59 | 0.9636 | -448.0 | -363.5 | |
| 0.00 | 0.27 | 0.00 | 0.53 | -17.59 | 59.40 | -72.25 | 110.33 | 0.9693 | 33.0 | -54.3 | |
| 1.78 | -6.00 | 3.21 | -6.00 | -16.14 | 60.65 | -71.00 | 109.14 | 0.9626 | -583.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
