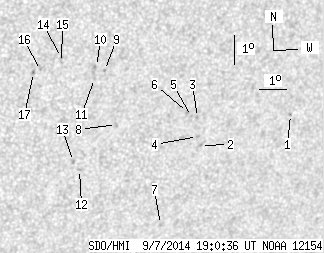

SDO HMI 2014-09-07 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.90 | 0.00 | 11.69 | -17.87 | 158.12 | 27.02 | 226.34 | 0.5989 | 124.4 | 74.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.59 | -18.07 | 163.95 | 32.85 | 231.61 | 0.6602 | 667.0 | 615.0 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -18.88 | 160.75 | 29.65 | 227.78 | 0.6344 | 622.0 | 526.0 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -17.93 | 160.46 | 29.36 | 228.69 | 0.6234 | 845.0 | 636.1 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -18.57 | 160.58 | 29.48 | 228.00 | 0.6300 | 604.0 | 558.1 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -17.88 | 160.24 | 29.14 | 228.53 | 0.6206 | 734.0 | 620.2 | |
| 0.00 | 1.43 | 0.00 | 0.90 | -17.74 | 160.06 | 28.97 | 228.55 | 0.6176 | 816.0 | 702.8 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -21.50 | 159.81 | 28.71 | 223.78 | 0.6483 | 233.0 | 329.0 | |
| 0.00 | 2.23 | 0.00 | 1.37 | -17.98 | 157.56 | 26.46 | 225.69 | 0.5944 | -290.0 | -287.0 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -16.15 | 156.86 | 25.76 | 227.31 | 0.5701 | 751.0 | 648.8 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -16.00 | 156.56 | 25.46 | 227.18 | 0.5656 | 733.0 | 712.6 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -16.39 | 156.54 | 25.44 | 226.63 | 0.5691 | 666.0 | 473.0 | |
| 0.00 | 1.87 | 0.00 | 1.15 | -19.42 | 156.48 | 25.38 | 222.75 | 0.5978 | -559.0 | -479.0 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -19.13 | 156.22 | 25.12 | 222.80 | 0.5925 | -851.0 | -739.6 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -15.64 | 155.30 | 24.20 | 226.23 | 0.5488 | -748.0 | -565.9 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -15.80 | 155.32 | 24.22 | 226.03 | 0.5506 | -658.0 | -524.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -16.02 | 154.63 | 23.53 | 224.90 | 0.5457 | -633.0 | -593.4 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -16.08 | 154.39 | 23.29 | 224.54 | 0.5438 | -817.0 | -707.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
